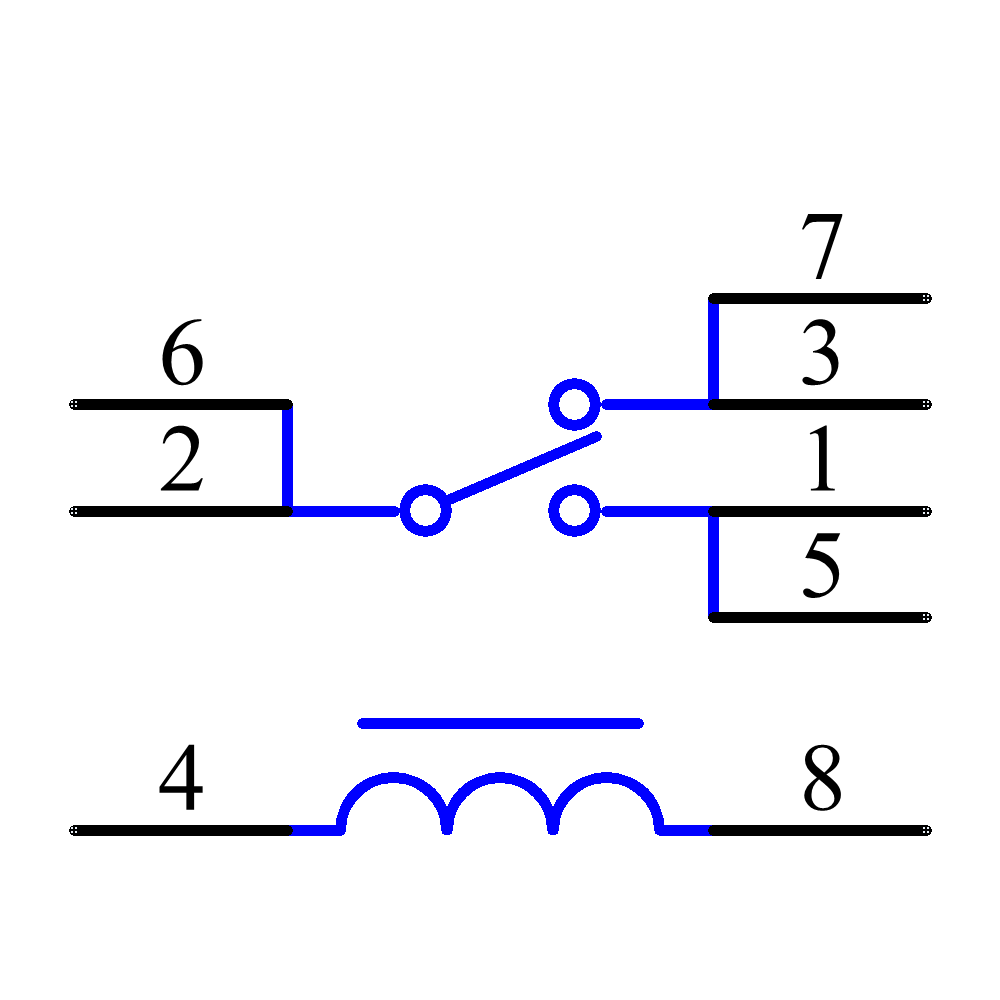

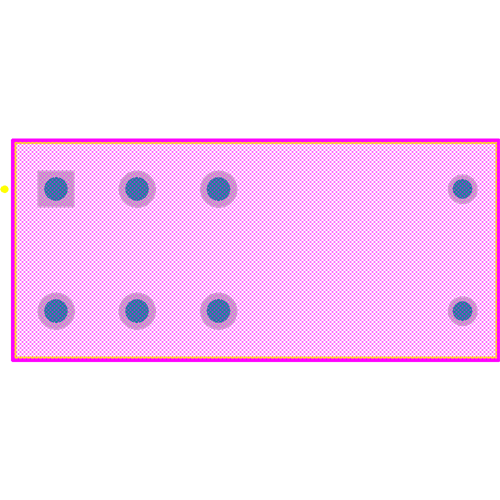

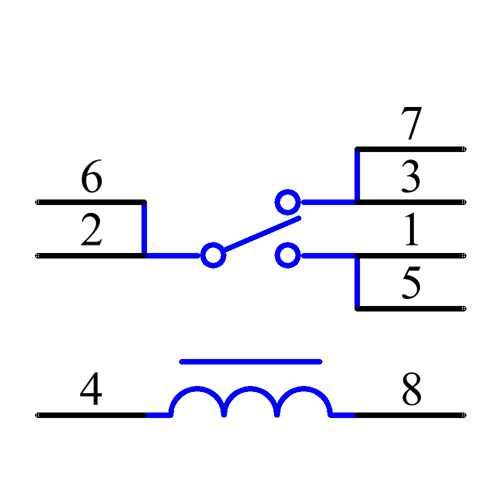

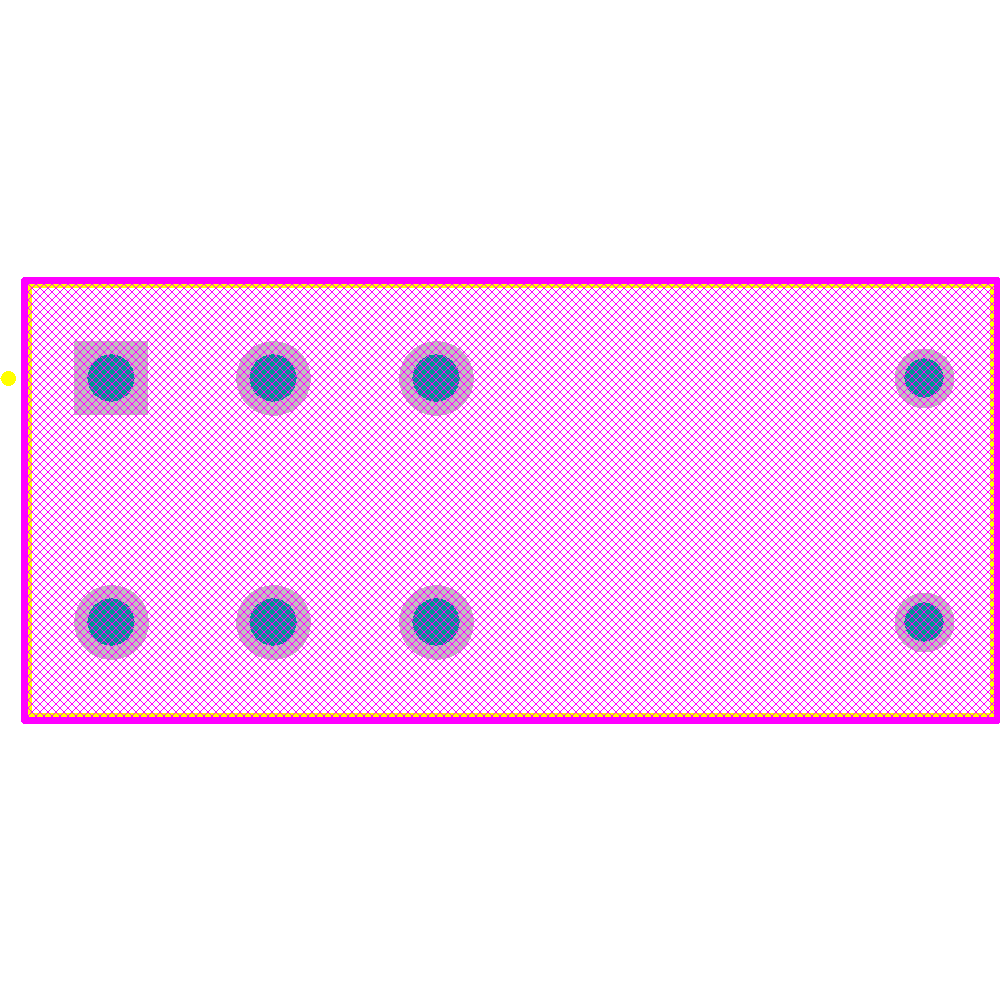

1649399-6 - TE Connectivity
Electromechanical Relay 24VDC 16(NO)/8(NC)A SPDT(29.2x12.8x20.6)mm THT General Purpose Relay
Technical Details
| Ambient Temperature Range High | 70°C |
| Case/Package | DIP |
| China RoHS | Compliant |
| Coil Current | 23mA |
| Coil Power | 540mW |
| Coil Resistance | 1.1kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 18V |
| Contact Current Rating | 16A |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 16A |
| Depth | 12.8mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 20.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.50 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2010-09-24 |
| Length | 29.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 16A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -30°C |
| Number of Contacts | 1 |
| Number of Pins | 8 |
| Packaging | Box |
| REACH SVHC | Yes |
| Release Time | 8ms |
| Response Time | 20ms |
| RoHS | Compliant |
| Schedule B | 8536410050, 8536410050|8536410050|8536410050|8536410050|8536410050 |
| Sealable | RT2 |
| Switching Current | 16A |
| Termination | PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 240V |
| Weight | 13g |
| Width | 12.8mm |
