2-1393225-9 - TE Connectivity

Miniature Power PCB Electromechanical Relay SPDT-CO 8A 24VDC 2350Ohm Through Hole

Technical Details

Ambient Temperature Range High	70°C
China RoHS	Compliant
Coil Current	9mA
Coil Power	220mW
Coil Resistance	2.35kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	16.8V
Contact Current Rating	8A
Contact Material	Silver
Contact Plating	Gold
Contact Voltage Rating (AC)	250V
Country of Origin	Mexico
Current Rating	8A
Depth	10.1mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	30kcycles
Height	12.3mm
Introduction Date	2005-06-08
Lead Free	Lead Free
Length	28.5mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	8A
Max Operating Temperature	70°C
Max Voltage Rating (AC)	400V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	5
Number of Terminals	5
Operate Time	9ms
Radiation Hardening	No
REACH SVHC	Yes
Release Time	3ms
Response Time	7ms
RoHS	Compliant
Sealable	RT3
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	400V
Weight	8g
Width	12.6mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 2-1393225-9 | Farnell

Farnell

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

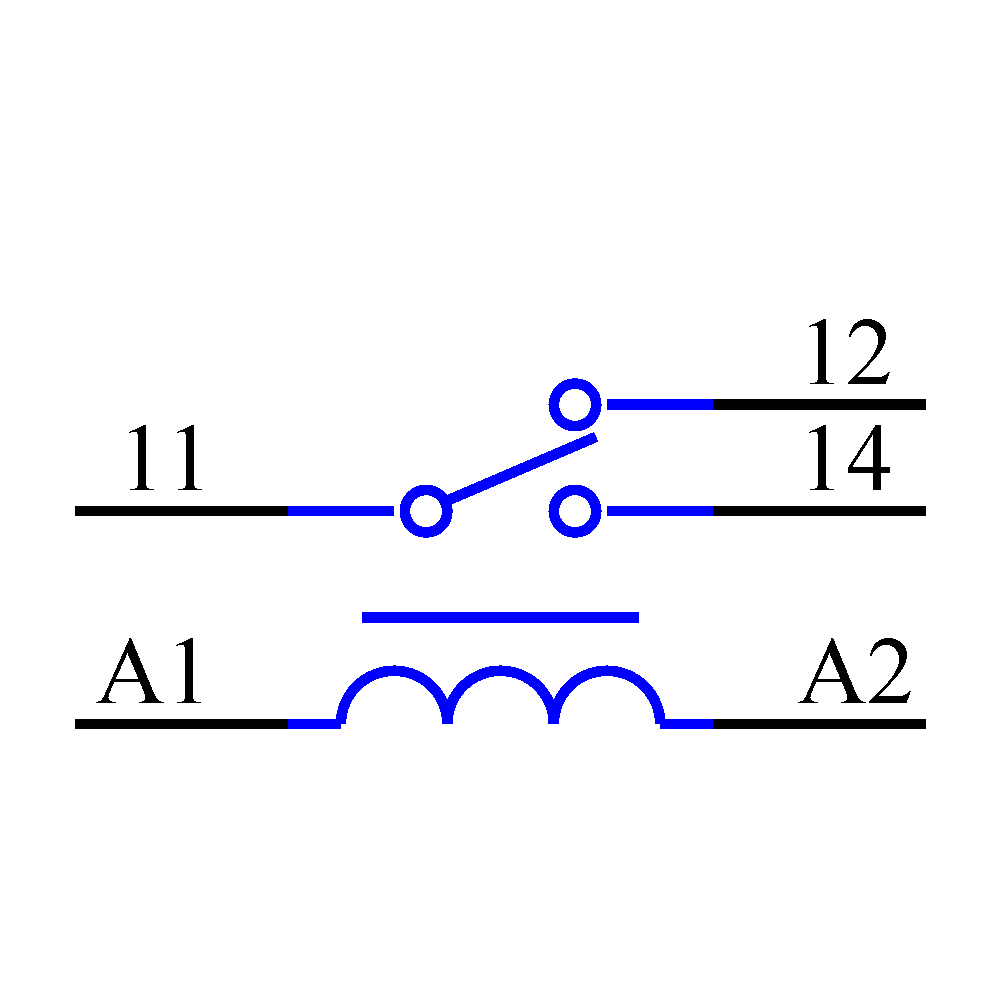

2-1393225-9 Symbol - TE Connectivity

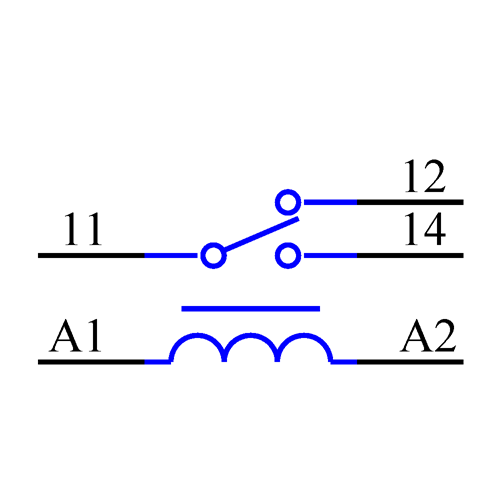

2-1393225-9 Symbol - TE Connectivity

2-1393225-9 Symbol - TE Connectivity

2-1393225-9 Symbol - TE Connectivity

‹ ›

Footprint

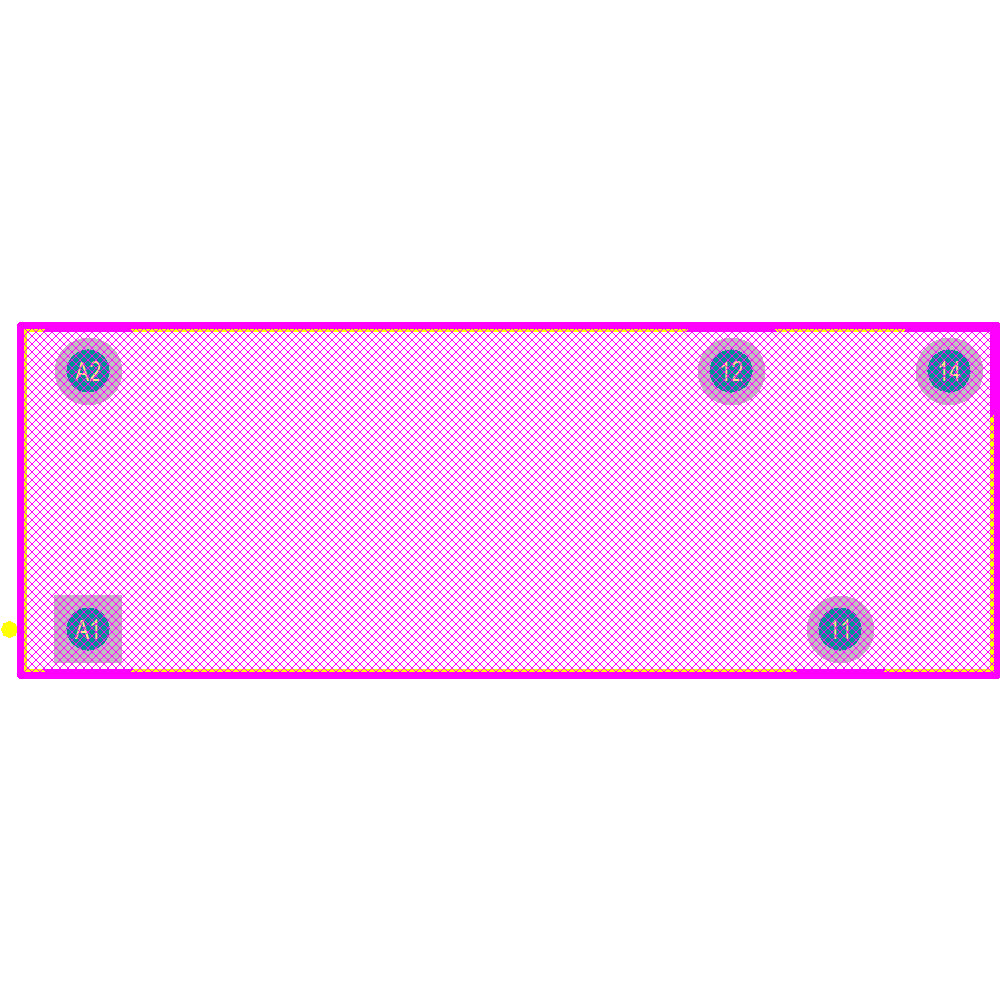

2-1393225-9 Footprint - TE Connectivity

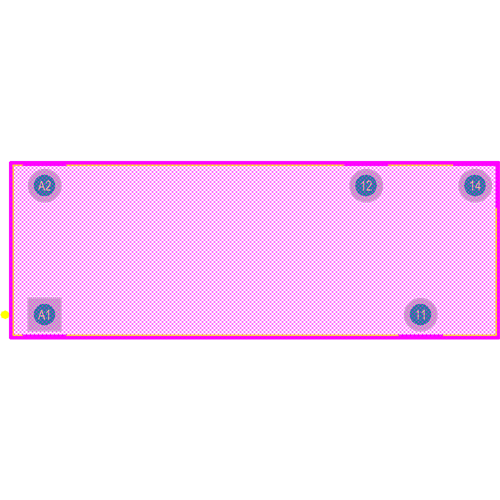

2-1393225-9 Footprint - TE Connectivity
