Electromechanical > Relays > Power Relays

2-1393239-6 - TE Connectivity

TE Connectivity RT134012 Power Signal Relay SPST 1 Form A Momentary

Technical Details

Ambient Temperature Range High	85°C
Approvals	CSA, UL, VDE
China RoHS	Compliant
Coil Current	33mA
Coil Power	400mW
Coil Resistance	360Ω
Coil Type	Non-Latching
Coil Voltage (AC)	12V
Coil Voltage (DC)	8.4V
Contact Current Rating	12A
Contact Material	Silver
Contact Voltage Rating (AC)	400V
Current Rating	12A
Depth	12.7mm
Dropout Voltage	1.2V
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	6kcycles
ELV	Compliant
Height	15.7mm
Harmonized Tariff Schedule (HTS) Code	8536.41.00.50
Introduction Date	2005-06-08
Lead Free	Lead Free
Length	29mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	12A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Mount	PCB, Through Hole
Number of Contacts	1
Number of Terminals	4
Operate Time	8ms
Packaging	Carton
Power Consumption	400mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	10ms
Resistance	249Ω
Response Time	12ms
RoHS	Compliant
Sealable	RT2
Termination	PC Pin, Plug
Throw Configuration	SPST
Voltage Rating (AC)	400V
Voltage Rating (DC)	12V
Weight	14g
Width	12.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 2-1393239-6 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

2-1393239-6 Symbol - TE Connectivity

2-1393239-6 Symbol - TE Connectivity

2-1393239-6 Symbol - TE Connectivity

2-1393239-6 Symbol - TE Connectivity

‹ ›

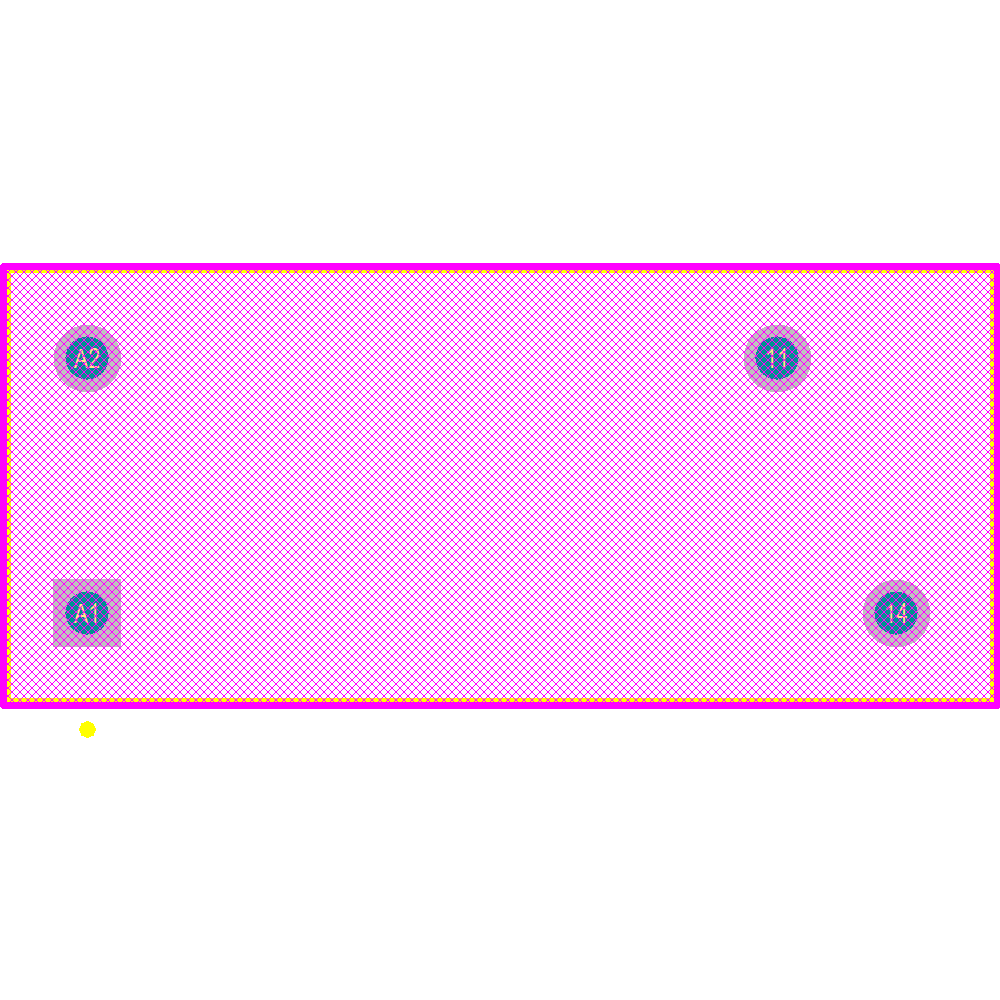

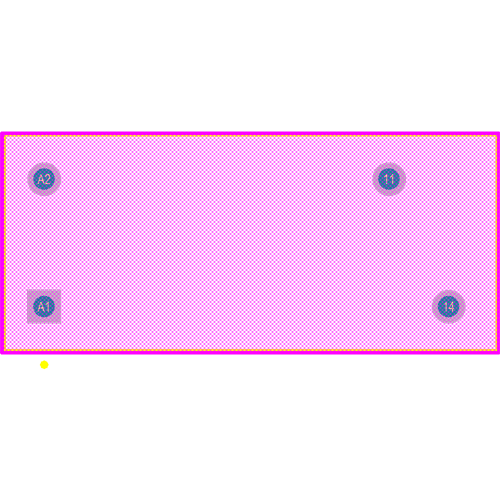

Footprint

2-1393239-6 Footprint - TE Connectivity

2-1393239-6 Footprint - TE Connectivity

2-1393239-6 Footprint - TE Connectivity

2-1393239-6 Footprint - TE Connectivity

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
TE Connectivity / AMP	3-1649326-1	Production
TE Connectivity / Schrack	RT134024AP	Unknown
TE Connectivity / Schrack	RT334024AP	Production
TE Connectivity	1-1415527-1	Production
TE Connectivity / AMP	4-1393238-7	Production
TE Connectivity / AMP	3-1649328-3	Production
TE Connectivity / AMP	3-1649326-3	Production
TE Connectivity	RT134024F	Production
TE Connectivity	2-1393240-4	Production
TE Connectivity	3-1419108-5	Production

See more alternatives See less alternatives
