2-1393240-4 - TE Connectivity

General Purpose Power PCB Electromechanical Relay SPST 16A 24VDC 1440Ohm Through Hole

Technical Details

Ambient Temperature Range High	85°C
Case/Package	DIP
China RoHS	Compliant
Coil Current	17mA
Coil Power	400mW
Coil Resistance	1.44kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	16.8V
Contact Current Rating	16A
Contact Material	Silver
Contact Voltage Rating (AC)	400V
Current Rating	16A
Depth	12.7mm
Dropout Voltage	2.4V
Export Control Classification Number (ECCN) Code	EAR99
ELV	Compliant
Height	15.7mm
Introduction Date	2005-06-08
Length	29mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	16A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	6
Number of Terminals	6
Operate Time	9ms
Packaging	Carton
Pitch	5mm
Radiation Hardening	No
Ratings	IP54
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	6ms
Response Time	11ms
RoHS	Compliant
Sealable	RT2
Switching Capacity	4kW
Switching Current	16A
Termination	PC Pin, Plug
Test Voltage	5kV
Throw Configuration	SPST
Voltage Rating (AC)	400V
Weight	14g
Width	12.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 2-1393240-4 | Master Electronics

Master Electronics

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

2-1393240-4 Symbol - TE Connectivity

2-1393240-4 Symbol - TE Connectivity

2-1393240-4 Symbol - TE Connectivity

2-1393240-4 Symbol - TE Connectivity

‹ ›

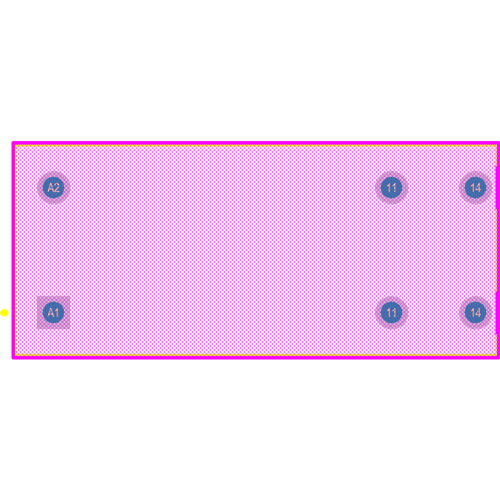

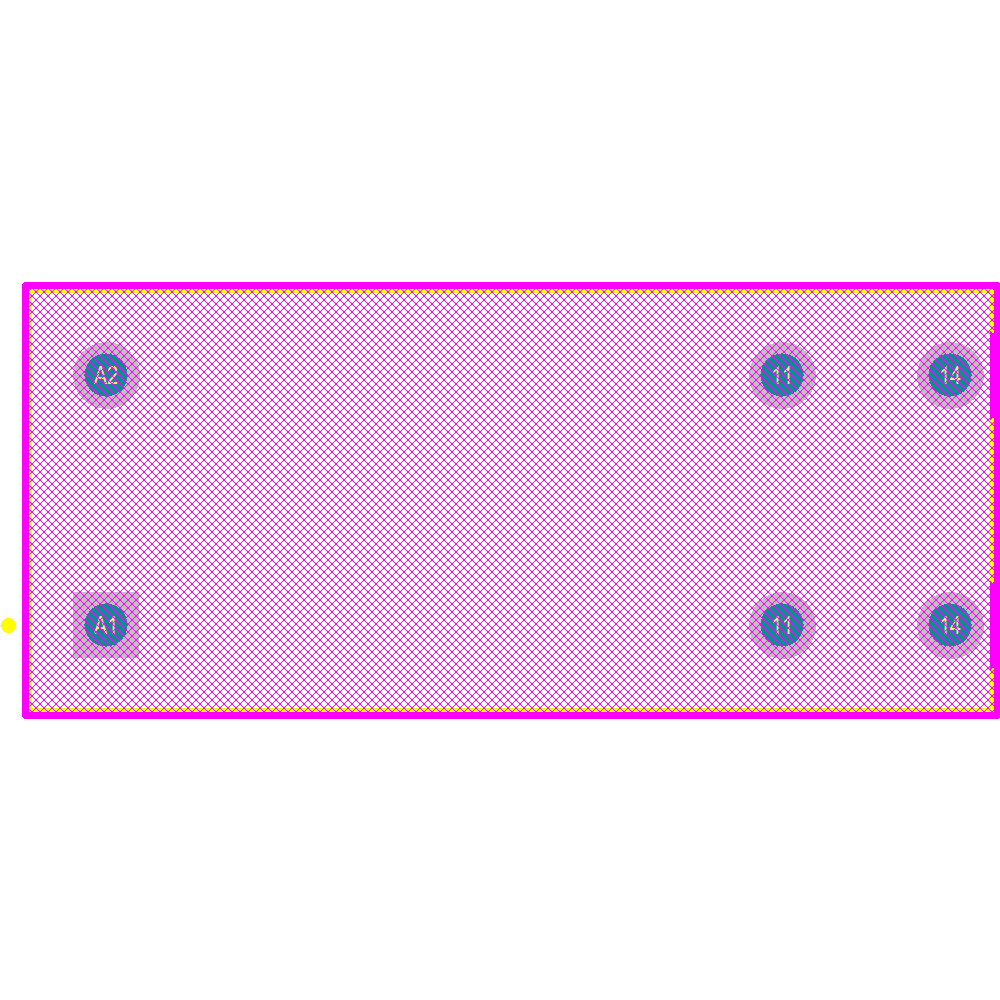

Footprint
