2-1393243-1 - TE Connectivity
Electromechanical Relay 24VDC 1.44KOhm 15A DPDT (29x12.7x15.7)mm THT Power Relay

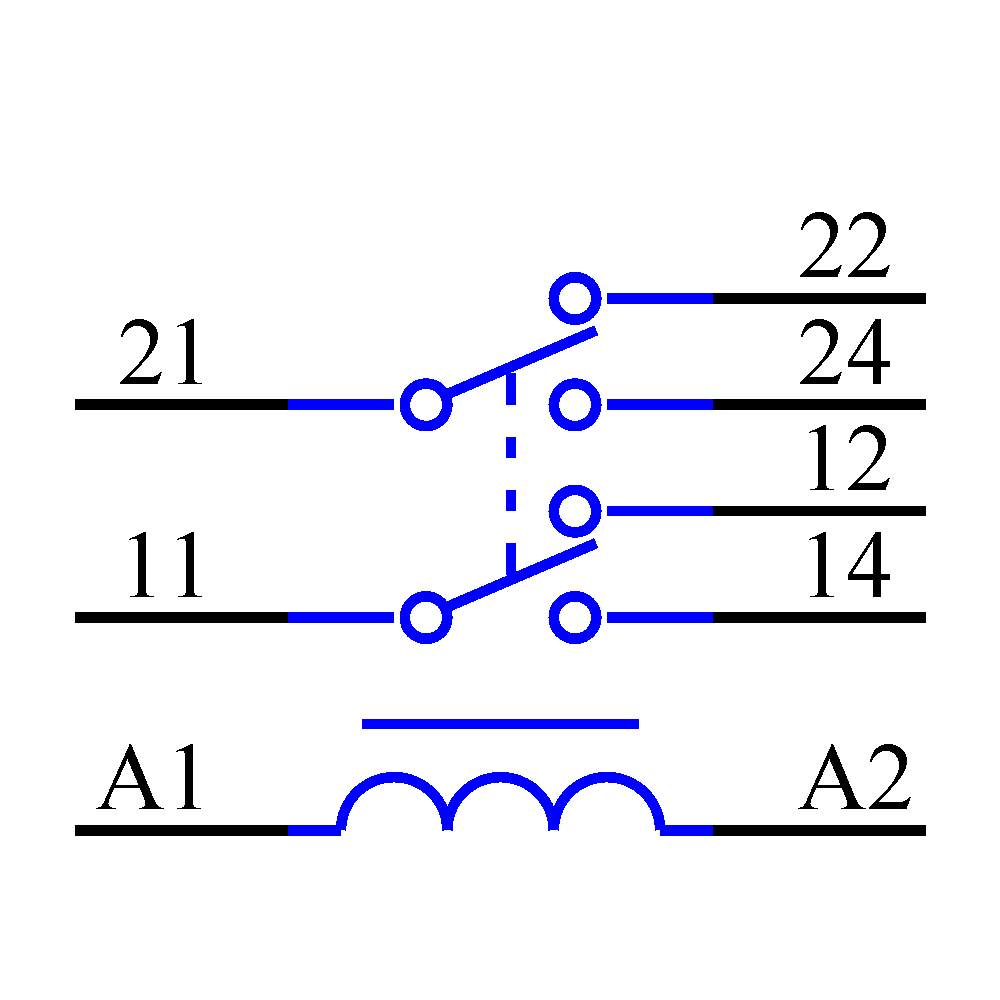

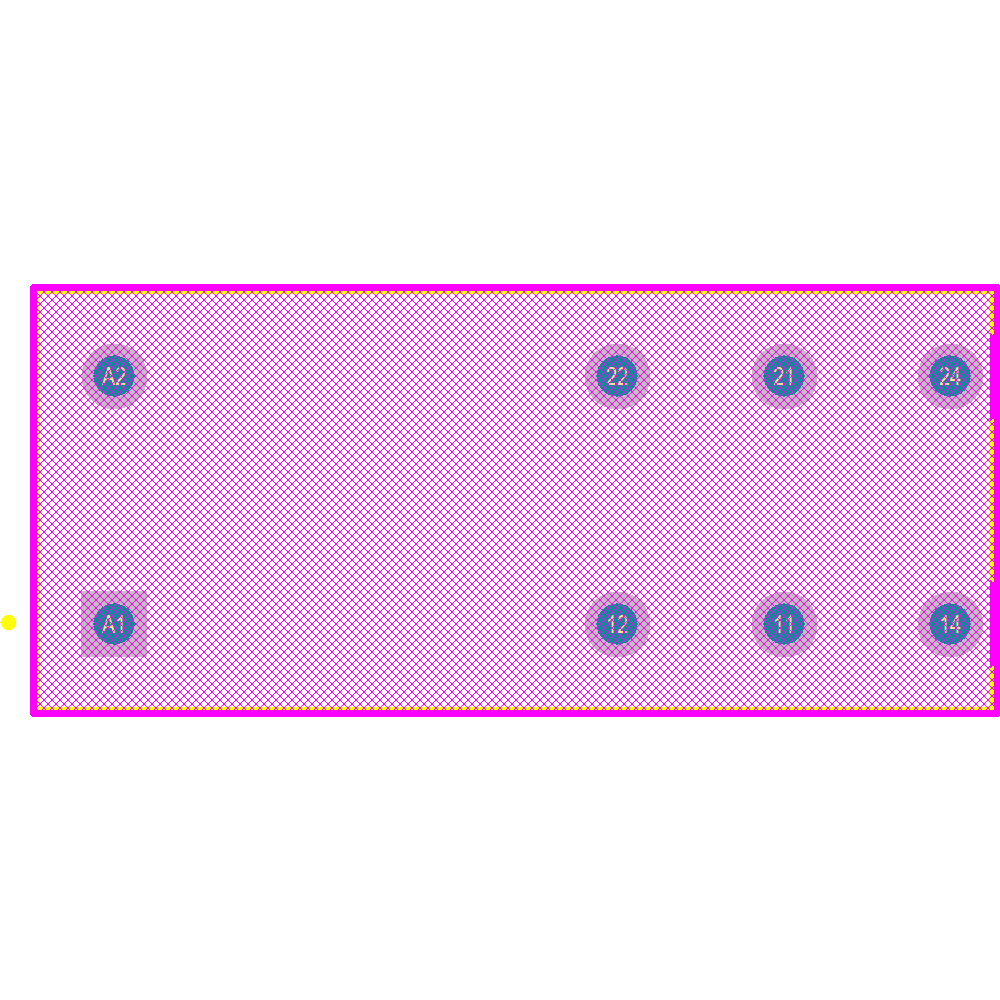

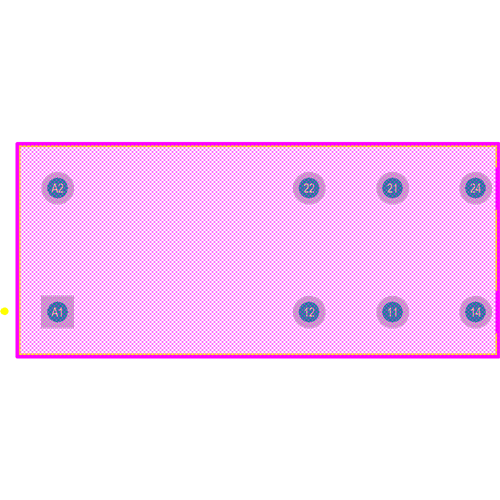

Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | CSA, UL, VDE |
| Case/Package | DIP |
| China RoHS | Compliant |
| Coil Current | 17mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 16.8V |
| Contact Current Rating | 8A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 8A |
| Depth | 12.7mm |
| Dropout Voltage | 2.4V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 30kcycles |
| ELV | Compliant |
| Height | 15.7mm |
| Introduction Date | 2007-08-16 |
| Length | 29mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 400V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Socket, Through Hole |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 8ms |
| Packaging | Carton |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 10ms |
| RoHS | Compliant |
| Sealable | RT3 |
| Termination | PC Pin, Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 400V |
| Voltage Rating (DC) | 24V |
| Weight | 13g |
| Width | 12.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
