Technical Details
| Ambient Temperature Range High | 85°C |
| Approvals | CSA, UL |
| Case/Package | DIP |
| China RoHS | Compliant |
| Coil Current | 7mA |
| Coil Power | 34mW |
| Coil Resistance | 740Ω |
| Coil Type | Latching, Single Coil |
| Coil Voltage (AC) | 24V |
| Coil Voltage (DC) | 3.75V |
| Contact Current Rating | 1A |
| Contact Material | Ruthenium |
| Contact Plating | Gold |
| Contact Voltage Rating (AC) | 150V |
| Current Rating | 1A |
| Depth | 7.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| ELV | Compliant |
| Height | 6.9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.49.00.50 |
| Insertion Loss (dB) | -0.12dB |
| Introduction Date | 2004-12-01 |
| Lead Free | Lead Free |
| Length | 13mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 1A |
| Max Frequency | 900MHz |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 150V |
| Max Voltage Rating (DC) | 125V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 6 |
| Operate Time | 2ms |
| Power Consumption | 150mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | General Purpose, Relay |
| Release Time | 5ms |
| Response Time | 5ms |
| RoHS | Compliant |
| Sealable | IP67/RT3 |
| Switching Current | 1A |
| Termination | PC Pin, PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 150V |
| Voltage Rating (DC) | 5V |
| Weight | 2g |
| Width | 7.58952mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

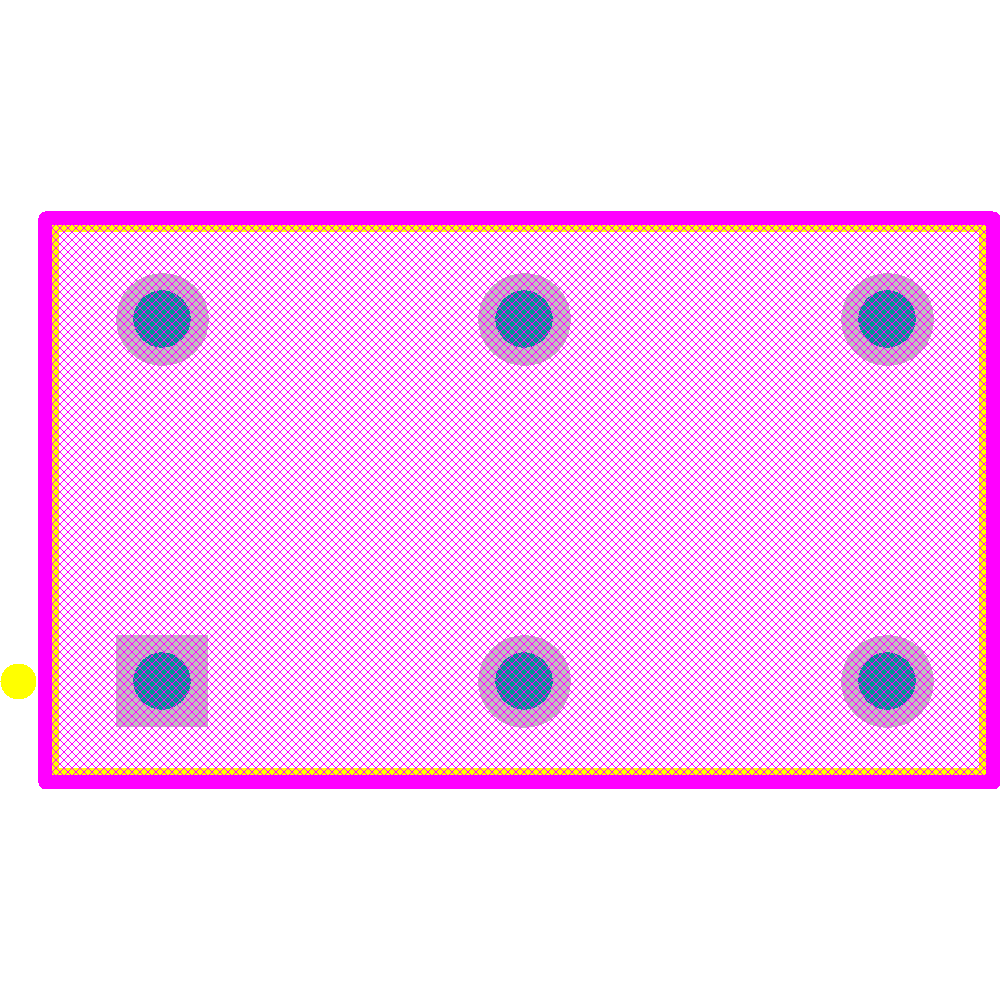

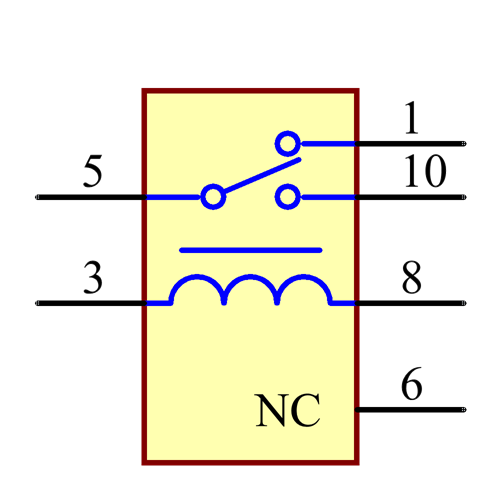

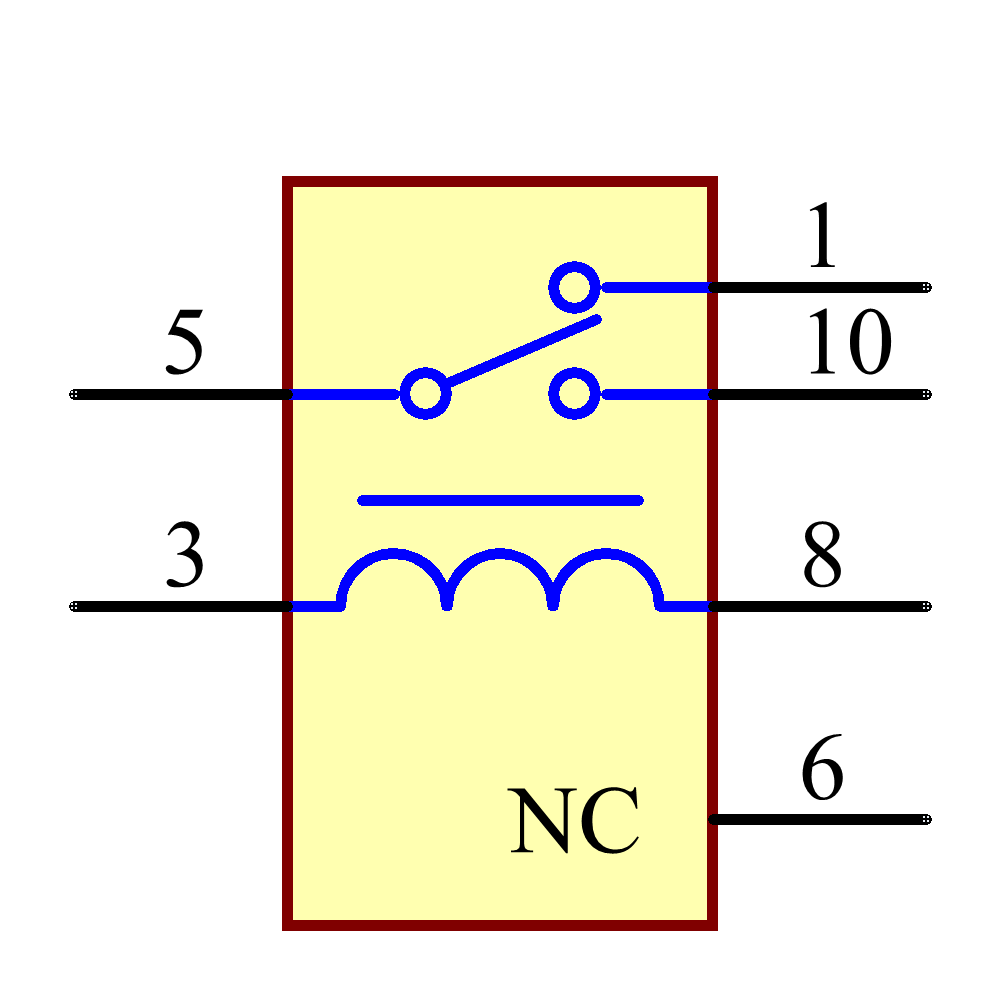

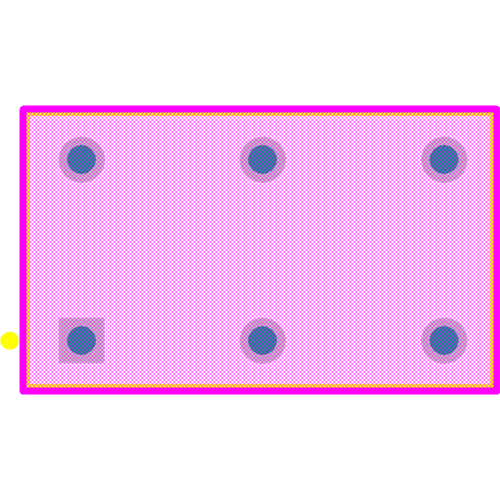

Images
