Industrial Relays

2-1415030-1 - TE Connectivity

Relay, 1 Form A (n/o), 12 V (DC), 400 Ω, 10 A, 400 V (AC), Monostable, 2-1415030-1

Technical Details

China RoHS	Compliant
Coil Current	30mA
Coil Power	360mW
Coil Resistance	400Ω
Coil Voltage (DC)	9V
Contact Current Rating	10A
Contact Material	Silver
Contact Voltage Rating (AC)	250V
Depth	15mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	1kcycles
Height	20mm
Harmonized Tariff Schedule (HTS) Code	8536.49.00.50
Introduction Date	2005-06-08
Lead Free	Lead Free
Length	15mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	10A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400V
Max Voltage Rating (DC)	100V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Pins	5
Operate Time	10ms
Packaging	Box
Radiation Hardening	No
Ratings	IP54
REACH SVHC	Yes
Release Time	35ms
Response Time	35ms
RoHS	Compliant
Sealable	RT2
Switching Capacity	2.5kW
Switching Current	10A
Termination	PC Pin
Throw Configuration	SPST
Voltage Rating	12V
Voltage Rating (AC)	400V
Weight	5.4g
Width	15mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 2-1415030-1 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

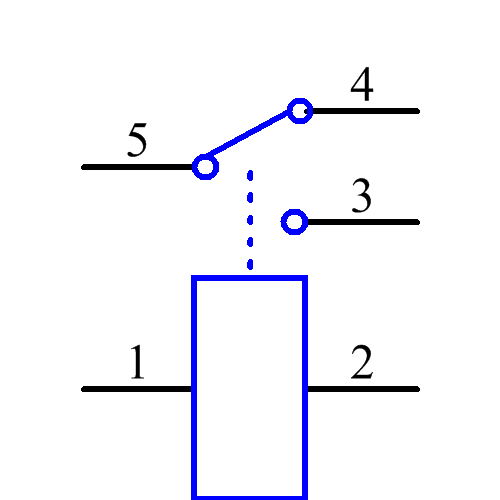

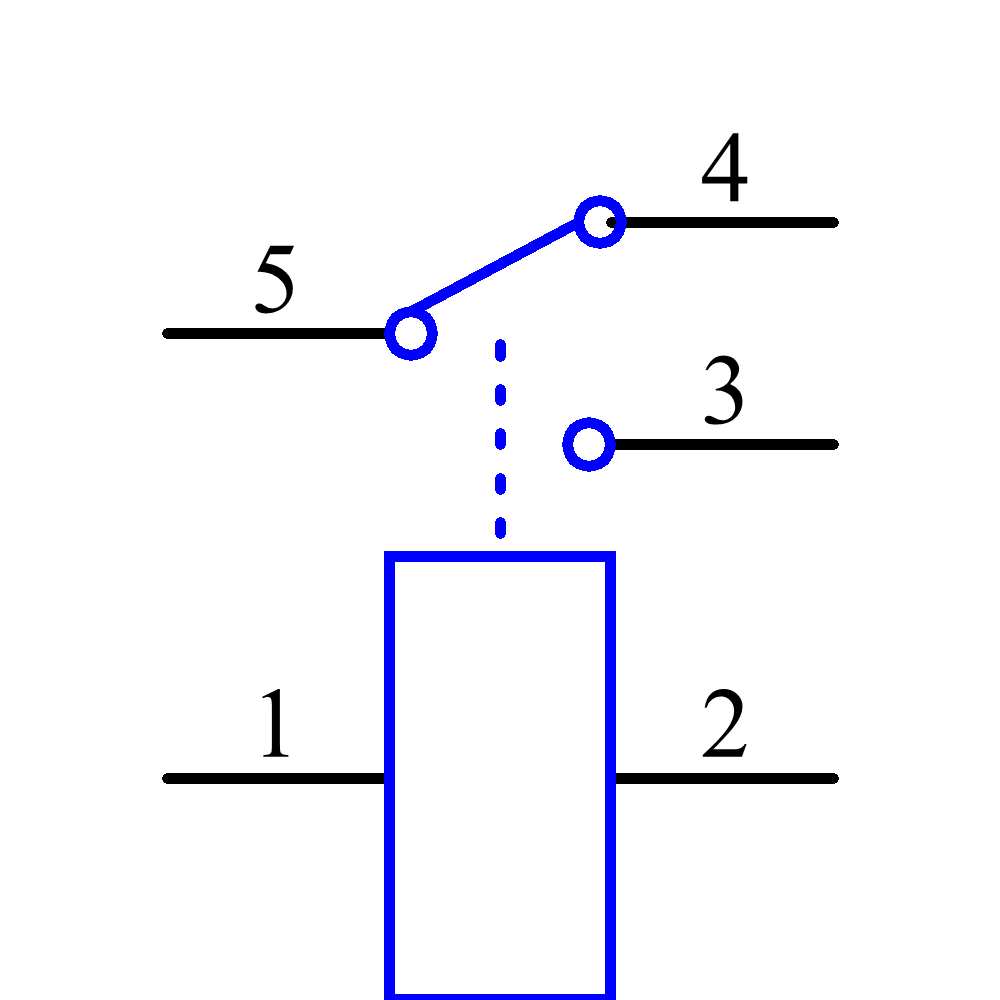

Symbol

2-1415030-1 Symbol - TE Connectivity

2-1415030-1 Symbol - TE Connectivity

2-1415030-1 Symbol - TE Connectivity

2-1415030-1 Symbol - TE Connectivity

‹ ›

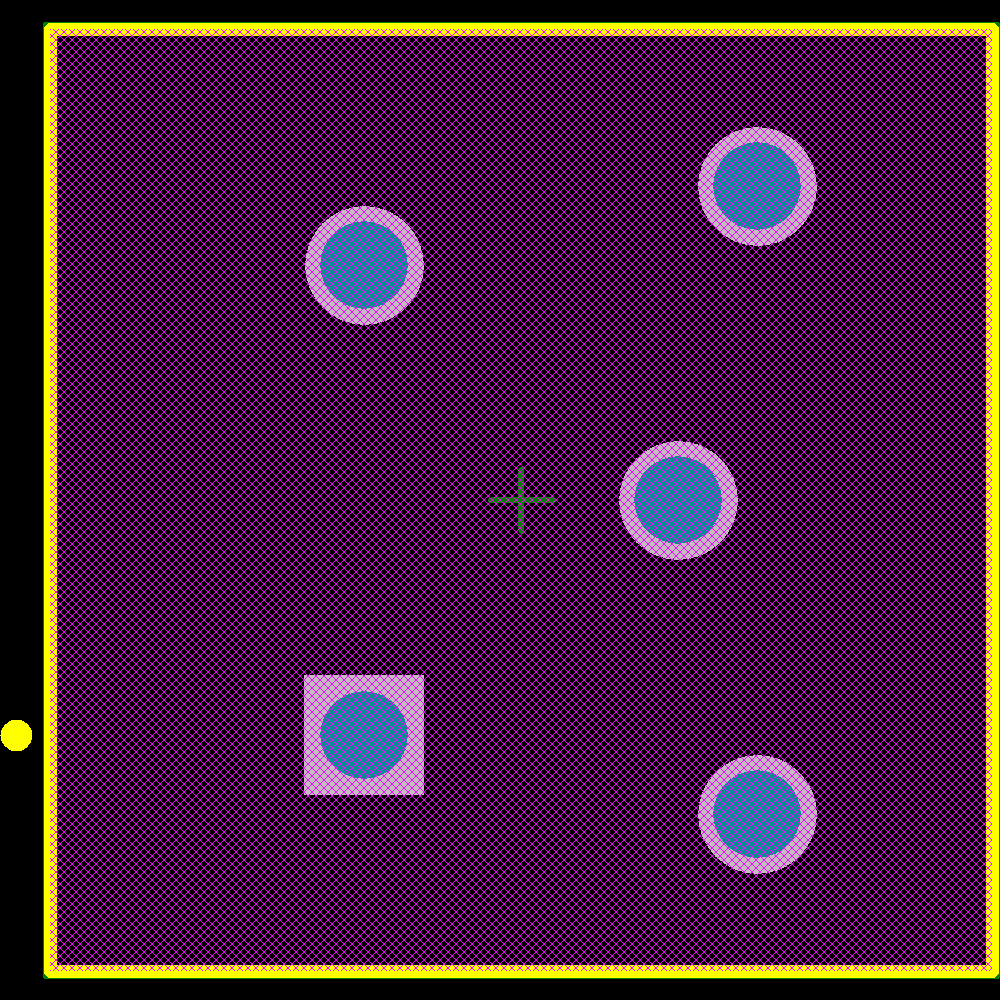

Footprint

2-1415030-1 Footprint - TE Connectivity

2-1415030-1 Footprint - TE Connectivity

2-1415030-1 Footprint - TE Connectivity

2-1415030-1 Footprint - TE Connectivity

‹ ›
