2-1904025-3 - TE Connectivity

Power Relay 24VDC 120(NO)/45(NC)A SPDT(28.5x28.5x36.8)mm Plug-In Automotive

Ambient Temperature Range High	125°C
Case/Package	120
China RoHS	Compliant
Coil Current	94mA
Coil Power	2.256W
Coil Resistance	255Ω
Coil Type	Non-Latching
Coil Voltage (DC)	16V
Contact Current Rating	18A
Contact Material	Silver
Contact Voltage Rating (AC)	24V
Current Rating	20A
Depth	28.5mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	250kcycles
ELV	Compliant
Height	16mm
Harmonized Tariff Schedule (HTS) Code	8536.41.00.50
Introduction Date	2008-06-02
Length	21.9964mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	18A
Max Operating Temperature	125°C
Max Voltage Rating (DC)	24V
Min Operating Temperature	-40°C
Mount	Plug-In
Number of Contacts	1
Number of Pins	5
Number of Terminals	5
Operate Time	10ms
Packaging	Bulk
Power Consumption	2W
Radiation Hardening	No
REACH SVHC	No
Relay Type	Relay
Release Time	10ms
Response Time	10ms
RoHS	Compliant
Sealable	IP54
Termination	Plug
Throw Configuration	SPDT
Weight	35g
Width	28.4988mm

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

TE Connectivity 2-1904025-3 | Sager Electronics

Sager Electronics

Production

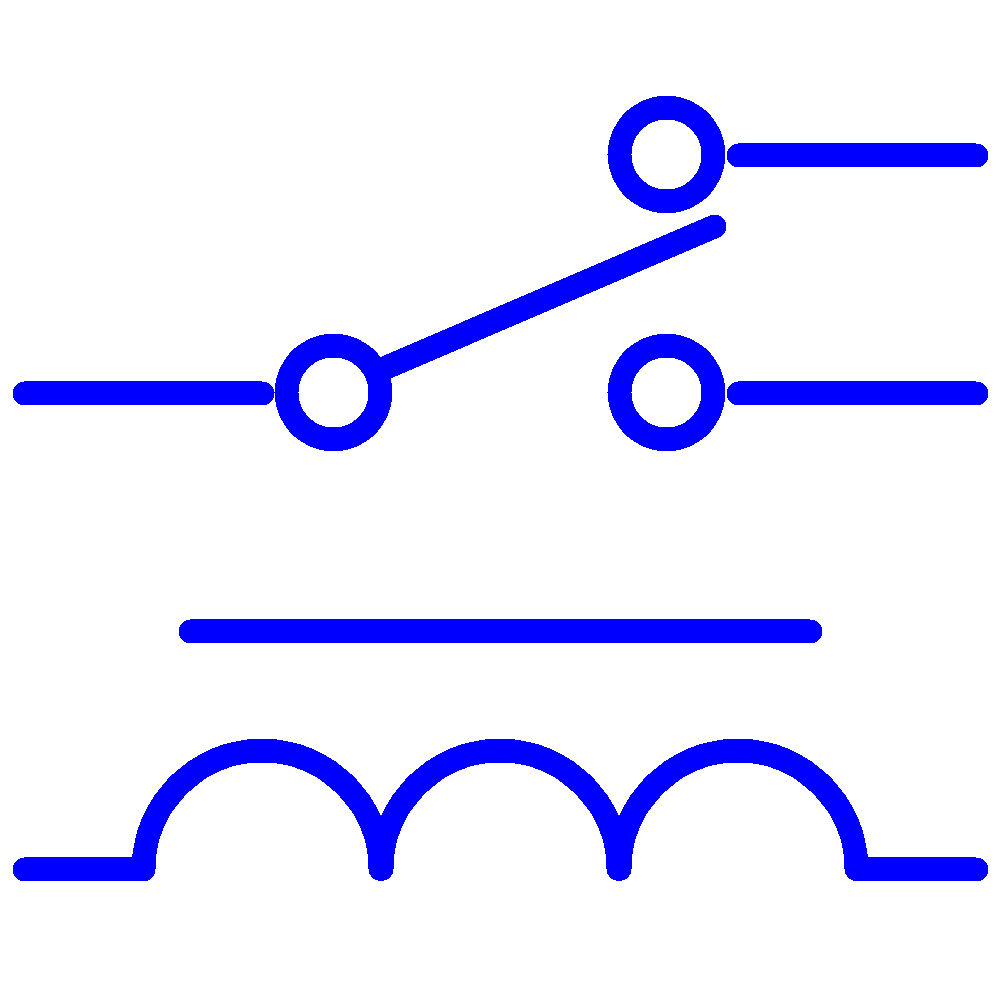

Symbol

‹ ›
