4-1415536-2 - TE Connectivity
Power/Signal Relay, 1 Form A, Momentary, 12VDC (Coil), 400mW (Coil), 16A (Contact), Panel Mount
Technical Details
| Ambient Temperature Range High | 105°C |
| Case/Package | DIP |
| China RoHS | Compliant |
| Coil Current | 33mA |
| Coil Power | 400mW |
| Coil Resistance | 360Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 8.4V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 16A |
| Depth | 12.7mm |
| Dropout Voltage | 1.2V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 250kcycles |
| ELV | Compliant |
| Height | 15.7mm |
| Introduction Date | 2008-04-02 |
| Length | 29mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 16A |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 400V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 6 |
| Operate Time | 8ms |
| Packaging | Carton |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Release Time | 10ms |
| Response Time | 12ms |
| RoHS | Compliant |
| Sealable | RT2 |
| Termination | PCB |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 400V |
| Weight | 14g |
| Width | 12.7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

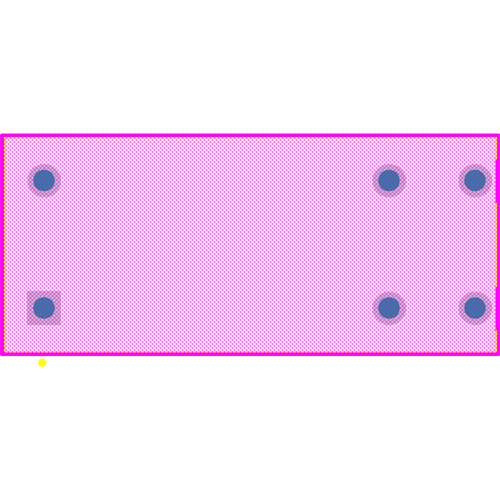

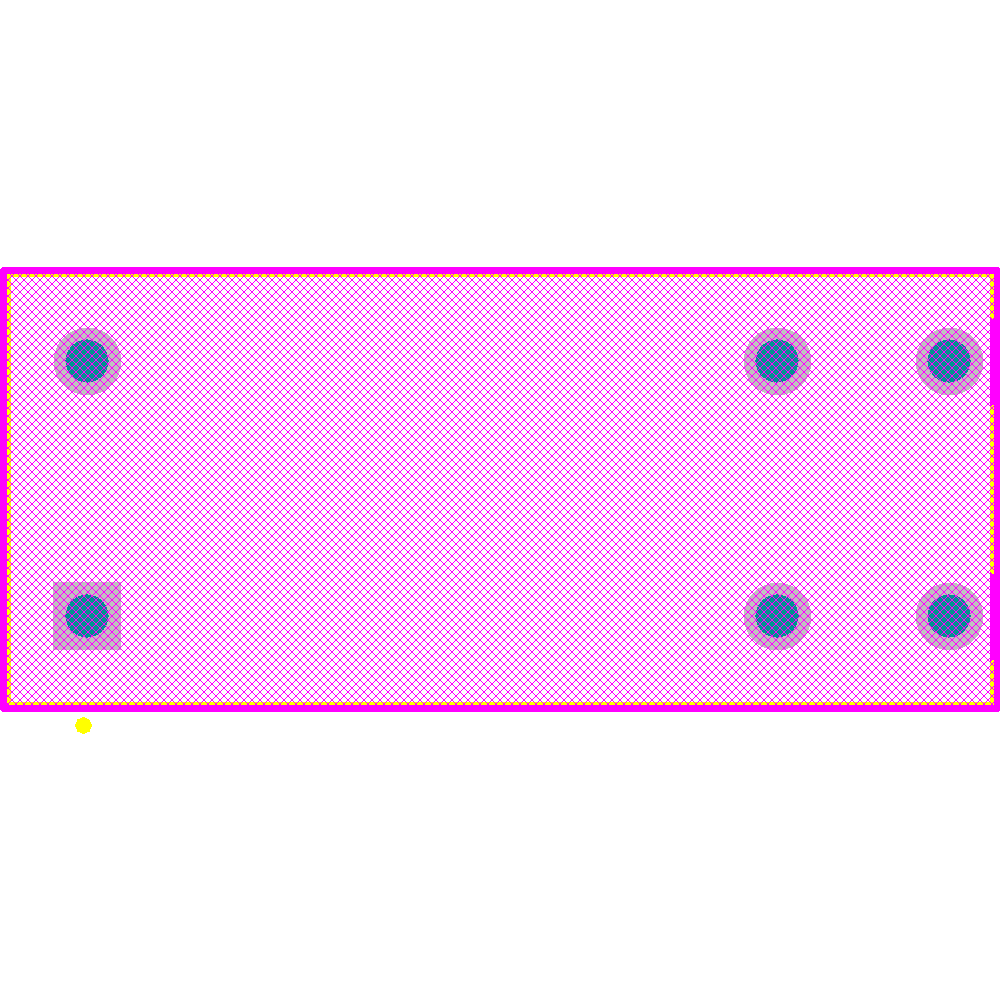

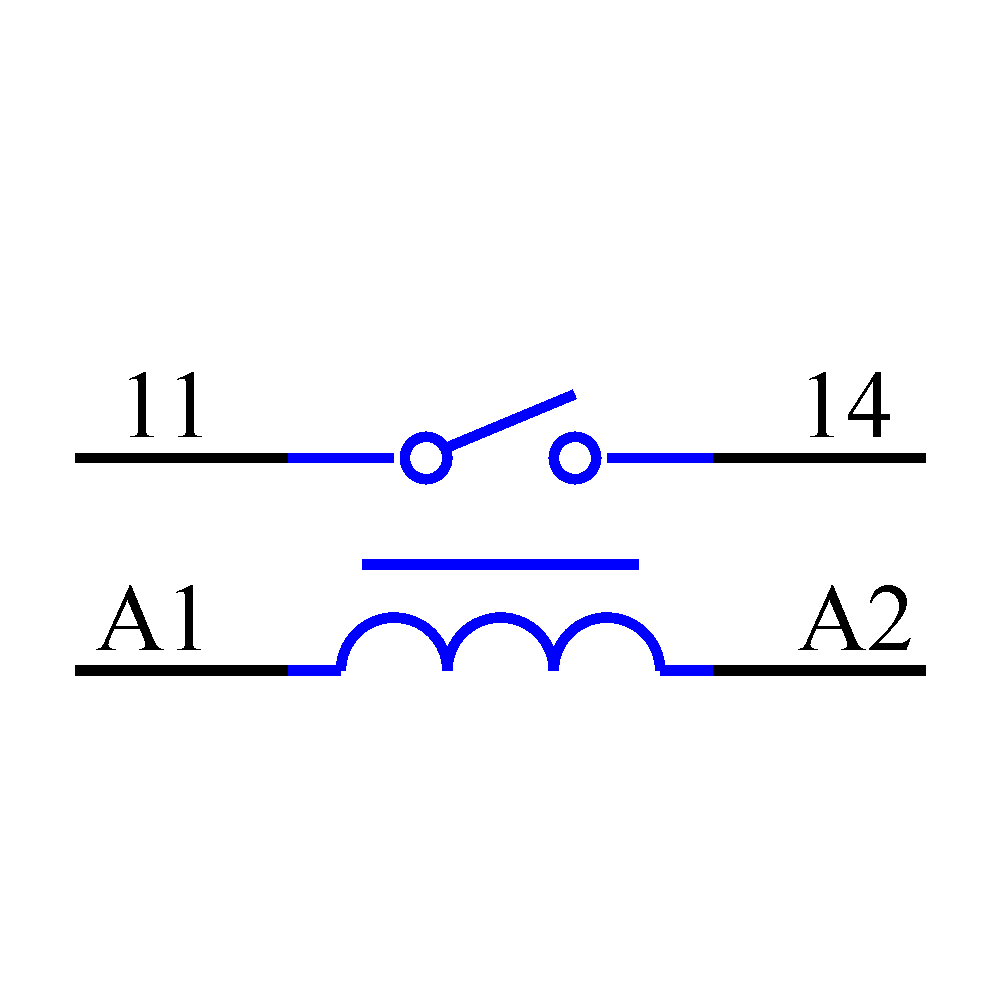

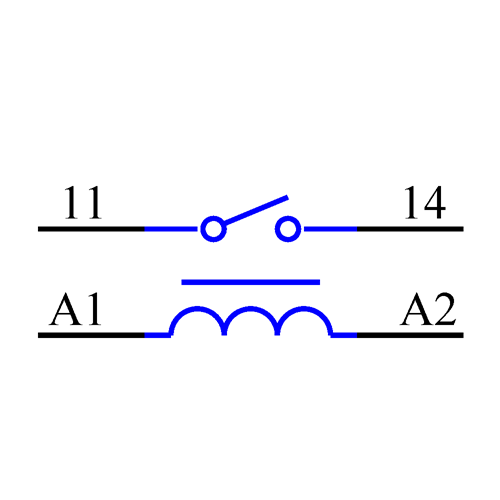

Images
