5-1415899-5 - TE Connectivity

Electromechanical Relay 24VDC 1.44KOhm 16A SPDT (( 29mm 12.7mm 15.7mm)) THT Power Relay

Technical Details

Ambient Temperature Range High	85°C
Case/Package	DIP
China RoHS	Compliant
Coil Current	17mA
Coil Power	400mW
Coil Resistance	1.44kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	16.8V
Contact Current Rating	16A
Contact Material	Silver, Tin
Contact Voltage Rating (AC)	400V
Current Rating	16A
Depth	12.7mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	10kcycles
ELV	Compliant
Height	15.7mm
Introduction Date	2010-05-26
Length	29mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	16A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	400V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	8
Operate Time	8ms
Packaging	Carton
Radiation Hardening	No
REACH SVHC	Yes
Release Time	12ms
Response Time	14ms
RoHS	Compliant
Sealable	RT2
Termination	PCB
Throw Configuration	SPDT
Voltage Rating (AC)	400V
Weight	10g
Width	12.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

TE Connectivity 5-1415899-5 | TME

TME

Datasheets

Master Electronics

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

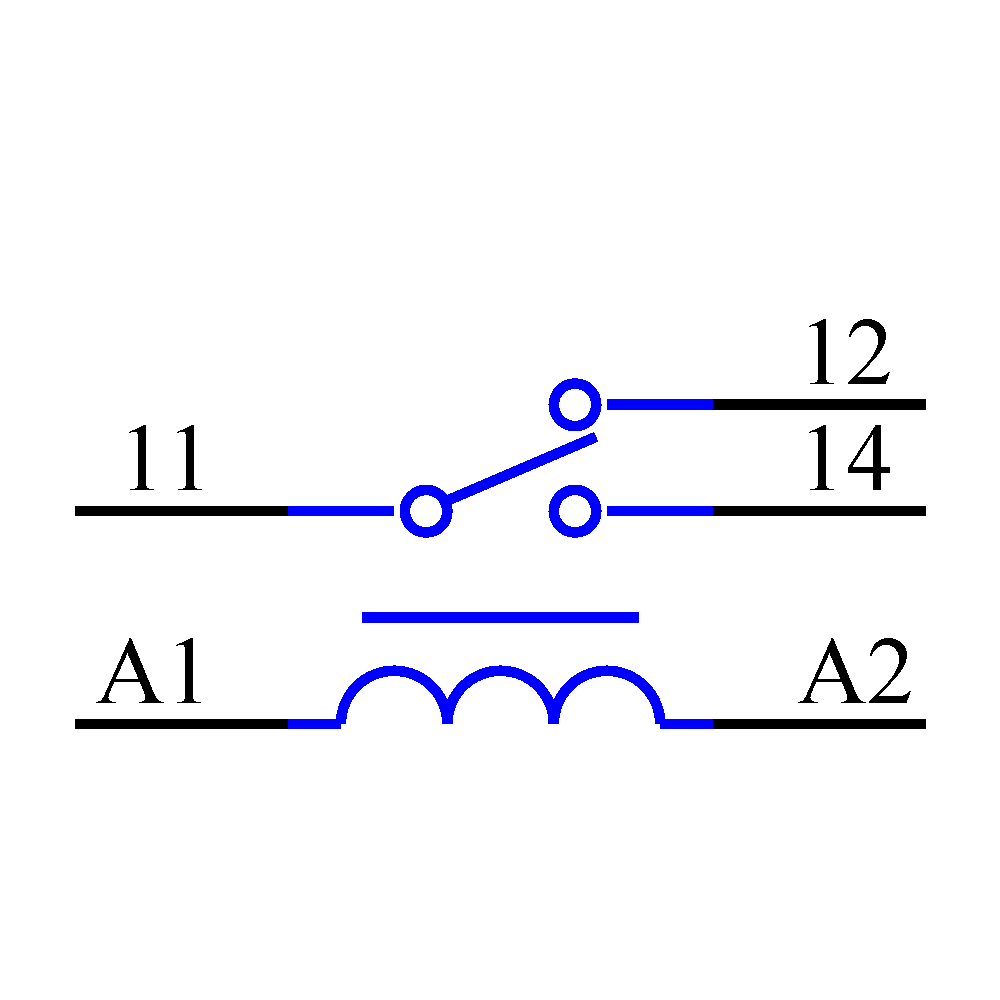

5-1415899-5 Symbol - TE Connectivity

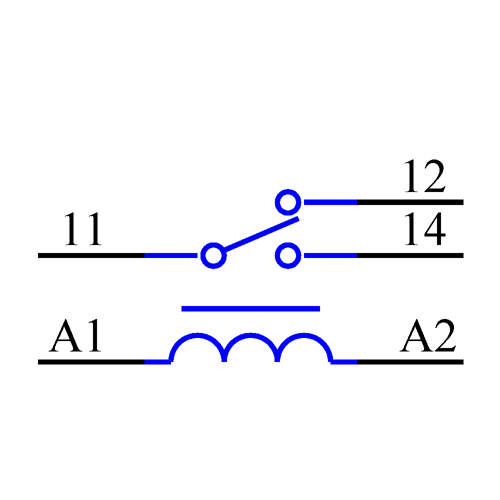

5-1415899-5 Symbol - TE Connectivity

5-1415899-5 Symbol - TE Connectivity

5-1415899-5 Symbol - TE Connectivity

‹ ›

Footprint

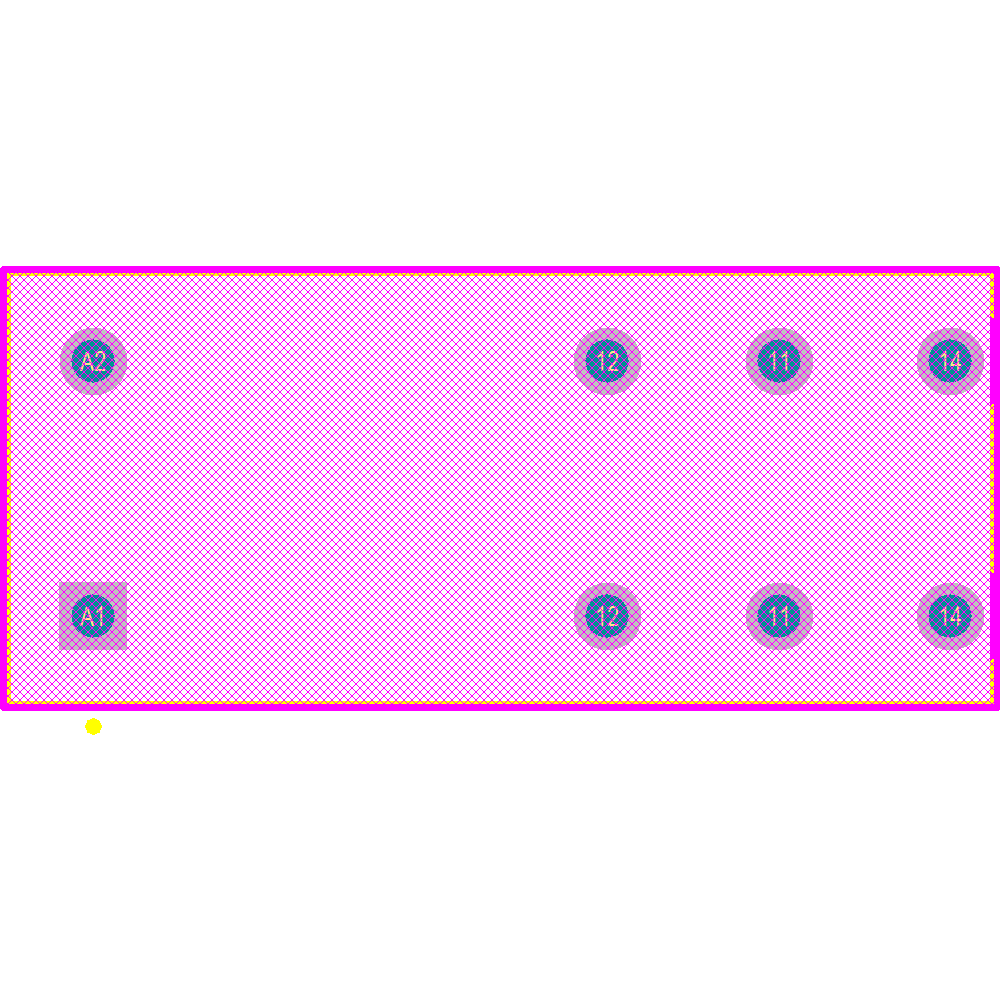

5-1415899-5 Footprint - TE Connectivity
