5-1419111-1 - TE Connectivity
Electromechanical Relay 230VAC 19.465KOhm 24A DPDT(28x22.5x35)mm Plug-In Industrial Relay
Technical Details
| Ambient Temperature Range High | 70°C |
| China RoHS | Compliant |
| Coil Current | 4mA |
| Coil Power | 1W |
| Coil Resistance | 19.465kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 230V |
| Coil Voltage (DC) | 184V |
| Contact Current Rating | 12A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 12A |
| Depth | 22.5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 29mm |
| Introduction Date | 2005-06-08 |
| Lead Free | Lead Free |
| Length | 28mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 12A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 400V |
| Min Operating Temperature | -40°C |
| Mount | Plug-In |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 15ms |
| Packaging | Bulk |
| Power Consumption | 750µW |
| Radiation Hardening | No |
| Ratings | IP40 |
| REACH SVHC | Yes |
| Release Time | 15ms |
| Response Time | 23ms |
| RoHS | Compliant |
| Sealable | RT2 |
| Switching Capacity | 3kW |
| Switching Current | 12A |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 400V |
| Weight | 30g |
| Width | 22.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

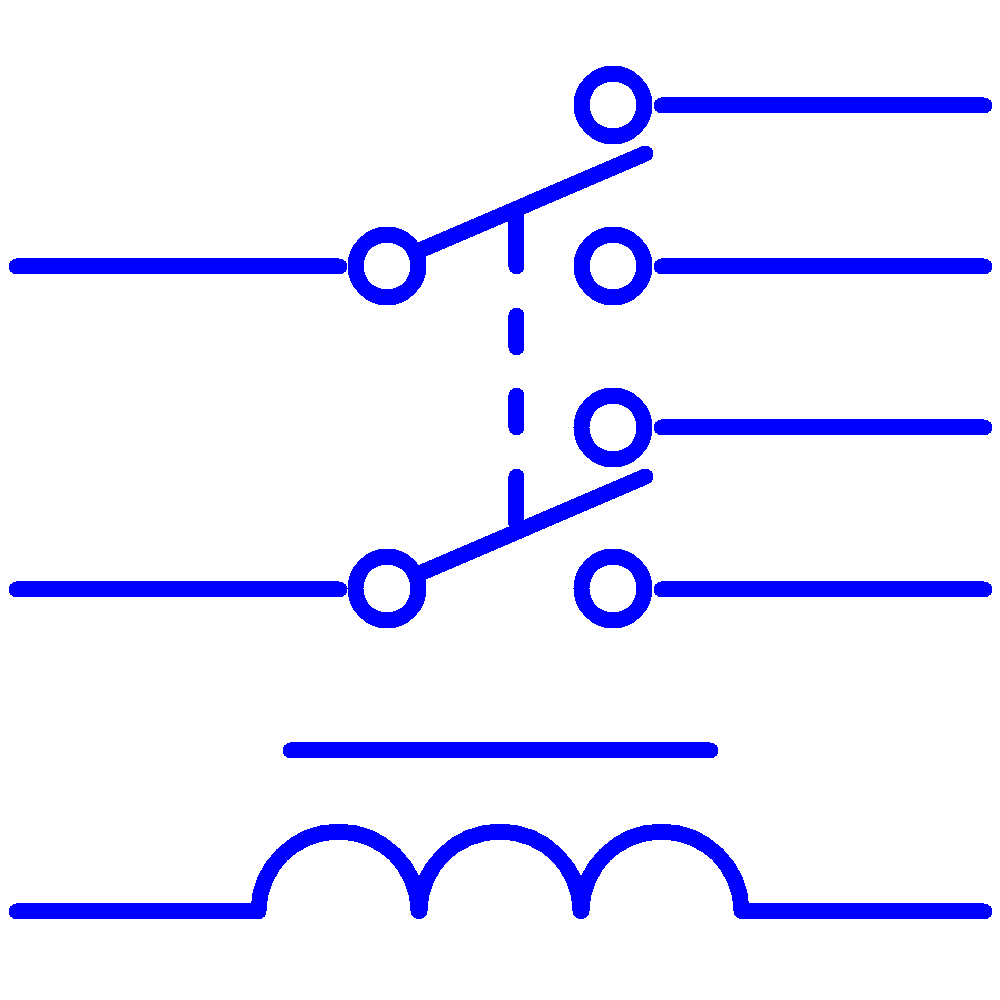

Images
