6-1393302-3 - TE Connectivity
Electromechanical Relay SPDT 120(NO)/45(NC)A 24VDC 324Ohm Plug-In

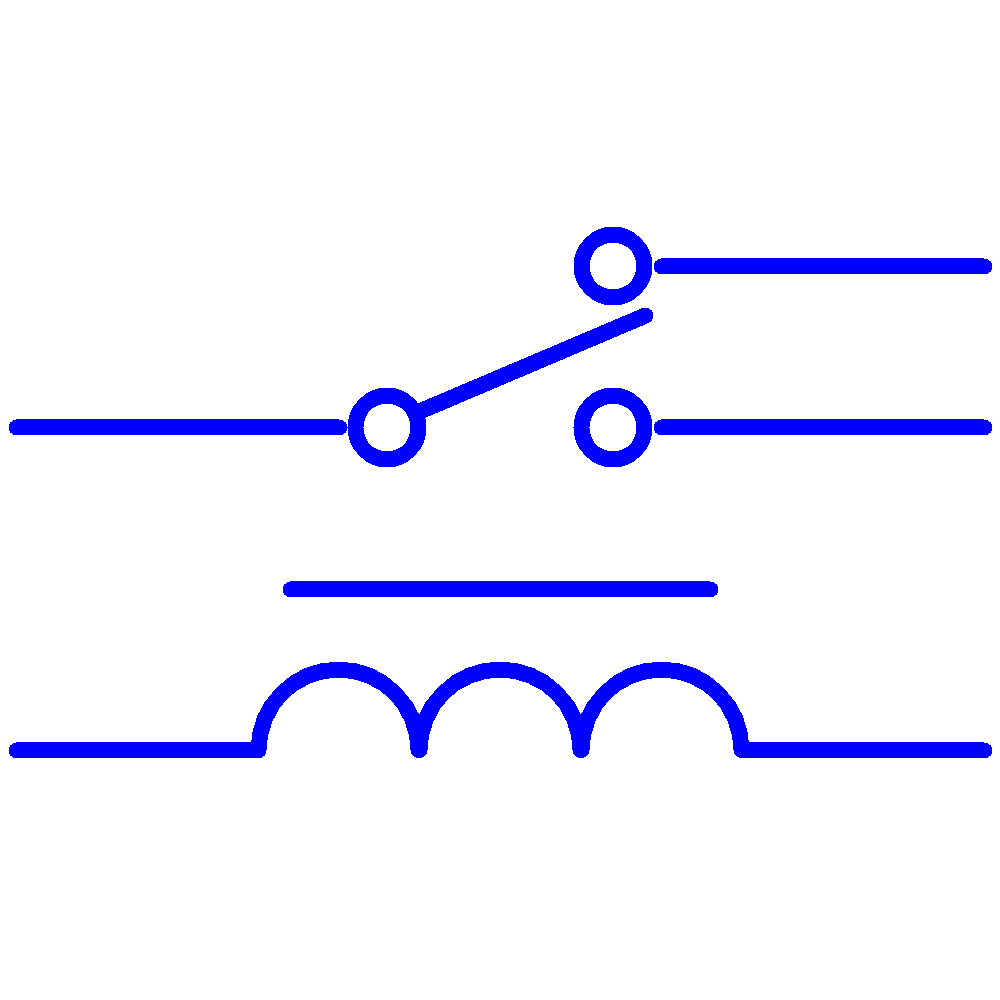

Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | 120 |
| China RoHS | Compliant |
| Coil Current | 72mA |
| Coil Power | 1.73W |
| Coil Resistance | 324Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 0V |
| Coil Voltage (DC) | 14.4V |
| Contact Current Rating | 750mA |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 12V |
| Current Rating | 30A |
| Depth | 26.2mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 24.9mm |
| Introduction Date | 2005-02-02 |
| Lead Free | Not Applicable |
| Length | 25.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 750mA |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (DC) | 12V |
| Min Operating Temperature | -40°C |
| Mount | Plug-In, Socket |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Number of Poles | 1 |
| Number of Terminals | 4 |
| Operate Time | 7ms |
| Packaging | Bulk |
| Power Consumption | 1.6W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Release Time | 2ms |
| Response Time | 7ms |
| RoHS | Compliant |
| Sealable | DUST PROOF |
| Termination | Plug, Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 24V |
| Weight | 35g |
| Width | 25.9mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
