6-1415356-1 - TE Connectivity
Relay, 1 Form C (no/nc), 12 V (DC), 400 Ω, 6 A, 400 V (AC), Monostable, 6-1415356-1
Technical Details
| Ambient Temperature Range High | 105°C |
| China RoHS | Compliant |
| Coil Current | 30mA |
| Coil Power | 360mW |
| Coil Resistance | 400Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 6A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 6A |
| Depth | 15mm |
| Dropout Voltage | 1.2V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 20mm |
| Introduction Date | 2005-06-08 |
| Length | 15mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 6A |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 400V |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 10ms |
| Packaging | Box |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Release Time | 35ms |
| Response Time | 35ms |
| RoHS | Compliant |
| Sealable | RT2 |
| Termination | PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Weight | 5.4g |
| Width | 15mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

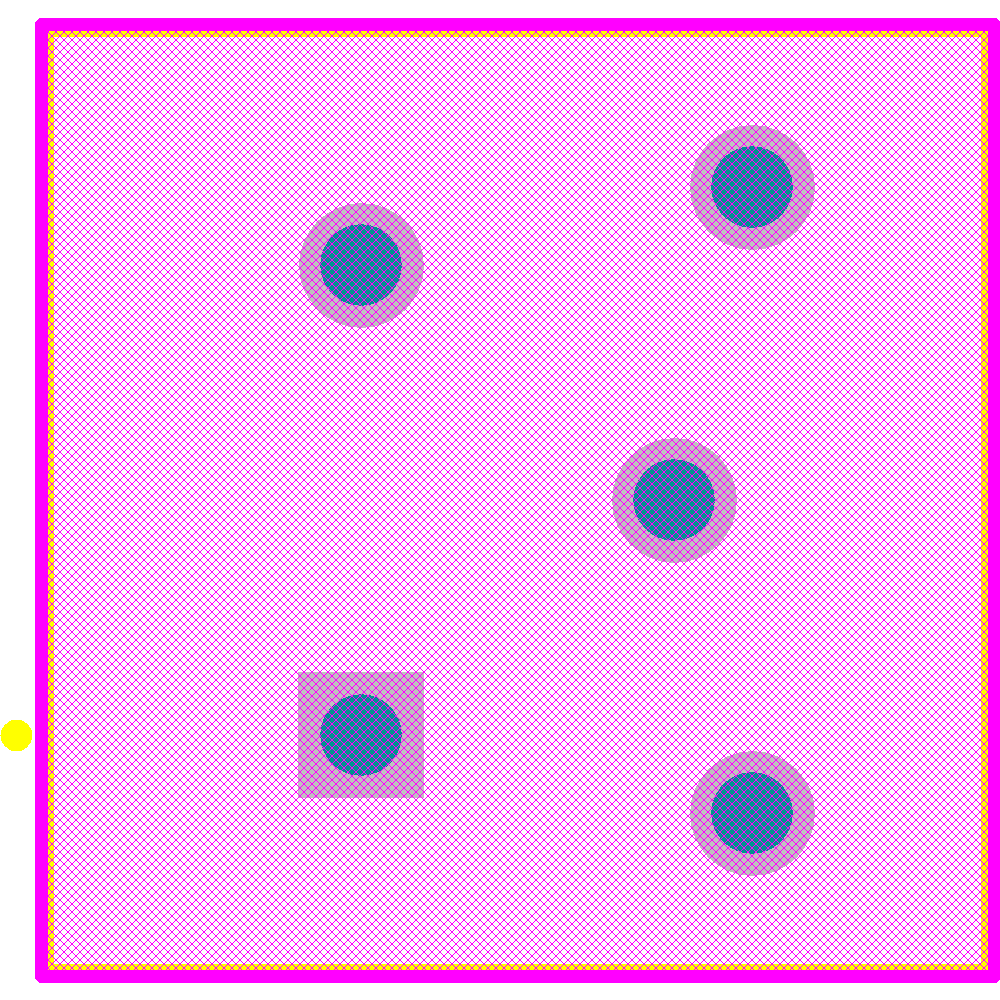

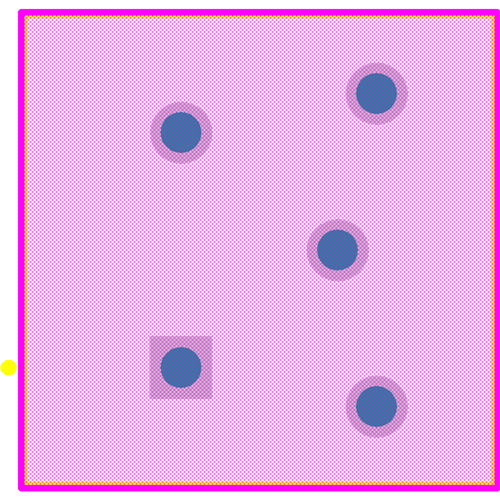

Images
