7-1415899-9 - TE Connectivity
General Purpose Power PCB Electromechanical Relay SPDT 16A 24VDC 1440Ohm Through Hole
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | DIP |
| China RoHS | Compliant |
| Coil Current | 16.67mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 16A |
| Depth | 12.7mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Compliant |
| Height | 15.7mm |
| Introduction Date | 2014-01-20 |
| Length | 29mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 1 |
| Number of Pins | 8 |
| Operate Time | 8ms |
| Packaging | Carton |
| REACH SVHC | Yes |
| Resistance | 1.44kΩ |
| RoHS | Compliant |
| Termination | PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Weight | 10g |
| Width | 12.7mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

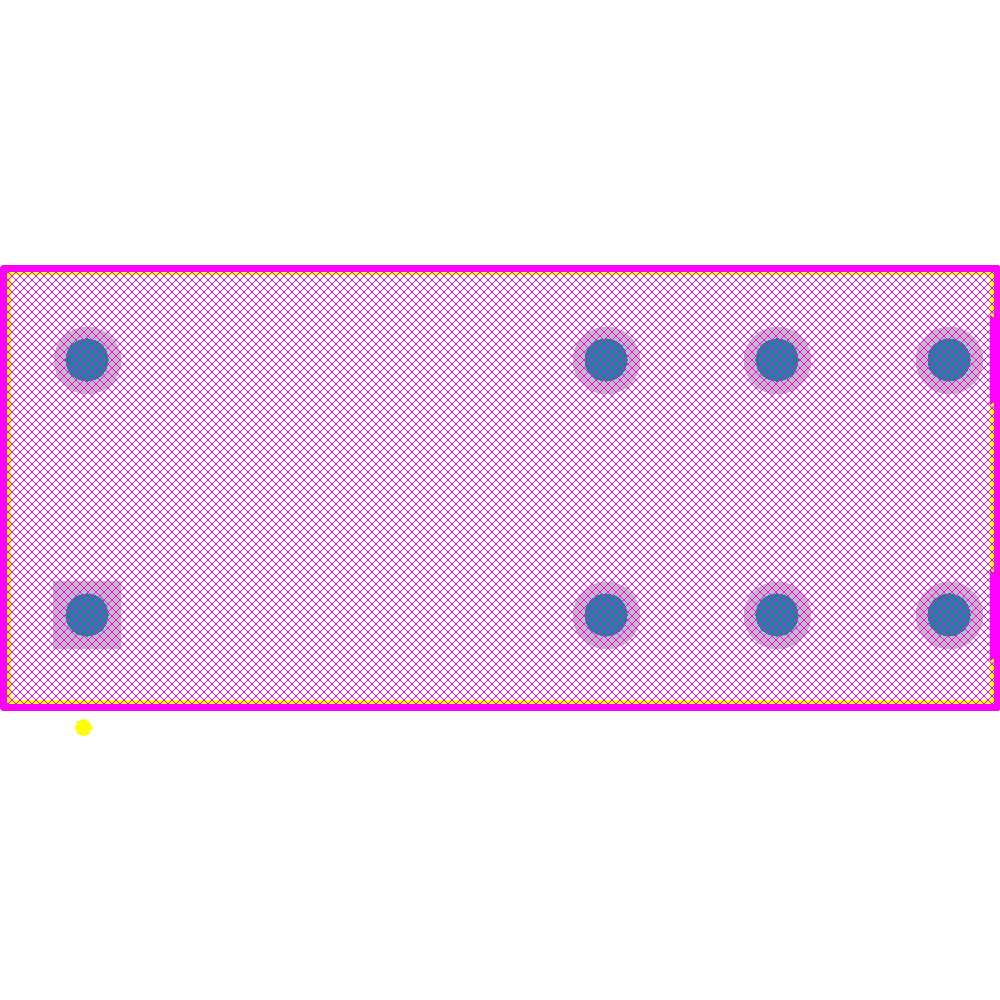

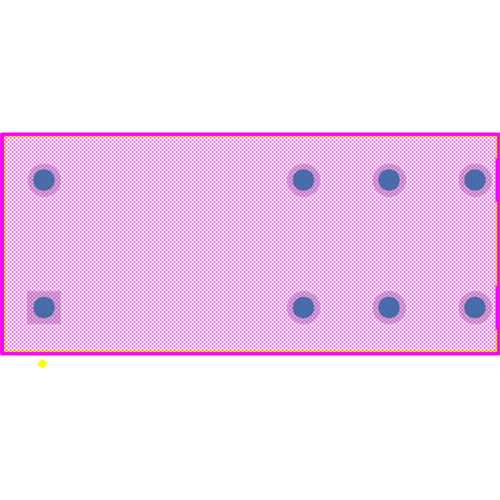

Images
