7-1440009-5 - TE Connectivity
Electromechanical Relay 3VDC 17Ohm 16A SPDT(29.2x12.8x20.6)mm THT General Purpose Relay
Technical Details
| Case/Package | 200 |
| Coil Current | 180mA |
| Coil Power | 540mW |
| Coil Resistance | 16.7Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 16A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Non-Compliant |
| Height | 20.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.50 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2008-04-02 |
| Length | 29.21mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 16A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (DC) | 24V |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Operate Time | 20ms |
| Packaging | Bulk |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 8ms |
| RoHS | Compliant |
| Termination | PC Pin, PCB |
| Throw Configuration | SPDT |
| Weight | 13g |
| Width | 12.8mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

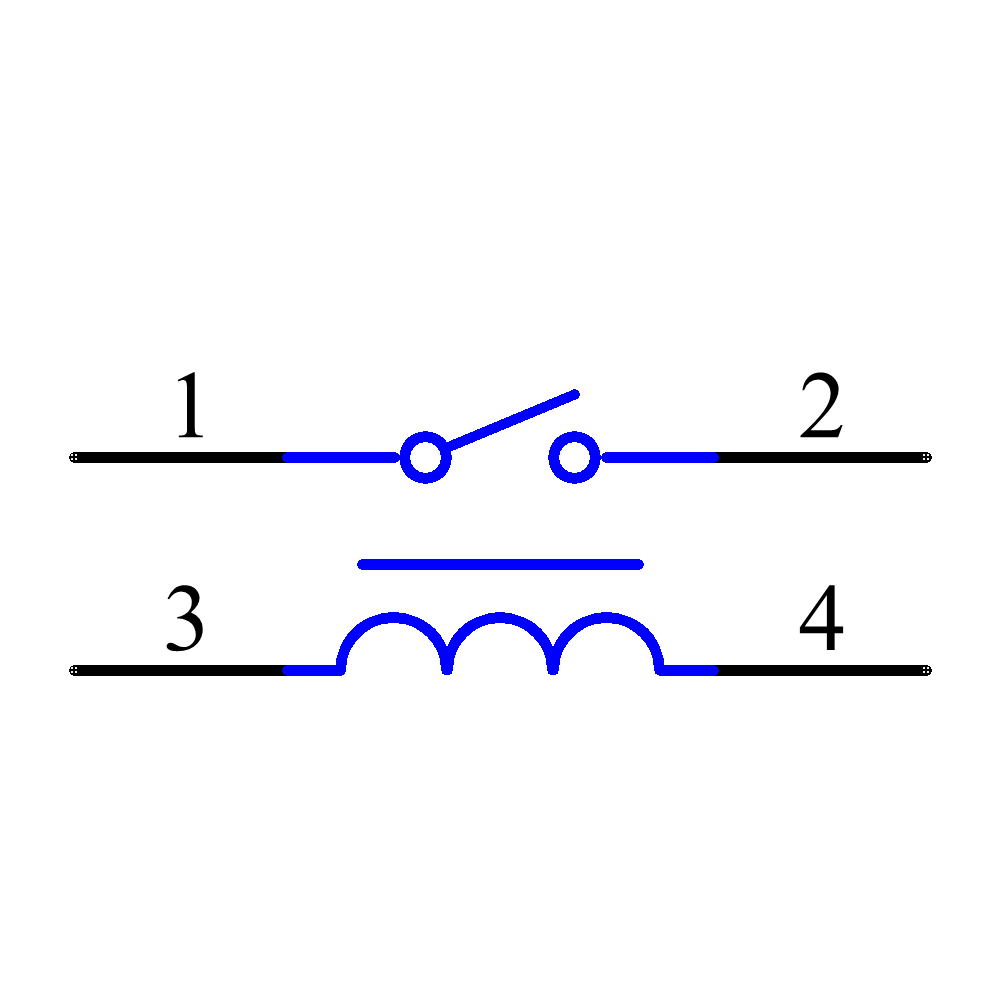

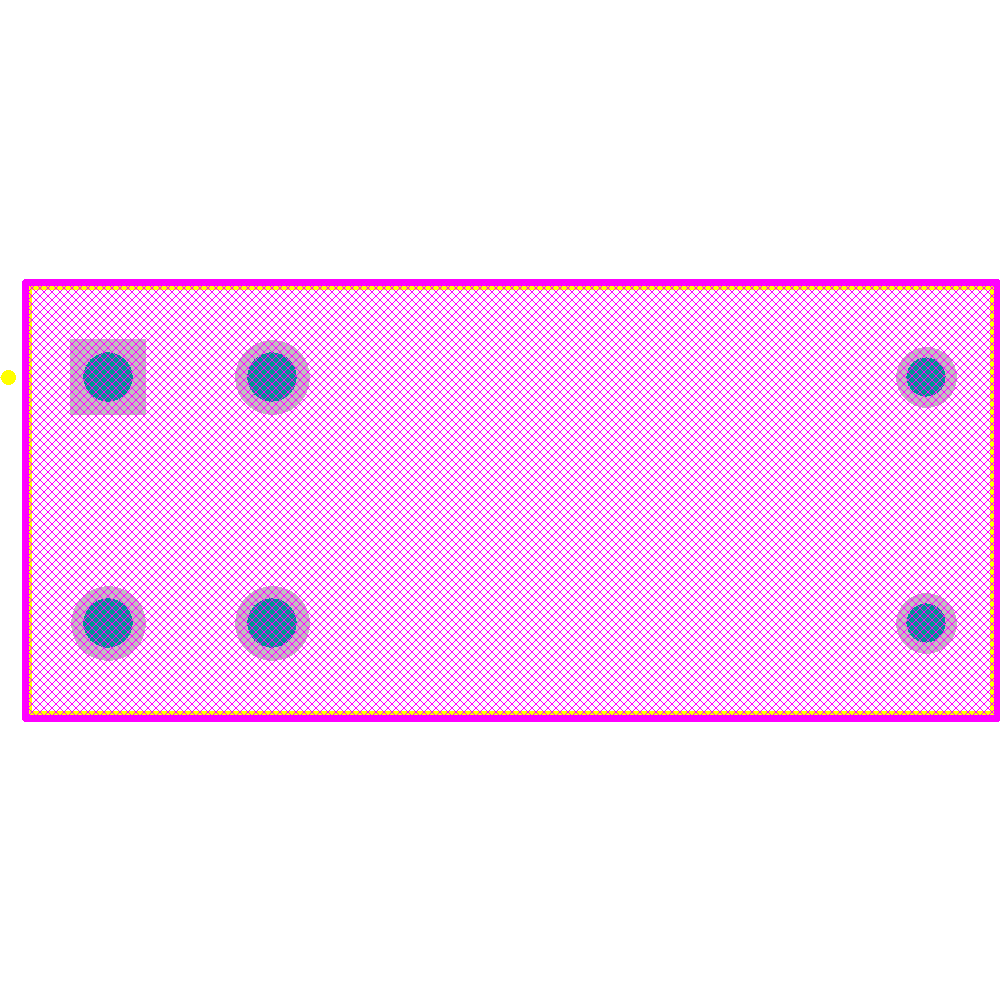

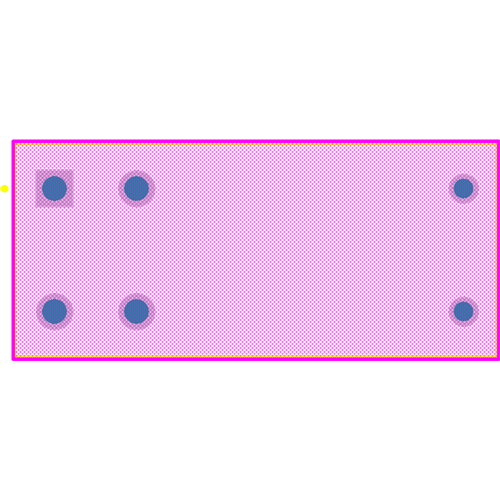

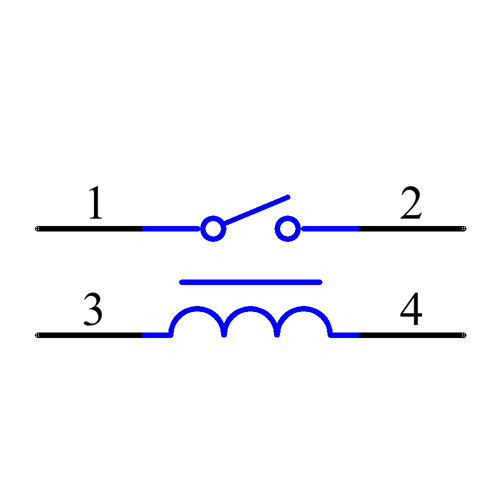

Images
