8-1393215-1 - TE Connectivity
Electromechanical Relay 24VDC 1.2KOhm 15A SPDT (( 28mm 10.4mm 25.1mm)) THT Power Relay

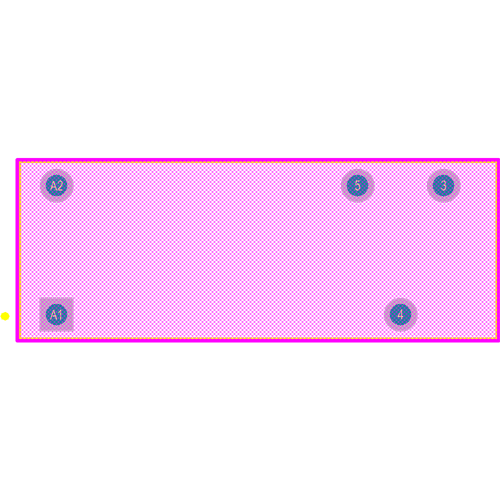

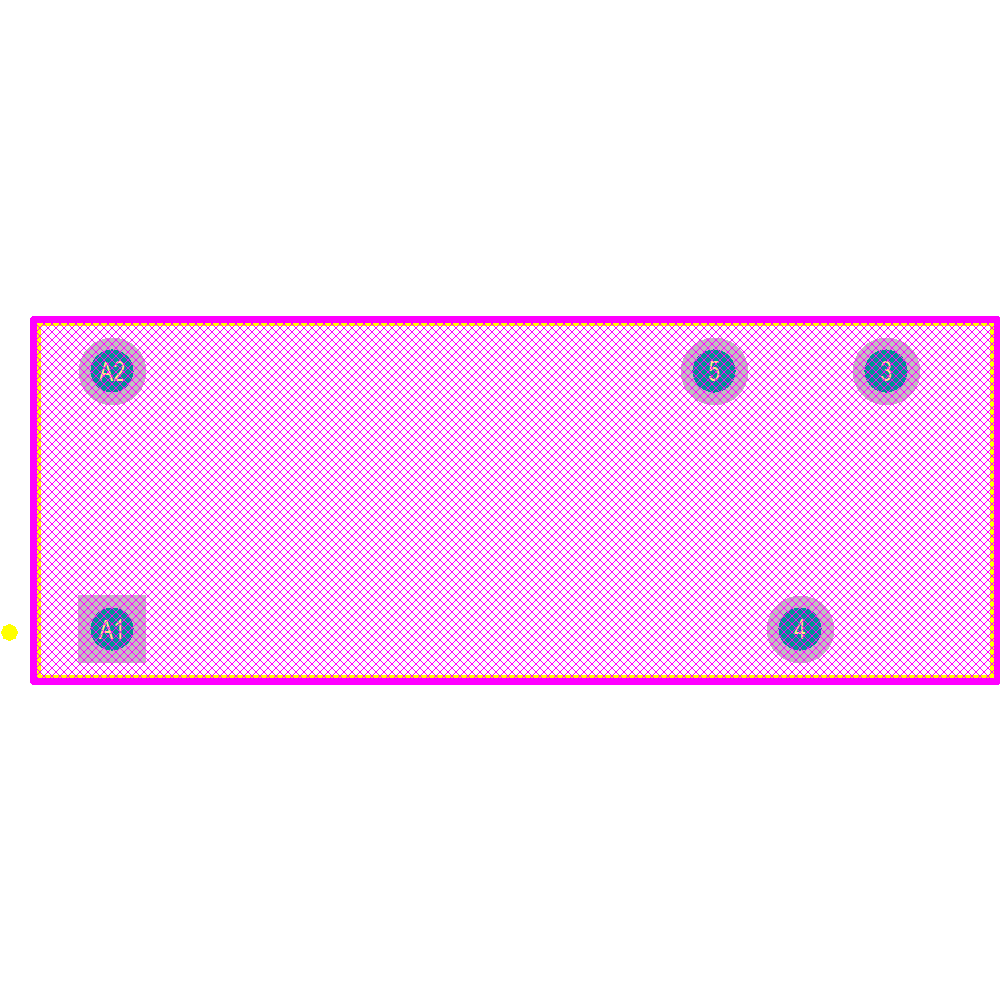

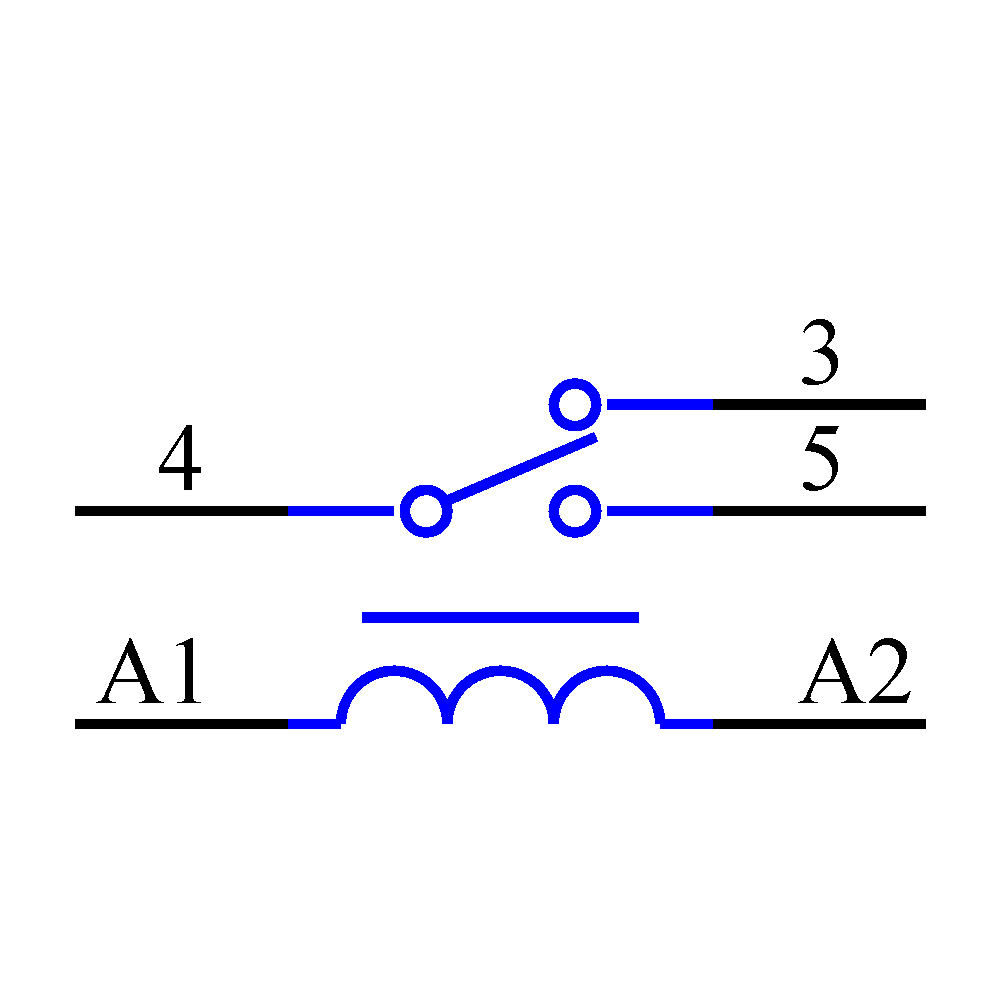

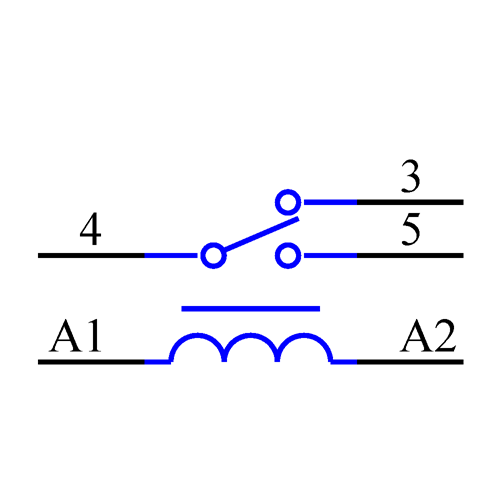

Technical Details
| Ambient Temperature Range High | 70°C |
| China RoHS | Compliant |
| Coil Current | 20mA |
| Coil Power | 480mW |
| Coil Resistance | 1.2kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 16V |
| Contact Current Rating | 8A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 8A |
| Depth | 10.4mm |
| Dropout Voltage | 2.4V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Compliant |
| Height | 25.1mm |
| Introduction Date | 2009-07-30 |
| Length | 28mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 8A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 400V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 7ms |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 3ms |
| RoHS | Compliant |
| Switching Capacity | 2kW |
| Termination | PCB |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 400V |
| Voltage Rating (DC) | 24V |
| Weight | 14g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
