9-1415520-1 - TE Connectivity
Power/Signal Relay, 1 Form B, Momentary, 5VDC (Coil), 403mW (Coil), 16A (Contact), Panel Mount
Technical Details
| Ambient Temperature Range High | 105°C |
| China RoHS | Compliant |
| Coil Current | 80mA |
| Coil Power | 403mW |
| Coil Resistance | 62Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3.5V |
| Contact Current Rating | 16A |
| Contact Voltage Rating (AC) | 400V |
| Current Rating | 16A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 16mm |
| Introduction Date | 2008-04-02 |
| Length | 29mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 16A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 1 |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | PCB |
| Throw Configuration | SPST |
| Weight | 20g |
| Width | 12.7mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

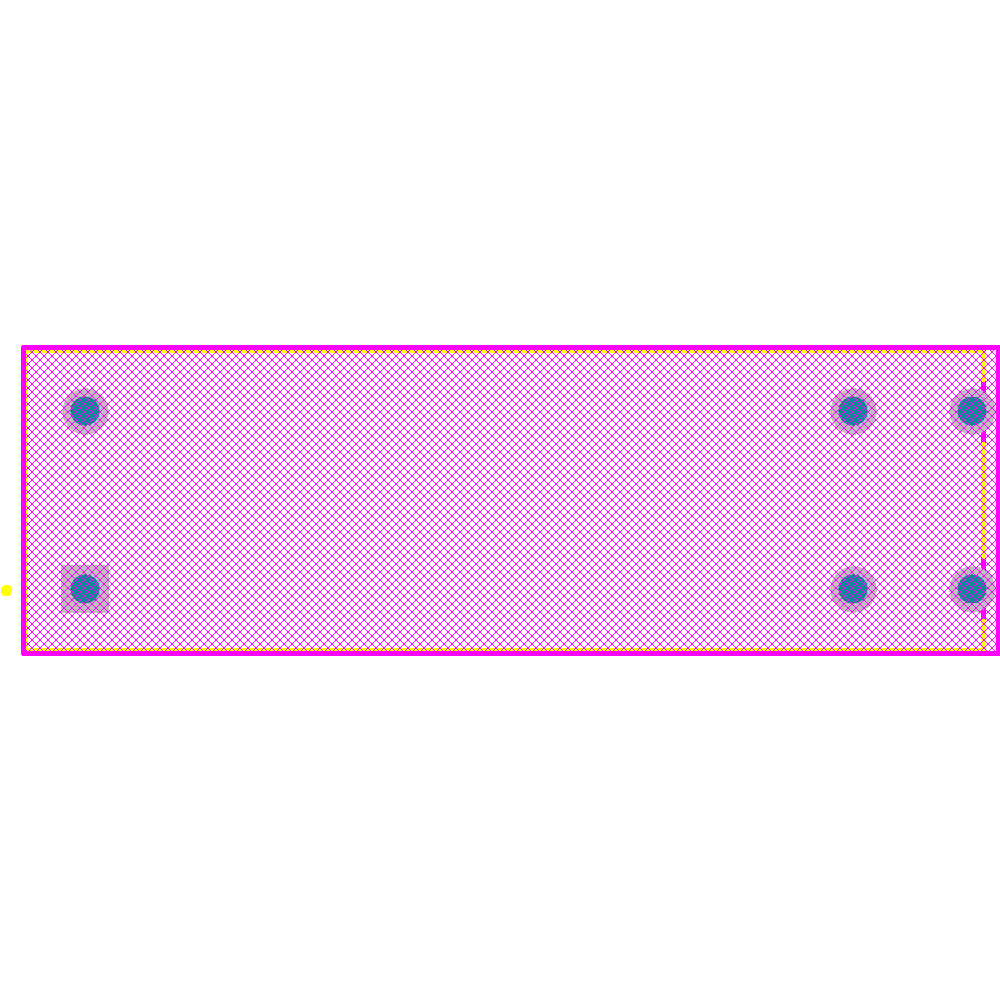

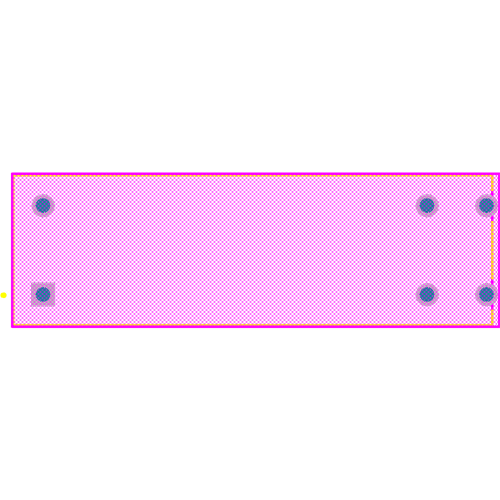

Images
