9-1419111-3 - TE Connectivity
Electromechanical Relay 24VDC 777Ohm 12A 4PDT(28x22.5x30)mm THT Industrial Relay
Technical Details
| Ambient Temperature Range High | 70°C |
| China RoHS | Compliant |
| Coil Current | 31mA |
| Coil Power | 741mW |
| Coil Resistance | 777Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 18V |
| Coil Voltage (DC) | 18V |
| Contact Current Rating | 6A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 240V |
| Current Rating | 6A |
| Depth | 22.5mm |
| Dropout Voltage | 2.4V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 29.4mm |
| Introduction Date | 2005-08-19 |
| Lead Free | Lead Free |
| Length | 28mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 240V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Contacts | 4 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operate Time | 15ms |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP40 |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 15ms |
| Response Time | 23ms |
| RoHS | Compliant |
| Sealable | RT2 |
| Switching Capacity | 1.5kW |
| Switching Current | 6A |
| Termination | PC Pin, PCB |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 240V |
| Weight | 30g |
| Width | 22.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

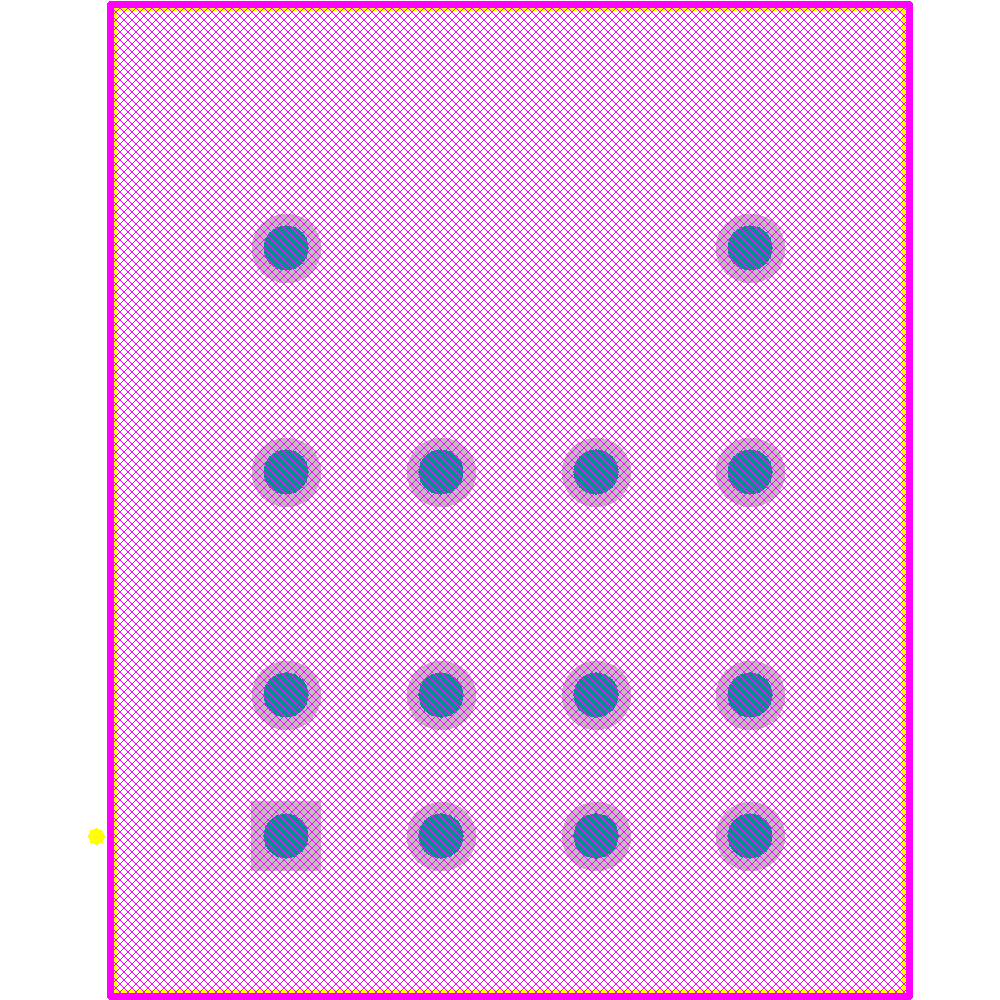

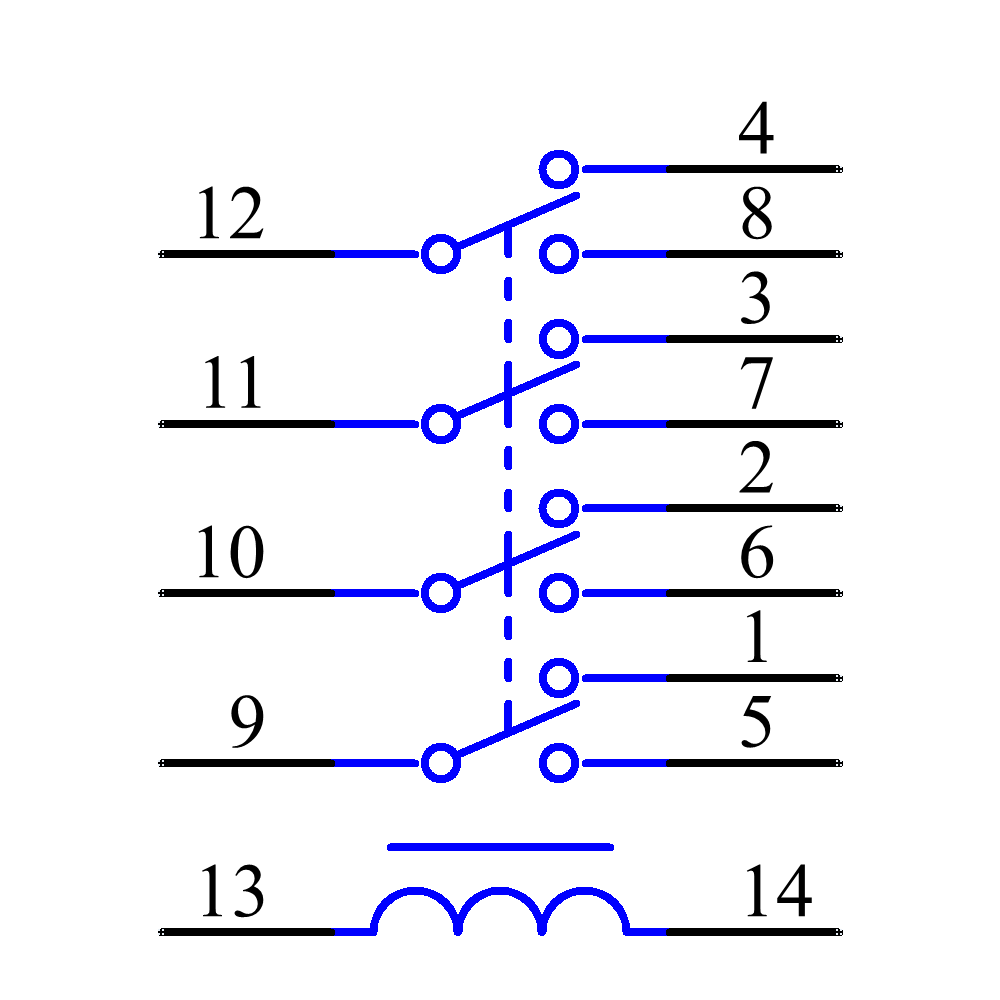

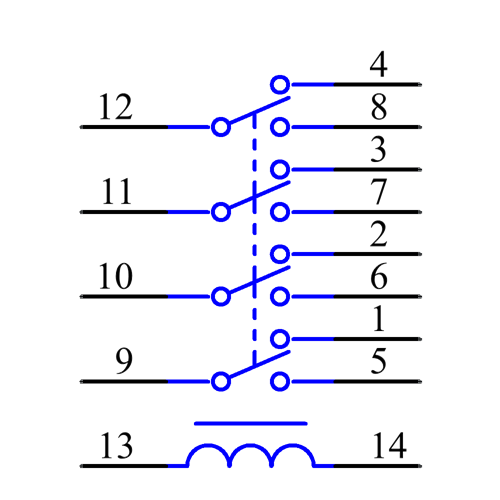

Images
