Electromechanical Relay 5VDC 62Ohm 8A DPDT (29x12.7x15.7)mm THT Miniature Relay

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
China RoHS Compliant
Coil Current 80mA
Coil Power 400mW
Coil Resistance 62Ω
Coil Type Non-Latching
Coil Voltage (DC) 3.5V
Contact Current Rating 8A
Contact Material Silver
Contact Voltage Rating (AC) 250V
Current Rating 8A
Dropout Voltage 500mV
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 10kcycles
ELV Compliant
Height 15.7mm
Harmonized Tariff Schedule (HTS) Code 8536.41.00.20
Introduction Date 2010-09-27
Lead Free Lead Free
Length 29mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Current Rating 8A
Max Operating Temperature 70°C
Max Voltage Rating (DC) 30V
Min Operating Temperature -40°C
Mount Through Hole
Number of Contacts 2
Number of Terminals 8
Operate Time 7ms
Packaging Carton
Power Consumption 400mW
REACH SVHC Yes
Relay Type General Purpose
Release Time 6ms
Response Time 8ms
RoHS Compliant
Sealable FLUX FREE SEALED
Termination PCB
Throw Configuration DPDT
Weight 13g
Width 12.7mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

TE Connectivity RT424005F | Newark

Newark

Datasheets

 Master Electronics
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production
Symbol

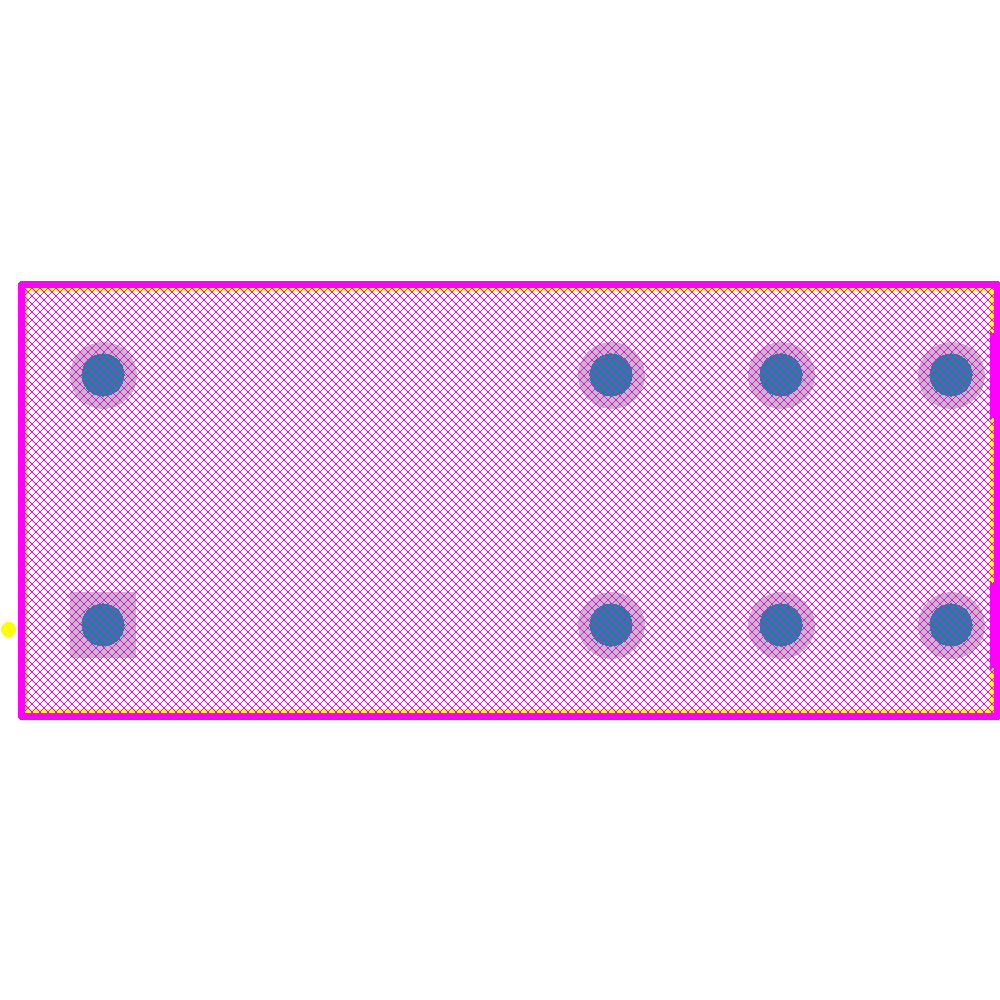

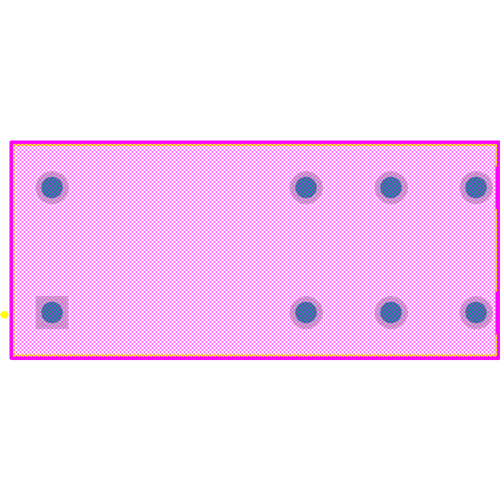

Footprint
