T77S1D3-12 - TE Connectivity
General Purpose Relay Single Pole Single Throw (SPST) Normally Open 12 volts at 3 Amps 720 Ohms
Technical Details
| Ambient Temperature Range High | 105°C |
| Approvals | CSA, UL |
| China RoHS | Compliant |
| Coil Current | 17mA |
| Coil Power | 200mW |
| Coil Resistance | 720Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 12V |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 3A |
| Contact Material | Silver |
| Contact Voltage Rating (AC) | 120V |
| Contact Voltage Rating (DC) | 30V |
| Current Rating | 3A |
| Depth | 10mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Compliant |
| Height | 14.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Introduction Date | 2005-06-08 |
| Lead Free | Lead Free |
| Length | 18.2mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Operate Time | 10ms |
| Power Consumption | 200mW |
| Power Rating | 200mW |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 4ms |
| Resistance | 720Ω |
| Response Time | 10ms |
| RoHS | Compliant |
| Sealable | IMMERSION CLEANABLE CASE |
| Termination | PCB |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| Weight | 9g |
| Width | 10.16mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

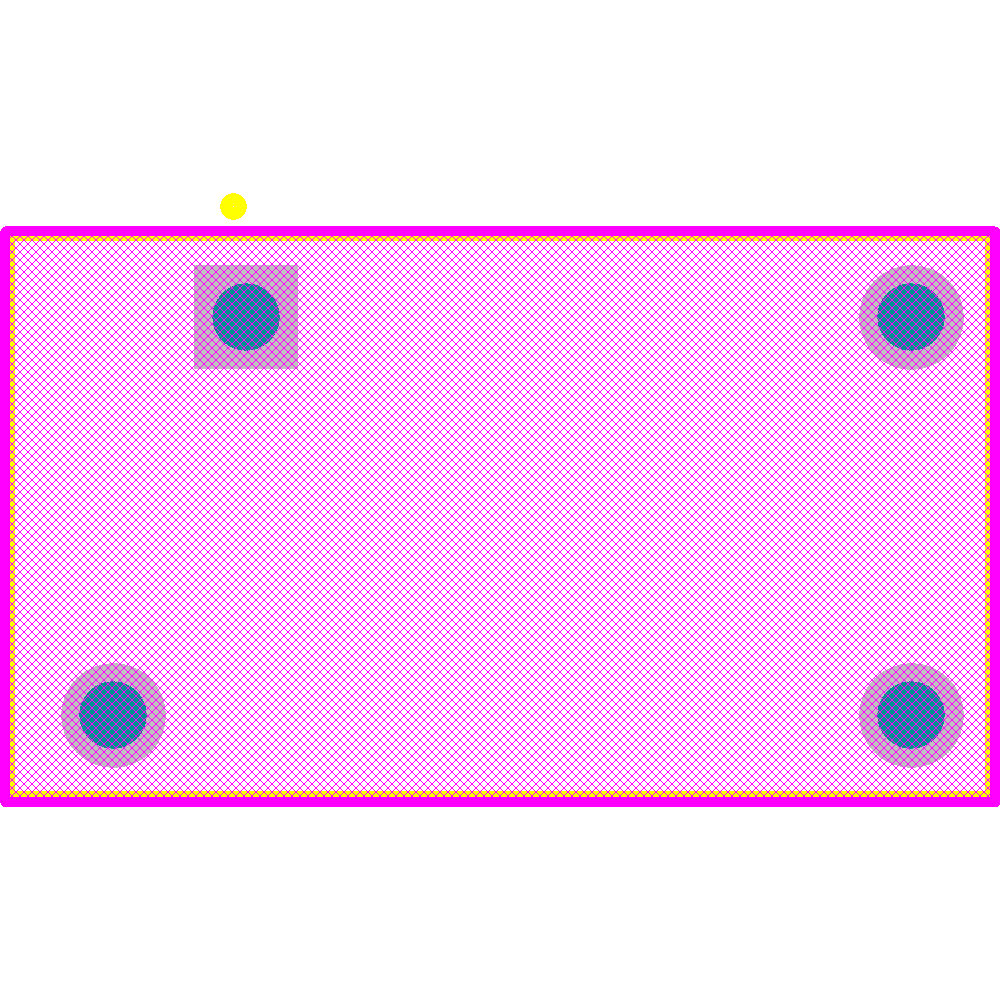

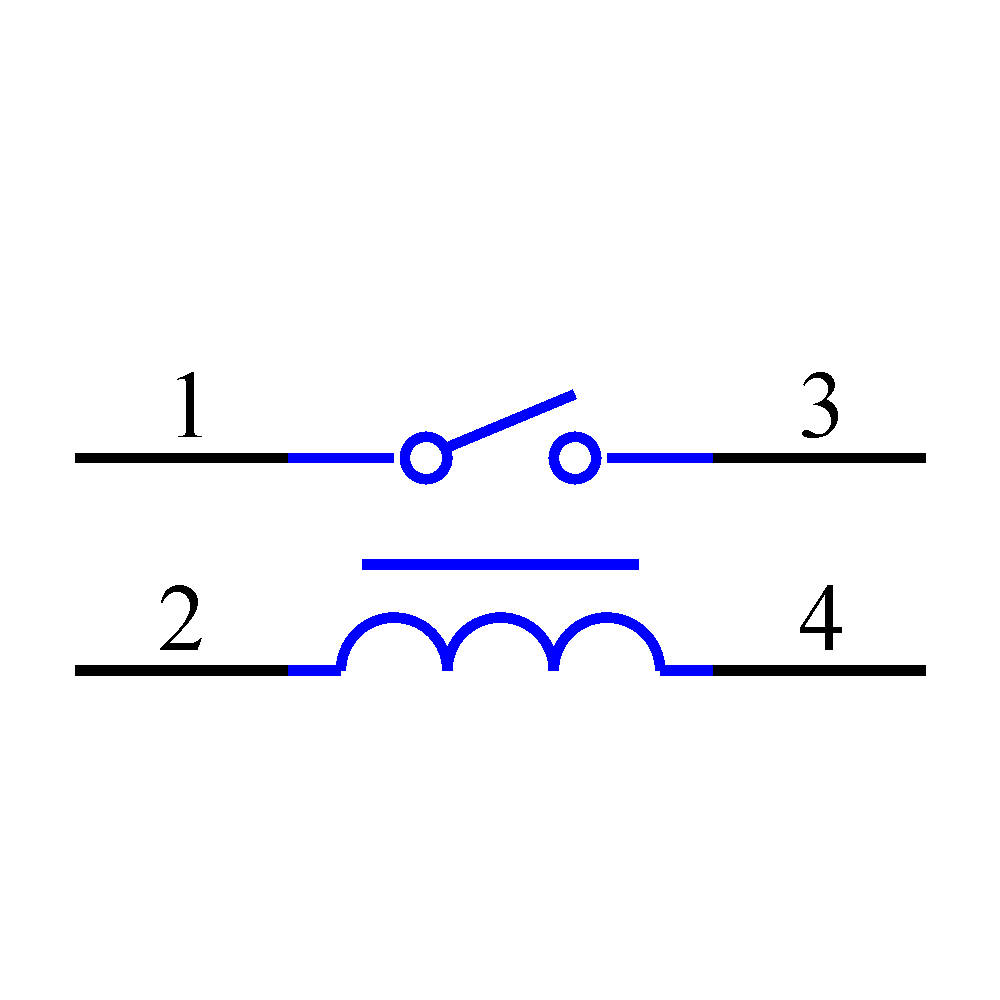

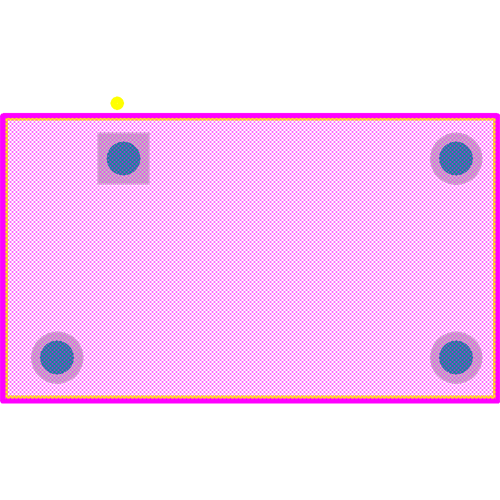

Images
