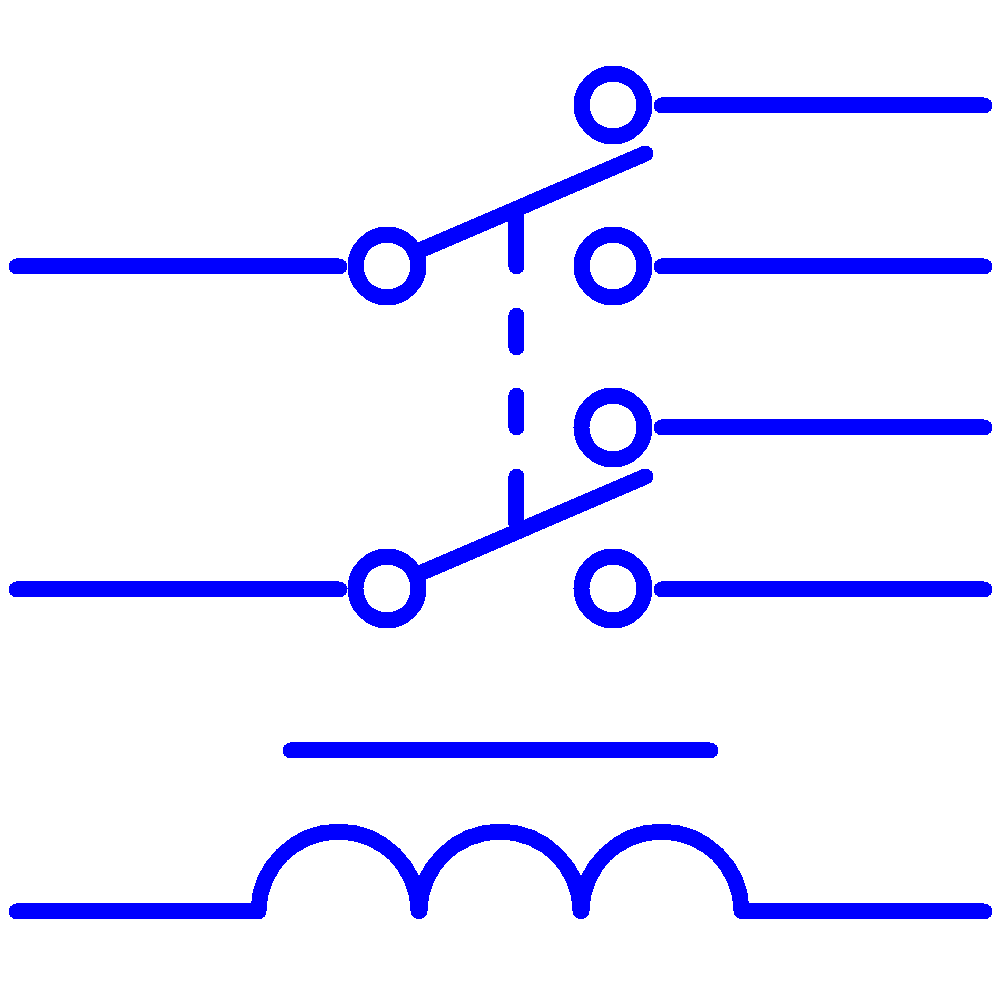

T92S11A22-120 - TE Connectivity
Power Relay 110/120VAC 40(NO)/3(NC)A DPDT (68.58mm 34.54mm 37.97mm) Flange
Technical Details
| Ambient Temperature Range High | 65°C |
| Case/Package | 120 |
| China RoHS | Non-Compliant |
| Coil Current | 33mA |
| Coil Power | 4W |
| Coil Resistance | 950Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 96V |
| Contact Current Rating | 30A |
| Contact Material | Cadmium, Silver |
| Contact Voltage Rating (AC) | 277V |
| Current Rating | 30A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| ELV | Non-Compliant |
| Height | 30.7mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.50 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2004-02-06 |
| Lead Free | Lead Free |
| Length | 52.3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Current Rating | 30A |
| Max Operating Temperature | 65°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 28V |
| Min Operating Temperature | -55°C |
| Mount | Flanges |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Power Consumption | 4W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Release Time | 25ms |
| Response Time | 25ms |
| RoHS | Compliant |
| Schedule B | 8536490075, 8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|8536490075|85 |
| Sealable | SEALED TYPE |
| Switching Current | 30A |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Weight | 86g |
| Width | 34.5mm |
