Electromechanical > Relays > Power Relays

T9GS1L14-5 - TE Connectivity

Power Relay, SPST-NO, 5 VDC, 30 A, T9G Series, Through Hole, Non Latching

Technical Details

Ambient Temperature Range High	105°C
China RoHS	Compliant
Coil Power	900mW
Coil Resistance	28Ω
Coil Type	Non-Latching
Coil Voltage (DC)	5V
Contact Current Rating	30A
Contact Voltage Rating (AC)	480V
Country of Origin	Czechia
Current Rating	30A
Export Control Classification Number (ECCN) Code	EAR99
Height	15.7mm
Introduction Date	2022-01-06
Length	29mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Current Rating	30A
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Number of Contacts	1
REACH SVHC	Yes
RoHS	Compliant
Switching Current	30A
Weight	18g

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Datasheets

Master Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

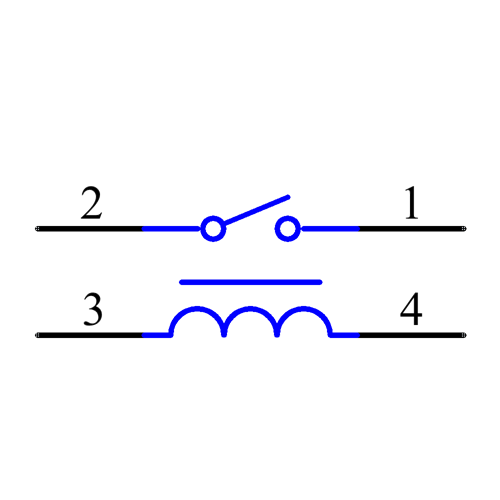

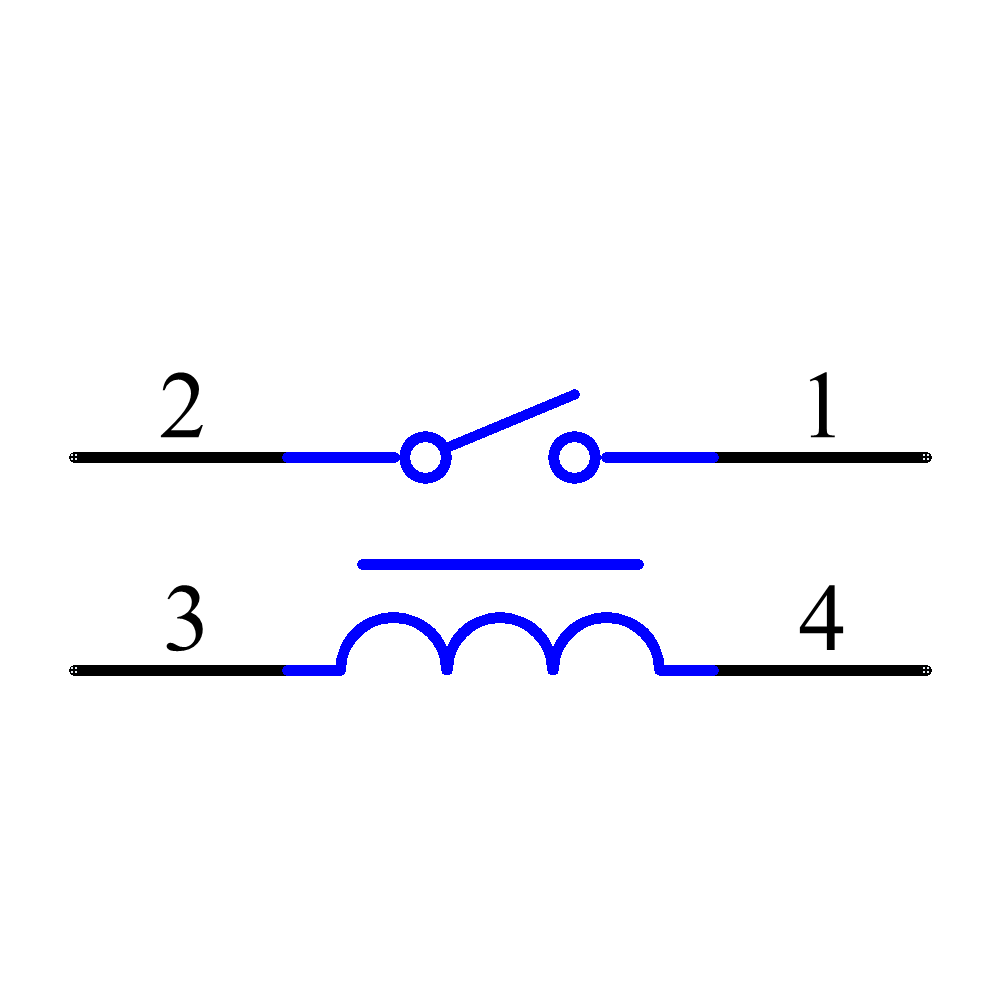

Symbol

T9GS1L14-5 Symbol - TE Connectivity

T9GS1L14-5 Symbol - TE Connectivity

T9GS1L14-5 Symbol - TE Connectivity

T9GS1L14-5 Symbol - TE Connectivity

‹ ›

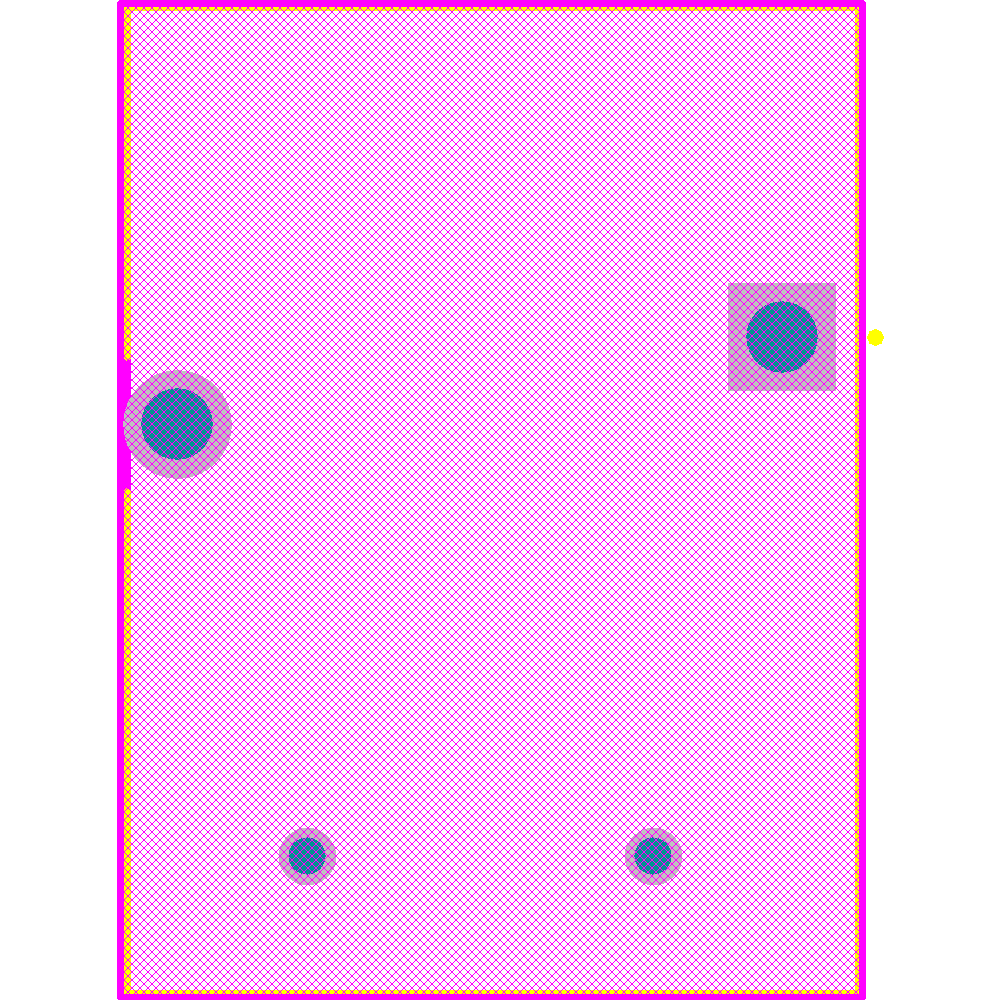

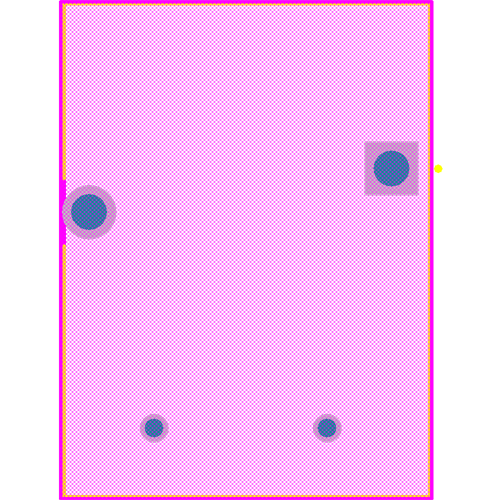

Footprint

T9GS1L14-5 Footprint - TE Connectivity

T9GS1L14-5 Footprint - TE Connectivity

T9GS1L14-5 Footprint - TE Connectivity

T9GS1L14-5 Footprint - TE Connectivity

‹ ›

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Master Electronics

US: 8480

$

3.11

2.86

2.86

2.38

2.09

Onlinecomponents.com

US: 8480

$

3.11

2.86

2.86

2.38

2.09

Farnell

DE: 2577

$

3.0572

2.4408

2.3422

2.2929

2.2436

2.2436

RS

DE: 696

$

5.7076

5.4241

5.4241

5.4241

5.4241

5.4241

RS

DE: 696

$

5.0234

4.5661

4.3331

4.1494

4.1494

TE Store

US: 5874

$

6.15

6.03

5.79

5.67

5.29

5.05

Verical

US: 12000

$

2.772

2.772

2.772

Verical

US: 6000

$

2.73

2.73

2.60

2.36

Verical

US: 2480

$

3.3647

2.6722

2.80

2.80

DigiKey

DE: 5874

$

4.3762

3.8918

3.5893

3.4662

3.0865

3.0865

TTI

US: 15330

$

2.33

2.33

2.33

2.33

2.33

Mouser

US: 3824

$

2.88

2.40

2.27

2.09

2.09

2.09

Heilind Europe

EU: 0

$

2.0263

TTI Europe

DE: 17500

$

1.6272

1.6272

Avnet

US: 0

$

1.6892

Newark

US: 2577

$

3.03

2.46

2.35

2.33

2.33

2.33

element14 APAC

SG: 2577

$

3.005

2.3979

2.2765

1.5253

1.5253

1.5253

Heilind Americas

US: 1365

$

1.4773

1.4773

1.4773

1.4773

1.4773

1.4773

Interstate Connecting Components

US: 409

$

1.4773

1.4773

1.4773

1.4773

1.4773

1.4773

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Component Stockers USA

US: 28412

$

2.65

1.73

1.73

1.62

1.57

1.82

UnikeyIC

SG: 696

$

6.8331

6.208

5.8934

5.6434

5.6434

LCSC

CN: 8

$

4.8271

4.1418

3.7355

3.3227

3.0486

3.0486

Bettlink

HK: 5913

$

3.0324

2.66

2.66

2.4182

2.1321

2.0114

Cytech Systems

CN: 3000

$

3.972

3.7337

3.7337

3.5351

3.3365

3.1379

Abacus Technologies

US: 12830

$

Sourcengine

US: 12000

$
