LM56CIM - Texas Instruments
3°C Dual output resistor-programmable temperature switch with fan control 8-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Height | 1.75mm |
| Interface | Analog |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | LIFEBUY |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 10V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 230µA |
| Number of Pins | 8 |
| Output Type | Analog Voltage, Digital |
| Output Voltage | 10V |
| Quiescent Current | 230µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Thickness | 1.58mm |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

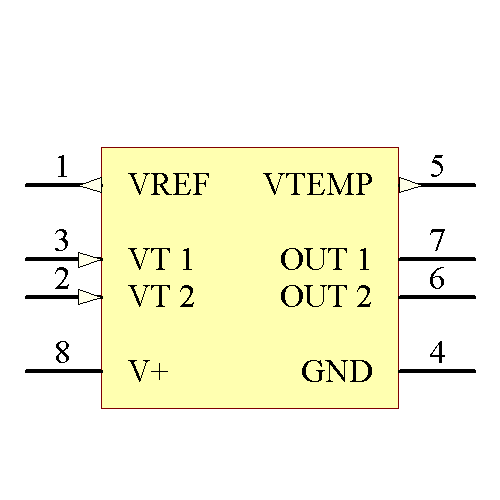

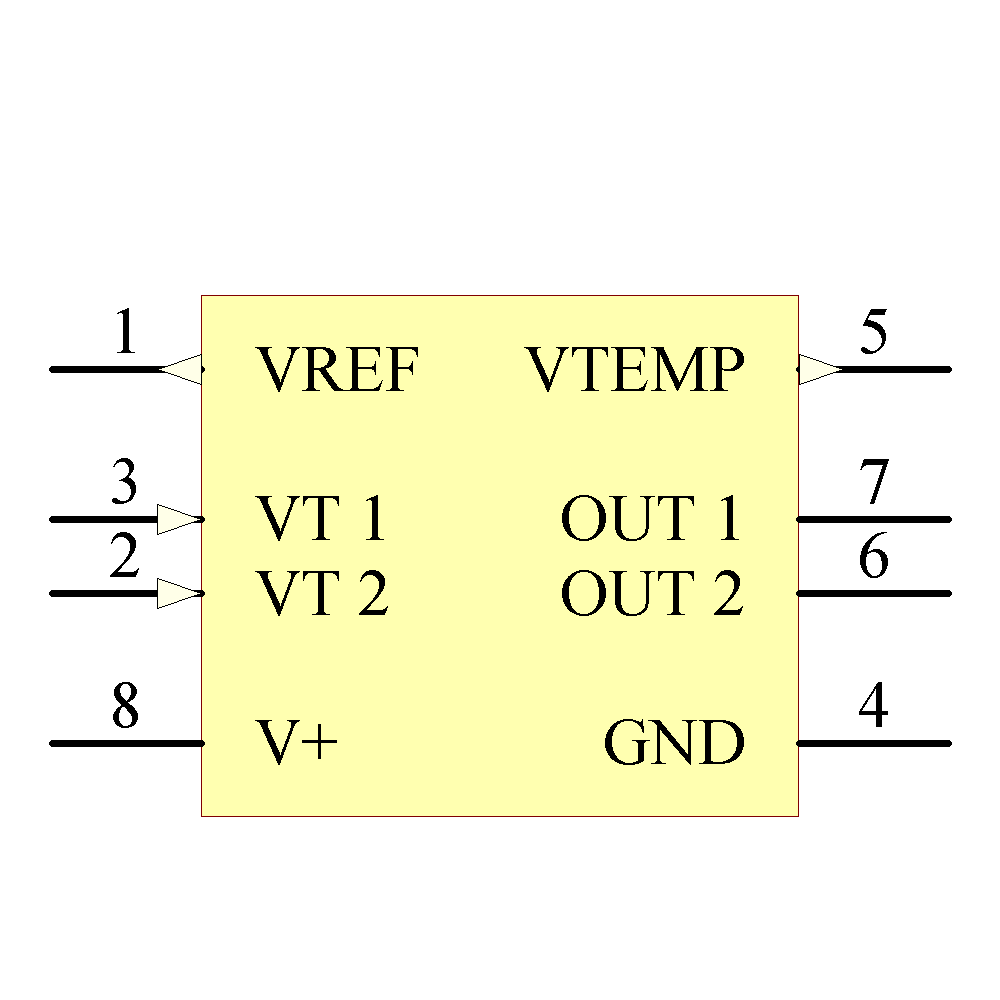

Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 34
|
$ | 1.63 | 1.55 | 1.39 | 1.30 | ||||
