| Breakdown Voltage | 40V |

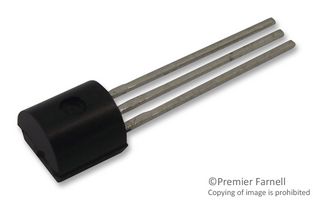

| Case/Package | TO-92 |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 3mA |
| Country of Origin | Thailand |
| Current Rating | 10mA |
| Drain to Source Voltage (Vdss) | 40V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | 40V |
| Height | 5.33mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.21.00.95 |
| Input Capacitance | 7pF |
| Introduction Date | 1990-06-11 |
| Lead Free | Lead Free |
| Length | 5.21mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 310mW |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 350mW |
| REACH SVHC | No |
| RoHS | Compliant |
| Voltage Rating (DC) | -40V |
| Weight | 201mg |
| Width | 4.19mm |
