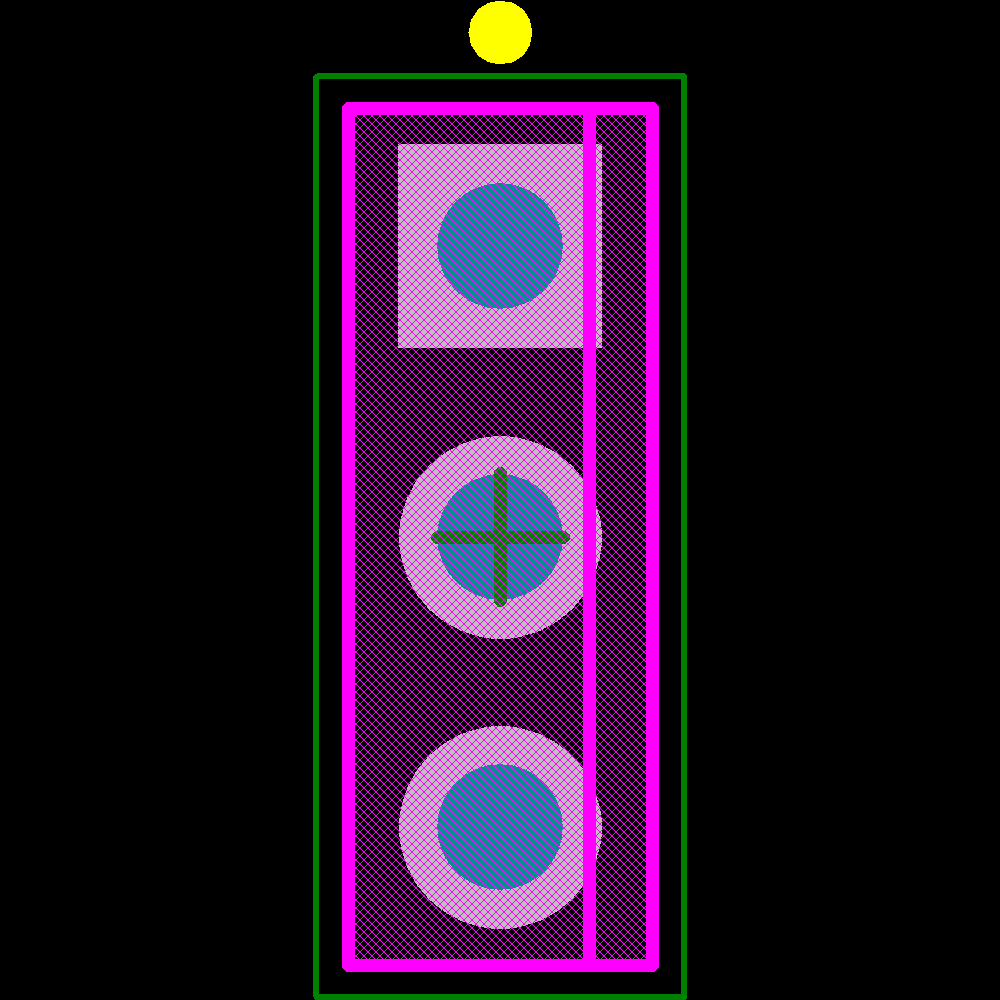

| Case/Package | TO-251 |
| Continuous Drain Current (ID) | 25A |
| Current Rating | -25A |
| Drain to Source Breakdown Voltage | -30V |
| Drain to Source Resistance | 80mΩ |
| Drain to Source Voltage (Vdss) | 30V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 16ns |
| Gate to Source Voltage (Vgs) | 15V |
| Input Capacitance | 1.26nF |
| Introduction Date | 2002-11-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 75W |
| Min Breakdown Voltage | 30V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 75W |
| Rds On Max | 80mΩ |
| REACH SVHC | No |
| Rise Time | 37ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 15ns |
| Voltage Rating (DC) | -30V |
