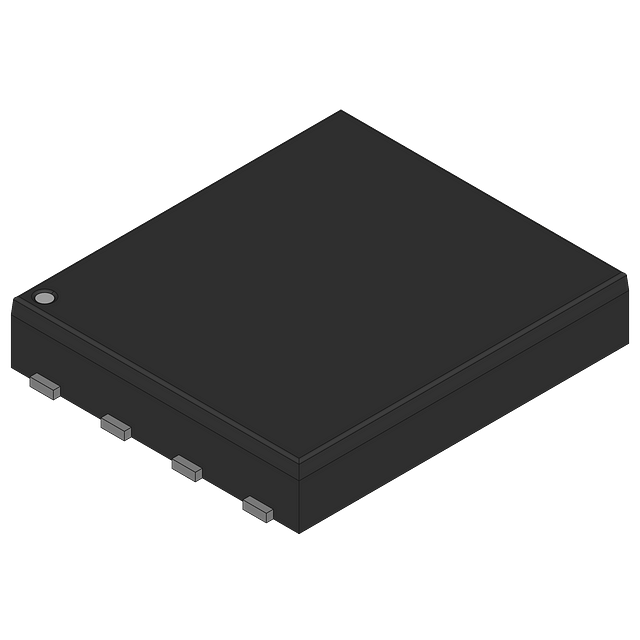

| Case/Package | DFN |
| China RoHS | Non-Compliant |
| Continuous Drain Current (ID) | 9.7A |
| Country of Origin | Malaysia |
| Drain to Source Breakdown Voltage | 30V |
| Drain to Source Resistance | 8.5mΩ |
| Drain to Source Voltage (Vdss) | 30V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 6.2ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 1.264nF |
| Introduction Date | 2011-02-04 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 23.2W |
| Min Breakdown Voltage | 30V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 5 |
| Number of Terminals | 6 |
| Packaging | Tape and Reel |
| Power Dissipation | 23.2W |
| Radiation Hardening | No |
| Rds On Max | 5.6mΩ |
| REACH SVHC | No |
| Rise Time | 32.7ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 16.4ns |
| Turn-On Delay Time | 9.5ns |
