| Case/Package |

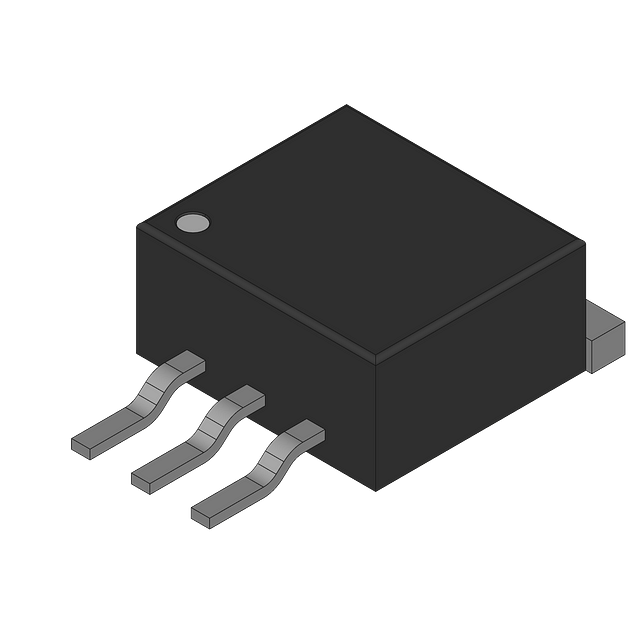

TO-263-3 |
| Continuous Drain Current (ID) |
18A |
| Drain to Source Breakdown Voltage |
-60V |
| Drain to Source Resistance |
140mΩ |
| Drain to Source Voltage (Vdss) |
60V |
| Export Control Classification Number (ECCN) Code |
EAR99 |
| Element Configuration |
Single |
| Fall Time |
28ns |
| Gate to Source Voltage (Vgs) |
30V |
| Input Capacitance |
1.155nF |
| Introduction Date |
2002-07-27 |
| Lifecycle Status |
Obsolete |
| Max Operating Temperature |
175°C |
| Max Power Dissipation |
82W |
| Min Breakdown Voltage |
60V |
| Min Operating Temperature |
-55°C |
| Mount |
Surface Mount |
| Number of Elements |
1 |
| Number of Terminals |
2 |
| Packaging |
Tape and Reel |
| Rds On Max |
140mΩ |
| REACH SVHC |
No |
| Rise Time |
24ns |
| RoHS |
Compliant |
| Turn-Off Delay Time |
43ns |
