Passive Components > Capacitors > Ceramic Capacitors

08051A471JAT2A - Kyocera AVX

Cap Ceramic 470pF 100V C0G 5% Pad SMD 0805 125°C T/R

Technical Details

Capacitance	470pF
Case Code (Imperial)	0805
Case Code (Metric)	2012
Case/Package	0805
Construction	Flat
Depth	1.25mm
Dielectric	C0G
Dissipation Factor	2.5%
Height	0.94mm
Insulation Resistance	100GR
Length	2.01mm
Material	Ceramic
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Surface Mount, PCB
Number of Pins	2
Package Quantity	4000
Packaging	Tape and Reel
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Size	0.94mm
Temperature Coefficient	30ppm/°C
Termination	SMD/SMT
Thickness	0.037inch
Tolerance	5%
Voltage	100V
Voltage Rating	100V
Voltage Rating (AC)	100V
Voltage Rating (DC)	100V
Width	1.25mm

Compliance

RoHS : Compliant

Radiation Hardening : No

Images

Kyocera AVX 08051A471JAT2A | Mouser

Mouser

Kyocera AVX 08051A471JAT2A | Distrelec

Distrelec

Kyocera AVX 08051A471JAT2A | Future Electronics

Future Electronics

Kyocera AVX 08051A471JAT2A | Element14

Element14

Datasheets

Avnet

08051A471JAT2A datasheet (pdf, 118.9 KB)

Mouser

08051A471JAT2A datasheet (pdf, 145.4 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

08051A471JAT2A Symbol - Kyocera AVX

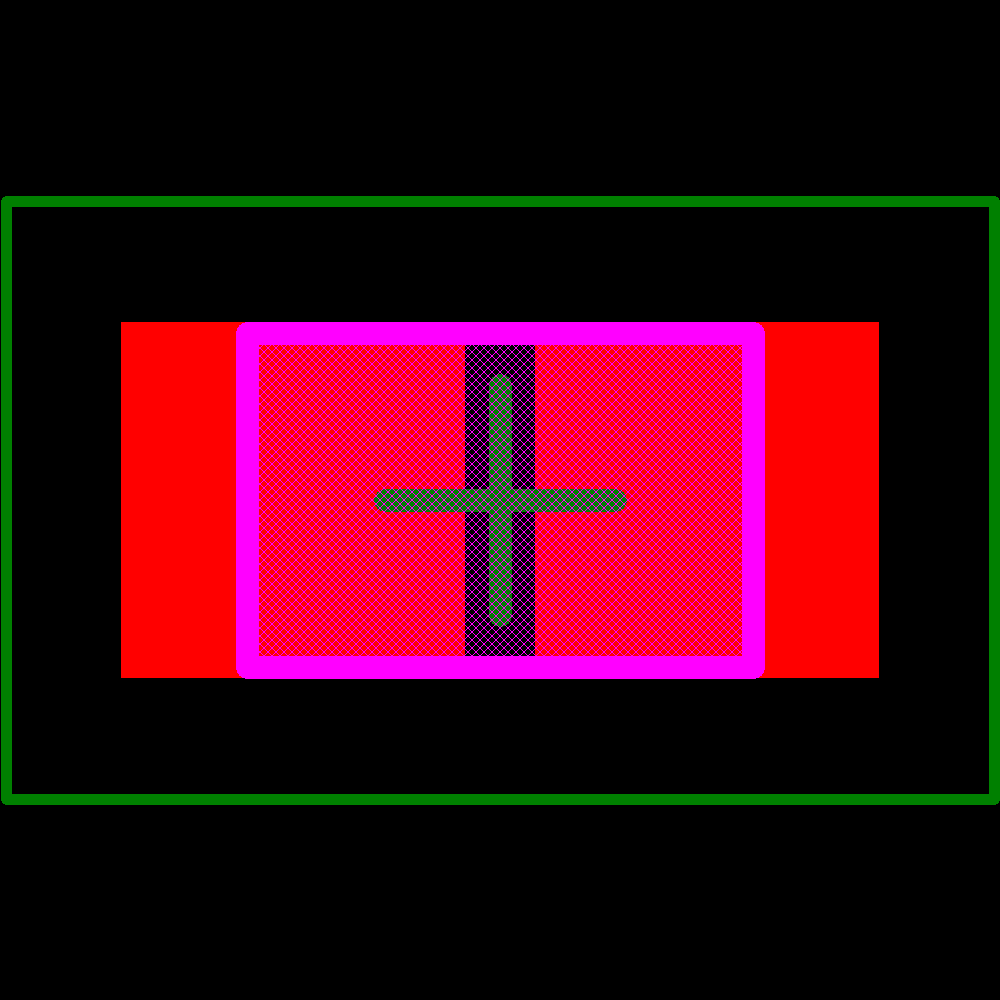

Footprint

08051A471JAT2A Footprint - Kyocera AVX

08051A471JAT2A Footprint - Kyocera AVX

08051A471JAT2A Footprint - Kyocera AVX

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Murata	GRM2165C2A471JA01D	Not Recommended for New Design
Vishay Vitramon	VJ0805A471JFBAT	Volume Production
Kyocera AVX	08051A471J4T2A	Volume Production
Kyocera AVX	LD051A471JAB2A	Volume Production
Kyocera AVX	LD051A471JAB4A	Volume Production
Kyocera AVX	LD051A471FAB2A	Volume Production
Kyocera AVX	CDR31BP471BJWS\M500	Volume Production
Vishay Vitramon	VJ0805A471JXBCW1BC	Volume Production
Vishay Vitramon	VJ0805A471GXBCW1BC	Volume Production
Vishay Vitramon	VJ0805A471FXBCW1BC	Volume Production

See more alternatives See less alternatives

Related Parts
