ADA4851-4YRUZ-RL - Analog Devices
Op Amp Quad High Speed Amplifier R-R O/P ±6V/12V Automotive 14-Pin TSSOP T/R
Technical Details
| -3db Bandwidth | 105MHz |
| Case/Package | TSSOP |
| Common Mode Rejection Ratio | 105dB |
| Contact Plating | Tin, Matte |
| Gain Bandwidth Product | 70MHz |
| Input Bias Current | 1.8uA |
| Input Capacitance | 1.2pF |
| Input Offset Voltage (Vos) | 3.5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 6V |
| Min Dual Supply Voltage | 1.35V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2.7V |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Pins | 14 |
| Operating Supply Current | 12.8mA |
| Output Current | 5mA |
| Output Current per Channel | 83mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 101dB |
| Quiescent Current | 3.2mA |
| RoHS Compliant | Yes |
| Settling Time | 55ns |
| Slew Rate | 375V/µs |
| Supply Current | 12.8mA |
| Voltage Gain | 107dB |
Compliance
RoHS : Compliant

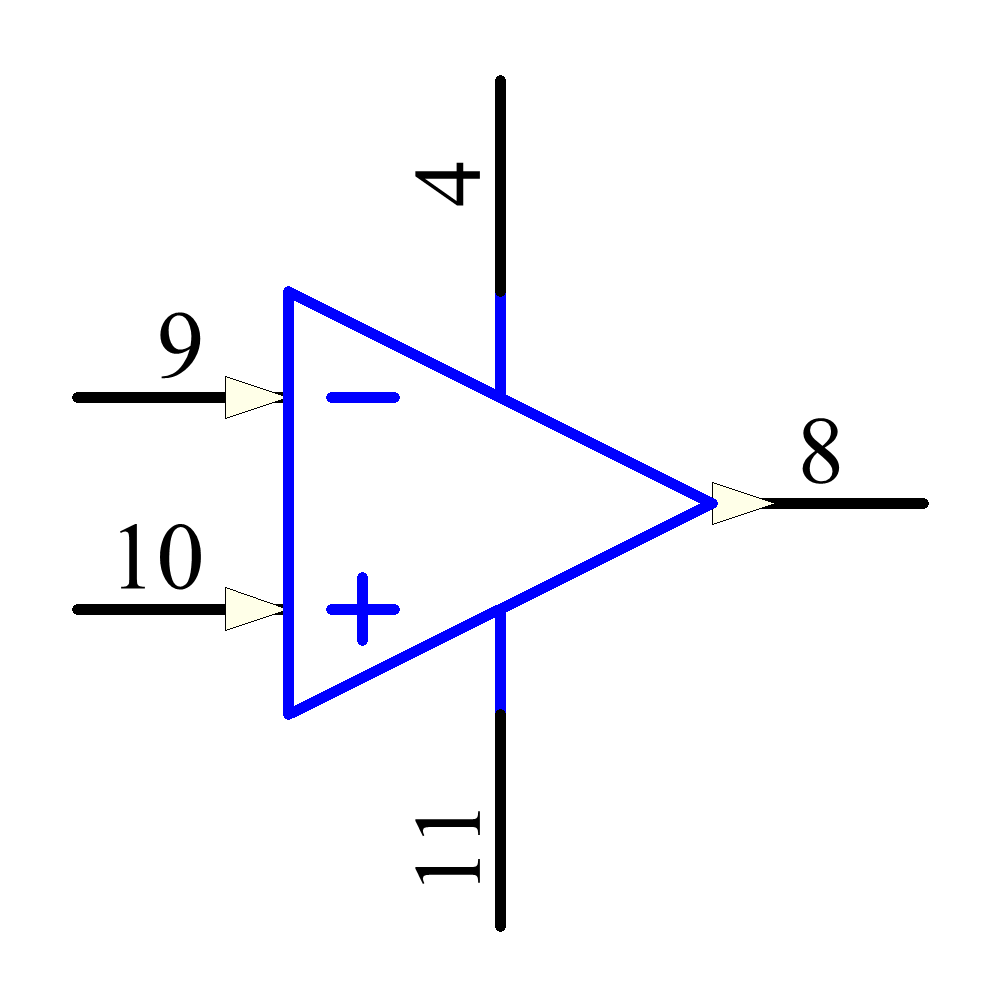

Images
