Technical Details
| Actuator Length | 1.4986mm |
| Case/Package | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Plating | Silver |
| Contact Resistance | 100mΩ |
| Current Rating | 50mA |
| Depth | 6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 3.5052mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-14 |
| Lead Free | Lead Free |
| Length | 6.604mm |
| Lifecycle Status | Production |
| Max Current Rating | 50mA |
| Max Operating Temperature | 90°C |
| Max Voltage Rating (DC) | 16V |
| Mechanical Life | 100kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Operating Force | 2.45N |
| Orientation | Straight |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Voltage Rating (DC) | 16V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
Images

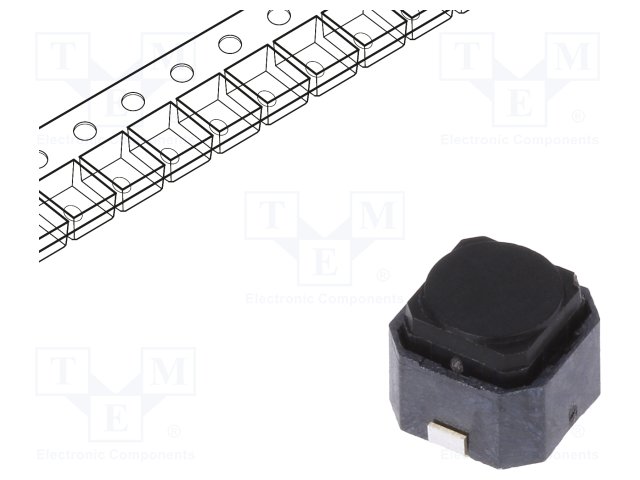

TME
