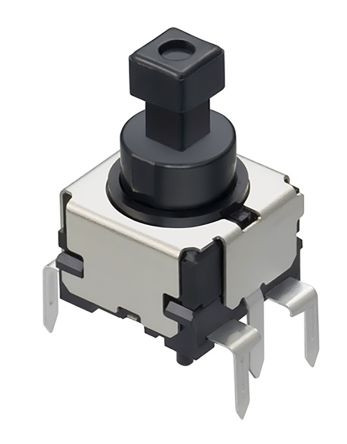

SPEF210101 - ALPS
Switch Push Button N.O./N.C. SPDT Square Plunger 1A 14.5VDC Latching Gull Wing SMD T/R
Technical Details
| Actuator Length | 5.0038mm |
| Case/Package | SMD/SMT |
| Contact Resistance | 100mΩ |
| Current Rating | 1A |
| Depth | 13.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 30kcycles |
| Height | 6.9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated |
| Insulation Resistance | 3MΩ |
| Introduction Date | 2015-04-16 |
| Lead Free | Lead Free |
| Length | 9.398mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 14.5V |
| Min Operating Temperature | -40°C |
| Operating Force | 3N |
| Packaging | Tape & Reel |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 14.5V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
