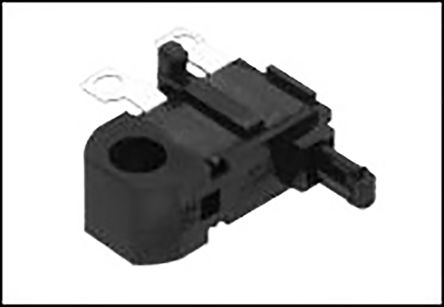

SPPB120200 - ALPS
Switch Detector N.O. SPST Plunger Solder Lug 0.1A 30VDC Screw Mount Bulk
Technical Details
| Actuator Length | 2.5908mm |
| Contact Resistance | 2Ω |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 4.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-17 |
| Length | 7.65mm |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 50kcycles |
| Min Operating Temperature | -40°C |
| Number of Positions | 2 |
| Number of Terminals | 2 |
| Operating Force | 350mN |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pretravel | 2.15mm |
| RoHS | Compliant |
| Termination | PCB |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
Images
Onlinecomponents.com
Authorized Distributors
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Component Stockers USA |
US: 64
|
$ | 0.66 | 0.55 | 0.55 | 0.48 | 0.48 | 0.48 | ||
| Classic Components |
US: 2028
|
$ | 1.37 | 1.37 | 1.37 | |||||
| Abacus Technologies |
US: 0
|
$ | ||||||||
