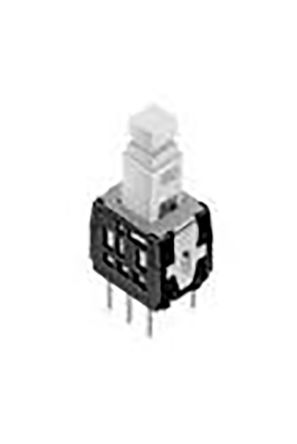

SPPH430100 - ALPS
Switch Push Button N.O./N.C. DPDT Plunger 0.1A 30VDC Latching PC Pins Thru-Hole Bulk
Technical Details
| Actuator Length | 3.9878mm |
| Contact Current Rating | 100mA |
| Contact Resistance | 100mΩ |
| Current Rating | 100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 8.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-16 |
| Length | 8.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Number of Positions | 2 |
| Operating Force | 3N |
| Orientation | Straight |
| Radiation Hardening | No |
| RoHS | Compliant |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (DC) | 30V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
