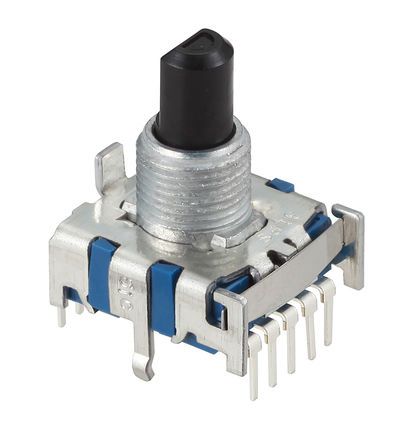

SRBV170701 - ALPS
Rotary Switch, 1 Pole, 7Pos, 0.3A, 16Vdc Rohs Compliant: Yes |Alps Alpine SRBV170701
Technical Details
| Actuator Length | 8.001mm |
| Contact Resistance | 150mΩ |
| Contact Style | Non-Shorting |
| Current Rating | 300mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 7.493mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Index Angle | 30° |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-21 |
| Length | 18.4912mm |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 16V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -10°C |
| Mount | Panel, Through Hole |
| Number of Circuits | 1 |
| Number of Decks | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 7 |
| Orientation | Straight |
| RoHS | Compliant |
| Termination | PC Pins |
| Throw Configuration | SP7T |
| Voltage Rating | 16V |
| Voltage Rating (AC) | 100V |
| Voltage Rating (DC) | 16V |
Compliance
RoHS : Unconfirmed
