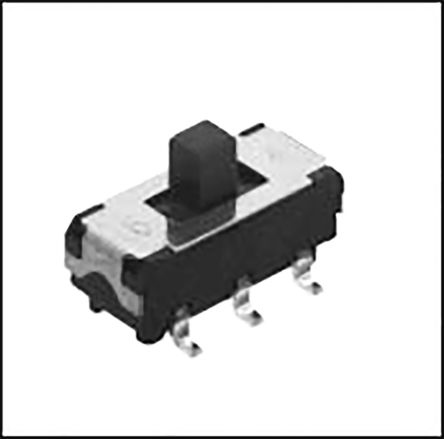

SSSS213202 - ALPS
Slide Switch, 1 Positions, SPDT, Latched, 0.3A, 6VDC, Solder Terminal, Surface Mount-straight
Technical Details
| Actuator Length | 2.0066mm |
| Contact Current Rating | 300mA |
| Contact Resistance | 130mΩ |
| Current Rating | 300mA |
| Depth | 5mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100cycles |
| Height | 3.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Illumination Type | Non-Illuminated |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2015-04-23 |
| Length | 8.5mm |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 6V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Pins | 2 |
| Number of Positions | 1 |
| Operating Force | 3N |
| Orientation | Straight |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 6V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
