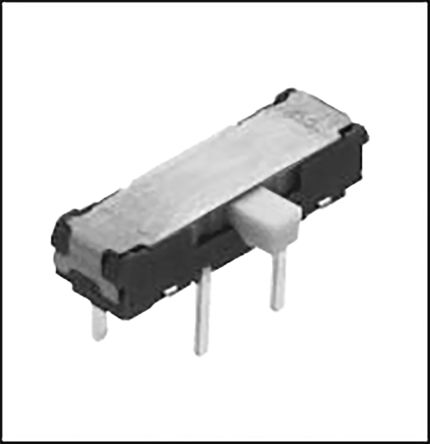

SSSS213800 - ALPS
Slide Switch, 1 Positions, SP3T, Latched, 0.3A, 6VDC, Solder Terminal, Surface Mount-right Angle
Technical Details
| Actuator Length | 2.0066mm |
| Contact Resistance | 130mΩ |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 3.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2019-02-05 |
| Length | 13mm |
| Lifecycle Status | Production |
| Max Current Rating | 300mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 6V |
| Min Operating Temperature | -40°C |
| Number of Positions | 1 |
| Operating Force | 2.5N |
| RoHS | Compliant |
| Throw Configuration | SP3T |
Compliance
RoHS : Unconfirmed
