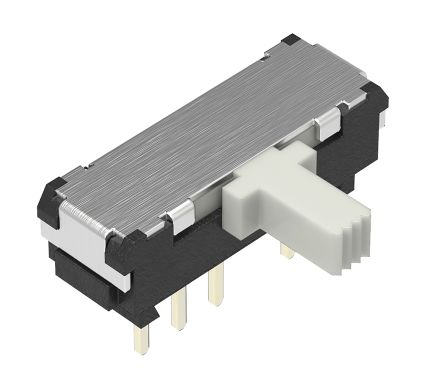

SSSS91B600 - ALPS
Switch Slide SP3T Side Slide 0.1A 12VDC 10000Cycles PC Pins Thru-Hole Bulk
Technical Details
| Actuator Length | 5.0038mm |
| Contact Current Rating | 100mA |
| Contact Resistance | 80mΩ |
| Depth | 9.7mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 10kcycles |
| Height | 4.699mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.50.70.00 |
| Insulation Resistance | 100MΩ |
| Introduction Date | 2007-08-09 |
| Length | 13.9954mm |
| Lifecycle Status | Production |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 12V |
| Mechanical Life | 10kcycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 1 |
| Operating Force | 4.5N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Termination | PC Pins |
| Throw Configuration | SP3T |
| Type | General Purpose |
| Voltage Rating (AC) | 12V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
