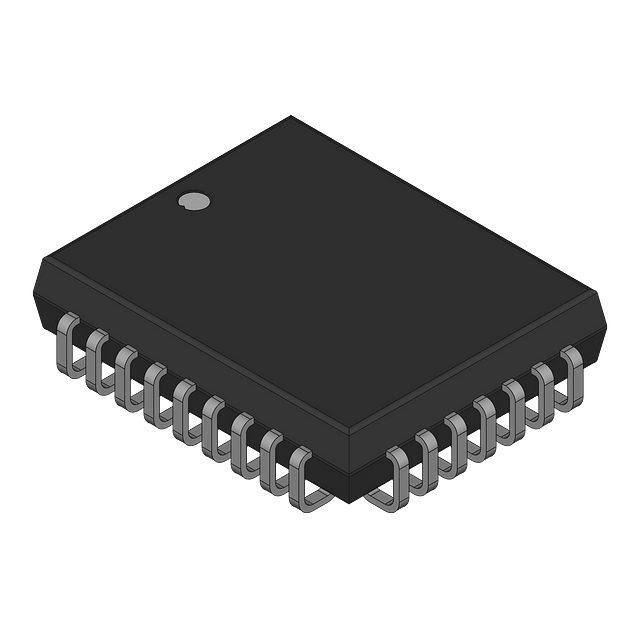

AM7202A-50JC - AMD
FIFO Memory, Asynchronous, 9 Kbit, 1K x 9bit, 50 ns, 15.3 MHz, 5 V, 32 Pins, PLCC
Technical Details
| Access Time | 50ns |
| China RoHS | Non-Compliant |
| Cycle Time | 65ns |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 3.556mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.32.00.71 |
| Interface | Parallel |
| Length | 13.97mm |
| Lifecycle Status | Obsolete |
| Max Frequency | 15.3MHz |
| Max Operating Temperature | 70°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Number of Circuits | 1 |
| Number of Terminals | 32 |
| Operating Supply Voltage | 5V |
| RoHS | Non-Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Width | 11.43mm |
Compliance
RoHS : Unconfirmed
Images
Rochester Electronics
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 17
|
$ | 5.75 | 5.46 | 4.89 | 4.60 | ||||
