20021121-00010C4LF - Amphenol Communications Solutions
Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Top Entry SMD Minitek127® T/R
Technical Details
| China RoHS | Compliant |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Gender | Male |
| Contact Material | Gold, Nickel |
| Contact Mating Length | 3.048mm |
| Contact Plating | Gold |
| Contact Resistance | 30mΩ |
| Current Rating | 1A |
| Depth | 3.4mm |
| Dielectric Material | Polyethylene |
| Gender | Male |
| Height | 4.8mm |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Insulation Resistance | 100MΩ |
| Length | 6.35mm |
| Lifecycle Status | Production |
| Mating Post Length | 3.05mm |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 125V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 10 |
| Number of Pins | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Force | 2.1406N |
| Pitch | 1.27mm |
| Plating Thickness | 254nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 3.9mm |
| Stack Height | 3mm |
| Terminal Pitch | 1.27mm |
| Termination | Solder |
| Voltage Rating | 125V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

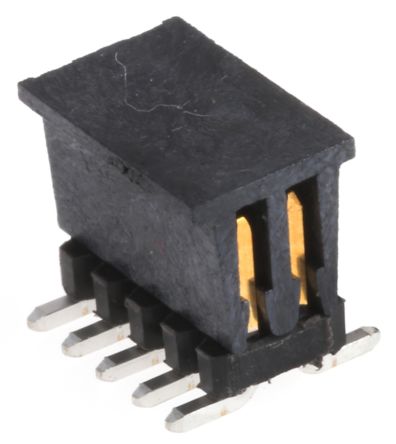

Images
