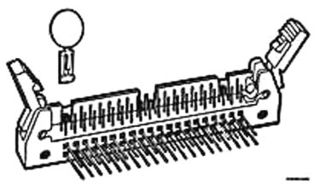

65823085LF - Amphenol Communications Solutions
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tray
Technical Details
| China RoHS | Compliant |
| Color | Blue |
| Connector Type | Male Pin |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Mating Length | 5.842mm |
| Contact Plating | Gold |
| Current Rating | 3A |
| Depth | 17.27mm |
| Fastening Type | Latch |
| Gender | Male |
| Housing Color | Blue |
| Housing Material | Polyester |
| Insulation Resistance | 100GΩ |
| Lead Length | 2.67mm |
| Length | 70.1mm |
| Lifecycle Status | Production |
| Mating Post Length | 5.84mm |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 1kV |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 40 |
| Number of Pins | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Pitch | 2.54mm |
| Plating Thickness | 762nm |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Row Spacing | 2.54mm |
| Terminal Pitch | 2.54mm |
| Termination | Solder |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
