132203-18 - Amphenol RF

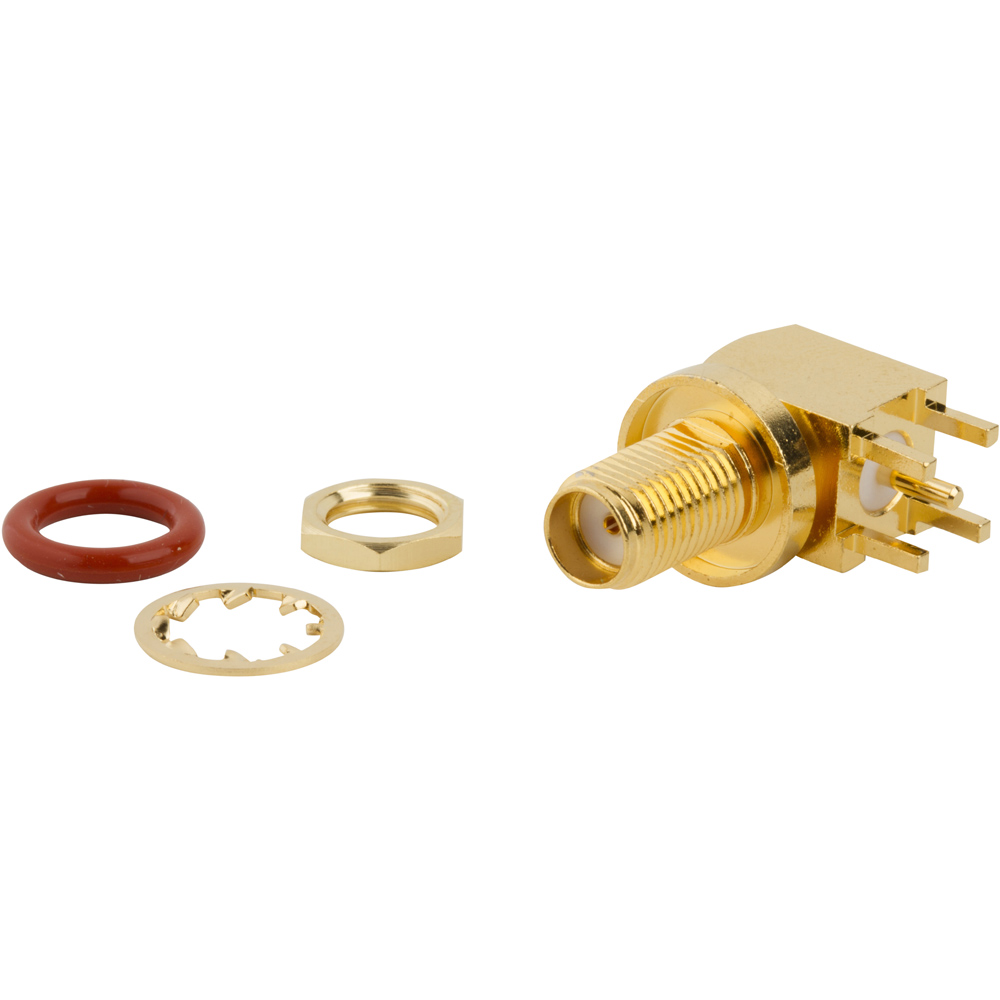

Amphenol RF 132203-18 RF SMA Connector, Right Angle, Jack, PCB Through Hole, Bulkhead, 50 Ohm
Technical Details
| Body Material | Brass |
| Body Plating | Gold |
| Case/Package | SMA |
| Connector Type | SMA, Socket |
| Contact Material | Gold |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fastening Type | Threaded |
| Frequency | 12.4GHz |
| Housing Color | Gold |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.10 |
| Impedance | 50Ω |
| Introduction Date | 2009-11-26 |
| Lifecycle Status | Production |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Bulkhead, Panel, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 1 |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP67, Waterproof |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Shell Material | Brass |
| Termination | Solder |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

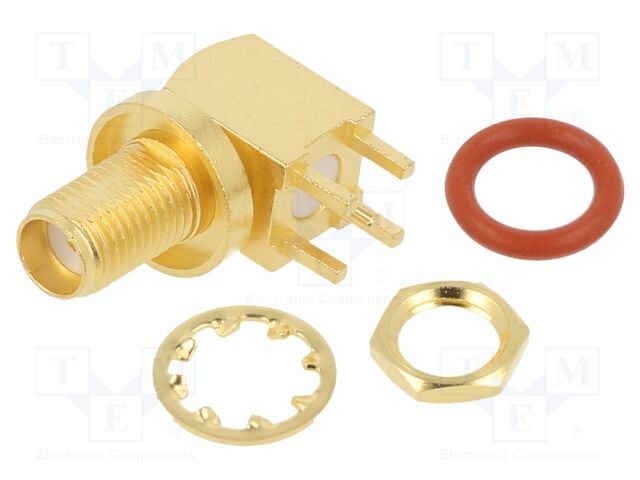

Images
TME
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Amphenol RF | Unknown | ||
| Amphenol RF | Unknown | ||
| Amphenol RF | Production | ||
| Amphenol RF | Production | ||
| Amphenol | Production | ||
| Amphenol RF | Production | ||
| Samtec | Production | ||
| Amphenol RF | Production | ||
| Molex | Production | ||
| Amphenol RF | Unknown |
