172102H243 - Amphenol RF
connector, rf coaxial, n str crimp plug, captive cont, for b9913, LMR400 cable, 50 ohm
Technical Details
| Body Material | Brass |
| Body Plating | Tin |
| Connector Type | Coaxial, Male Pin, Plug |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Resistance | 1mΩ |
| Dielectric Material | PTFE |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fastening Type | Threaded |
| Frequency | 11GHz |
| Gender | Male |
| Housing Color | Silver |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.10 |
| Impedance | 50Ω |
| Insertion Loss (dB) | 0.15dB |
| Inside Diameter | 7.39mm |
| Insulation Material | Teflon |
| Insulation Resistance | 5GΩ |
| Introduction Date | 2001-11-27 |
| Lead Free | Lead Free |
| Length | 29.8mm |
| Lifecycle Status | Production |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Cable, Free Hanging |
| Number of Pins | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Termination | Crimp |
| Voltage Rating | 1.5kV |
| Weight | 36.080013g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

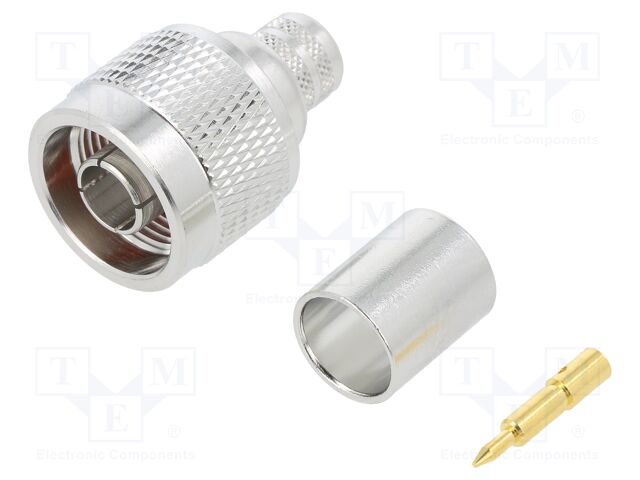

Images
