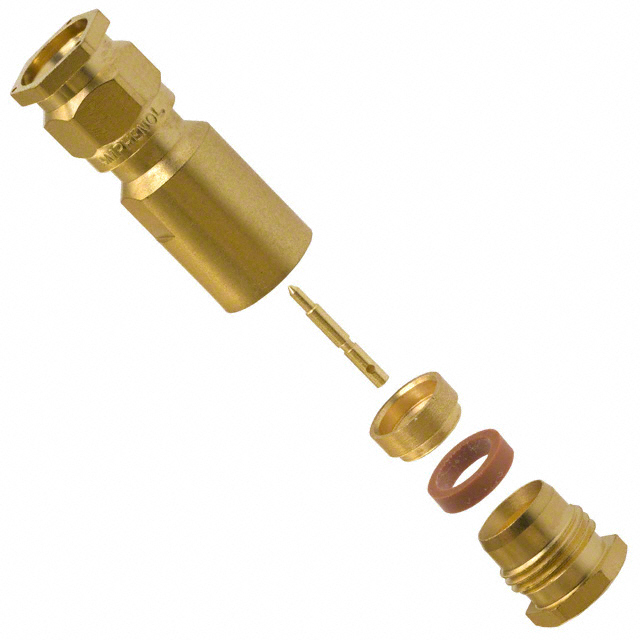

901-103 - Amphenol RF
RF SMA Connector, 1 Contact(s), Male, Cable Mount, Clamp Solder Terminal, Locking, Plug
Technical Details
| Body Material | Brass, Copper |
| Body Plating | Gold |
| Case/Package | SMA |
| Connector Type | Cable, Coaxial, Male Pin, Plug, SMA |
| Contact Gender | Male |
| Contact Material | Copper |
| Contact Plating | Gold |
| Contact Resistance | 2mΩ |
| Depth | 7.92mm |
| Dielectric Material | PTFE |
| Fastening Type | Threaded |
| Frequency | 12.4GHz |
| Gender | Male |
| Housing Color | Gold |
| Impedance | 50Ω |
| Insertion Loss (dB) | 0.11dB |
| Insulation Material | Tetrafluoroethylene |
| Insulation Resistance | 5GΩ |
| Lead Free | Lead Free |
| Length | 24.6mm |
| Lifecycle Status | Production |
| Max Frequency | 12.4GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Cable, Free Hanging |
| Number of Pins | 1 |
| Number of Ports | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Gold |
| Polarity | Standard |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Shell Material | Steel |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
RoHS : Unconfirmed
REACH SVHC : Unknown
Images
JRH Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Amphenol RF | Production | ||
| Molex | Production | ||
| Amphenol RF | Production | ||
| L-com | Production | ||
| Radiall | Production | ||
| Samtec | Production | ||
| Samtec | Production | ||
| Amphenol RF | Production | ||
| Samtec | Production | ||
| Radiall | Production |
