Connectors > RF / Coaxial Connectors

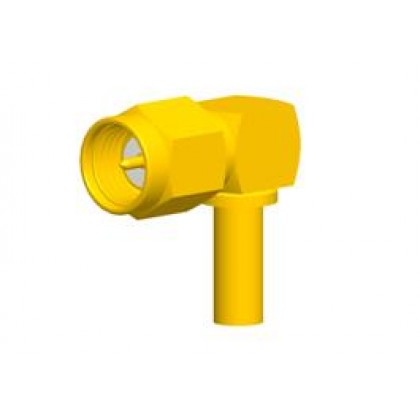

901-9531-3 - Amphenol RF

connector, rf coaxial, sma rt angle plug, crimp/solder, rg174, 187, 188, 316, gold fin

Technical Details

Body Material	Stainless Steel
Body Plating	Gold
Case/Package	SMA
Connector Type	Cable, Male Pin, Plug, SMA
Contact Gender	Male
Contact Material	Copper
Contact Plating	Gold
Contact Resistance	2mΩ
Fastening Type	Threaded
Frequency	12.4GHz
Gender	Male
Housing Color	Gold
Impedance	50Ω
Insertion Loss (dB)	0.11dB
Insulation Material	Tetrafluoroethylene
Insulation Resistance	5GΩ
Lead Free	Lead Free
Length	17.3mm
Lifecycle Status	Production
Max Frequency	18GHz
Max Operating Temperature	165°C
Min Operating Temperature	-65°C
Mount	Cable, Free Hanging
Number of Pins	1
Number of Ports	1
Orientation	Right Angle
Packaging	Bulk
Plating	Gold
Polarity	Standard
REACH SVHC	Yes
RoHS	Compliant
Shell Material	Stainless Steel
Termination	Solder
Voltage Rating	375V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Amphenol RF 901-9531-3 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Powell Electronics

Microwave Components, LLC

Lifecycle Status Indicator

Production

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
TE Connectivity	228583-1	Production
Amphenol RF	901-368-12	Production
TE Connectivity / AMP	1-225609-0	Obsolete
Multicomp	MC23561	Production
Radiall	9043-1523-003	Production
Amphenol RF	901-9531-12	Production
Kings Electronics	876-2-1	Obsolete
TE Connectivity	1052176-1	Production
Samtec	SMA-P-C-H-RA-CA1	Production
Amphenol RF	901-148-15	Production

See more alternatives See less alternatives
