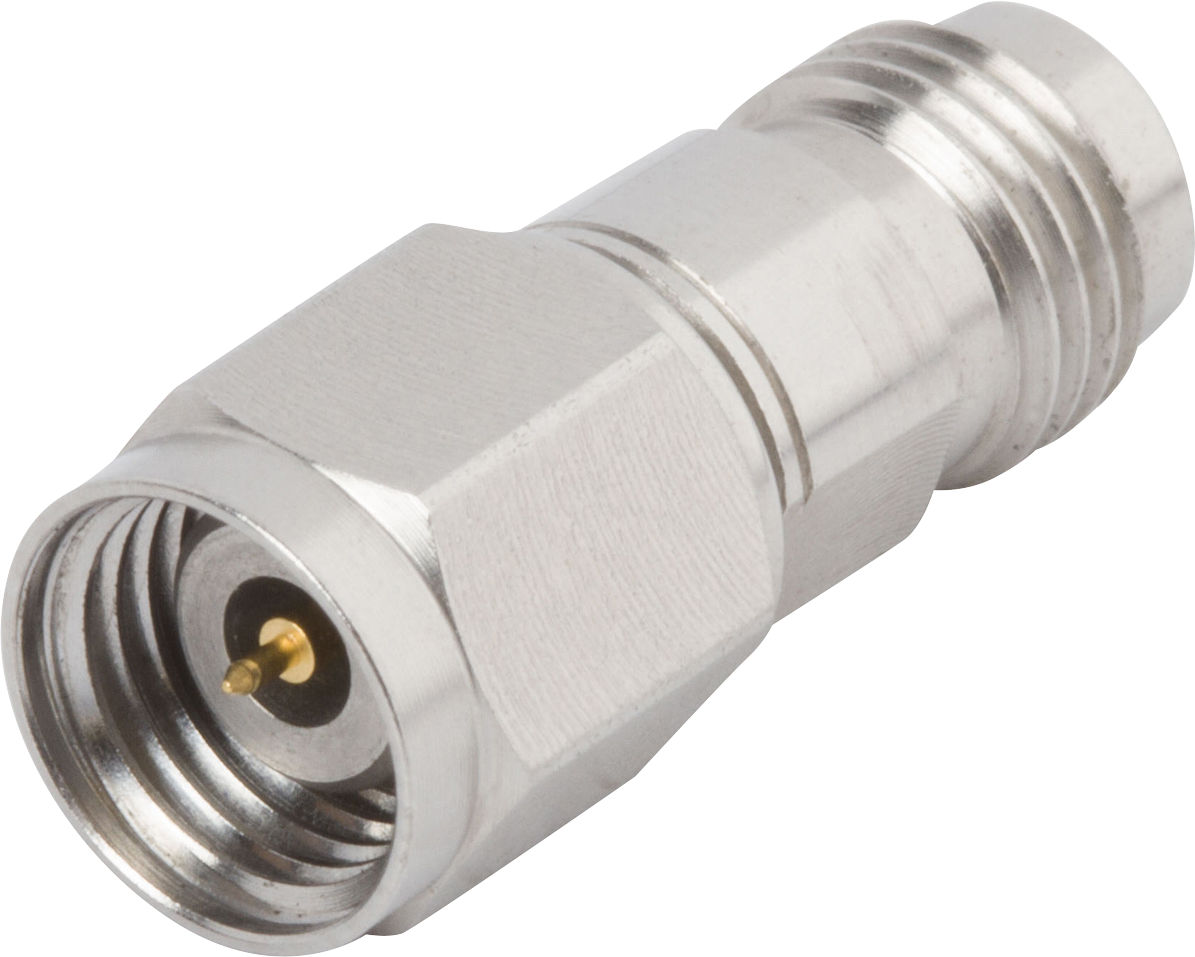

SF1133-6004 - Amphenol SV Microwave
RF Adapters - Between Series 1.85mm M to 2.4mm F Adapt
Technical Details
| Body Material | Stainless Steel |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | Polyetherimide |
| Frequency | 50GHz |
| Gender Type A | Male |
| Gender Type B | Female |
| Impedance | 50Ω |
| Insertion Loss (dB) | 0.4dB |
| Lifecycle Status | Production |
| Max Frequency | 50GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Orientation | Straight |
| Plating | Passivated |
| REACH SVHC | No |
| RoHS | Compliant |
| Shell Material | Stainless Steel |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
