LTC3447EDD - Analog Devices / Linear Technology
Switching Regulator, Current-mode, 0.8A, 1300kHz Switching Freq-Max, CMOS, PDSO10
Technical Details
| Case/Package | DFN |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 800µm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2005-05-20 |
| Lead Free | Contains Lead |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 70°C |
| Max Output Current | 800mA |
| Max Switching Frequency | 1.3MHz |
| Min Input Voltage | 2.5V |
| Min Operating Temperature | 0°C |
| Nominal Input Voltage | 3.6V |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Number of Pins | 10 |
| Number of Terminals | 10 |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 2.05V |
| Quiescent Current | 33µA |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Switching Frequency | 1MHz |
| Synchronous Rectifier | Yes |
| Temperature Grade | Commercial |
| Terminal Pitch | 500µm |
| Topology | Buck |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

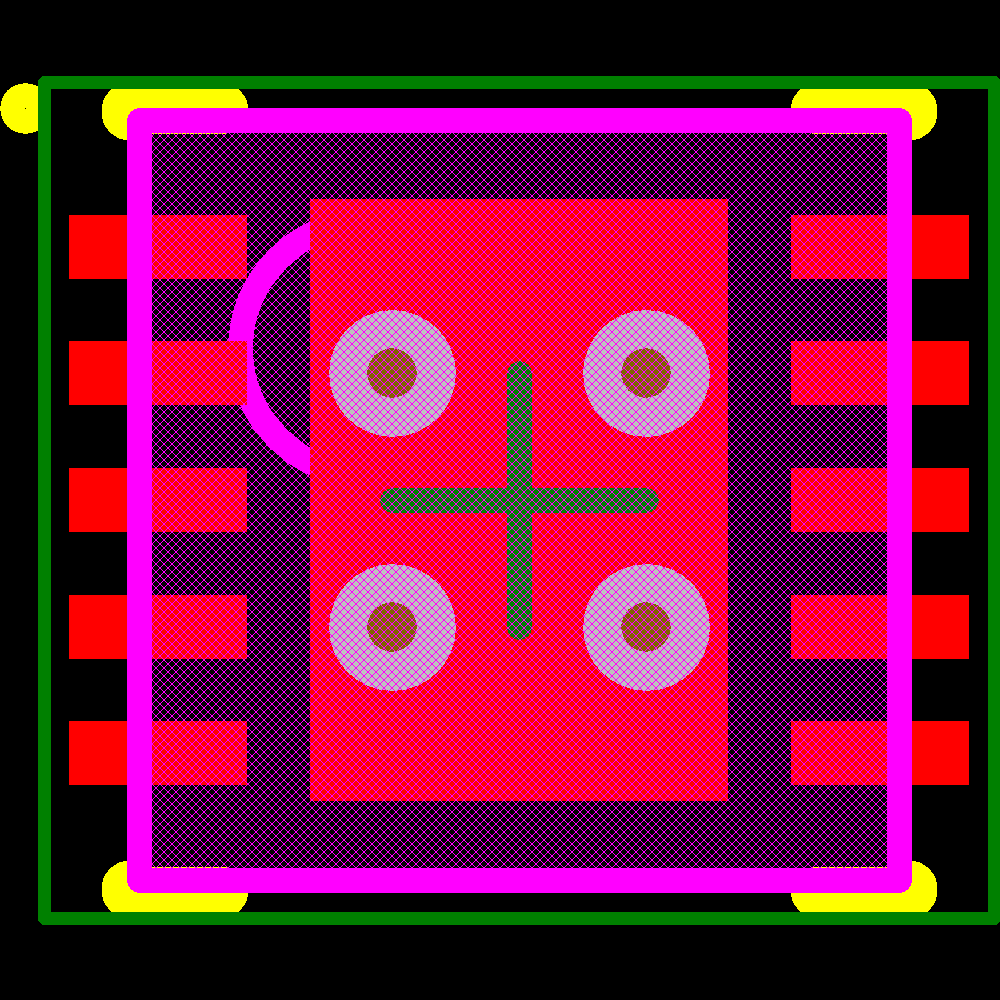

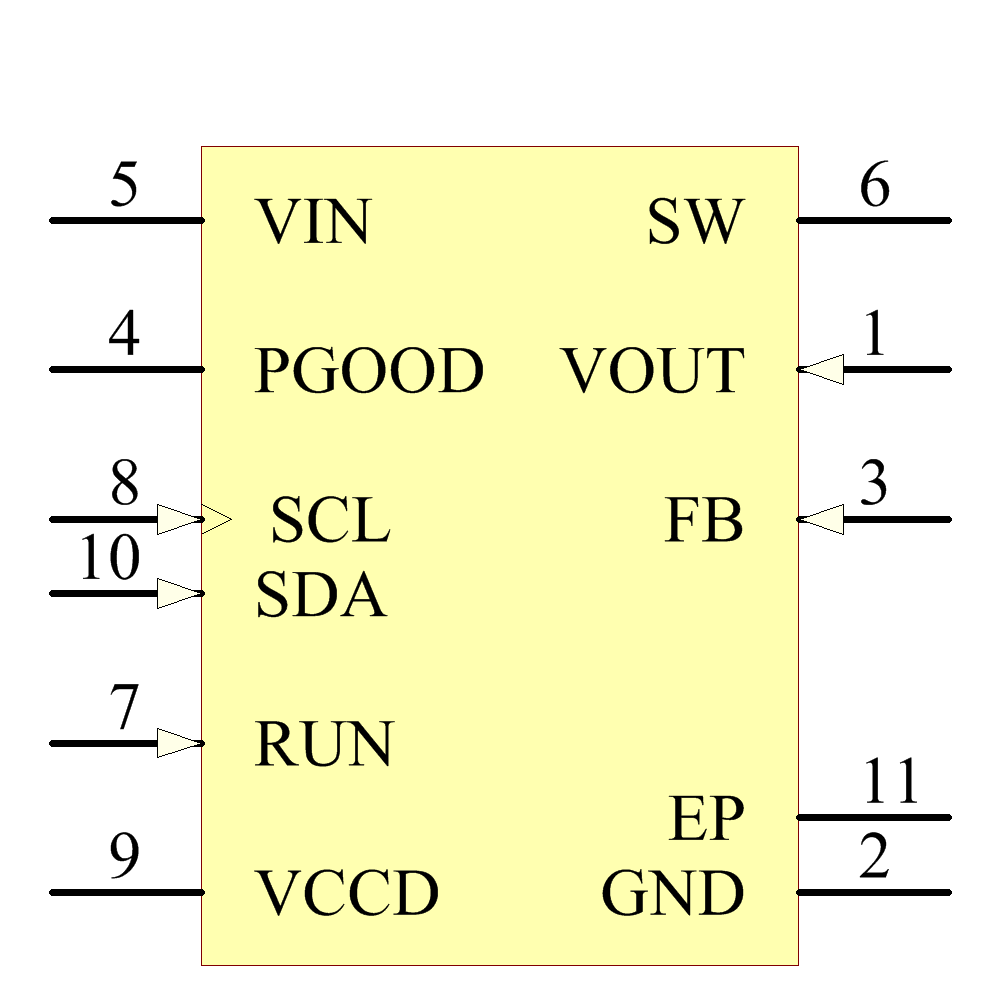

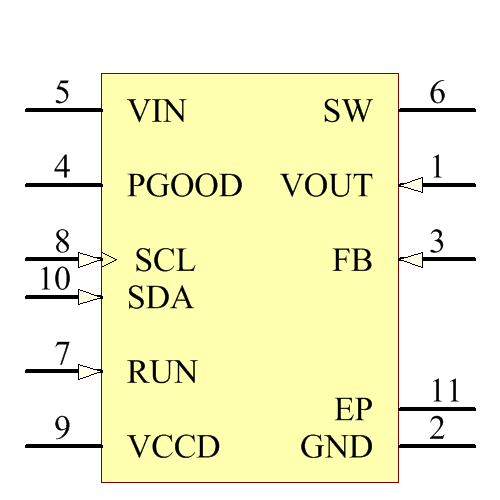

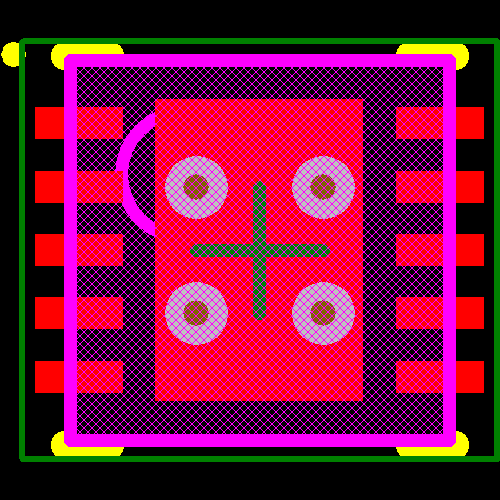

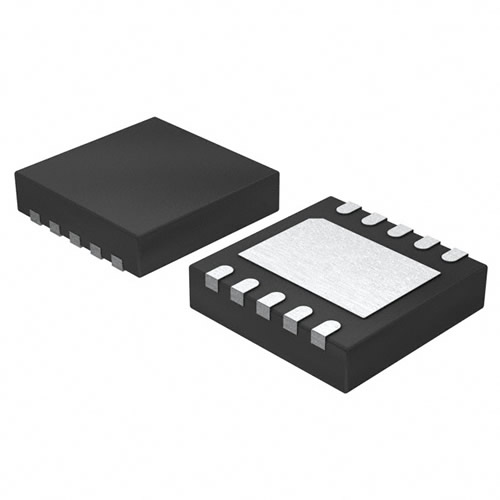

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Unknown | ||
| Monolithic Power Systems | Production | ||
| Semtech | Obsolete | ||
| Analog Devices | Production | ||
| STMicroelectronics | Obsolete | ||
| Diodes Inc. | Obsolete |
