LTC3728EG#TR - Analog Devices / Linear Technology
Dual Switching Controller, Current-mode, 3A, 590kHz Switching Freq-Max, CMOS, PDSO28
Technical Details
| Case/Package | SSOP |
| Duty Cycle | 99% |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2001-05-25 |
| Lead Free | Contains Lead |
| Length | 10.2mm |
| Max Frequency | 590kHz |
| Max Input Voltage | 36V |
| Max Operating Temperature | 85°C |
| Max Output Current | 3A |
| Max Switching Frequency | 590kHz |
| Min Input Voltage | 3.5V |
| Min Operating Temperature | 0°C |
| Nominal Input Voltage | 15V |
| Nominal Output Voltage | 3.35V |
| Number of Circuits | 1 |
| Number of Outputs | 2 |
| Number of Pins | 28 |
| Number of Terminals | 28 |
| Output Current | 25A |
| Output Voltage | 5.5V |
| Packaging | Tape and Reel |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Terminal Pitch | 650µm |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

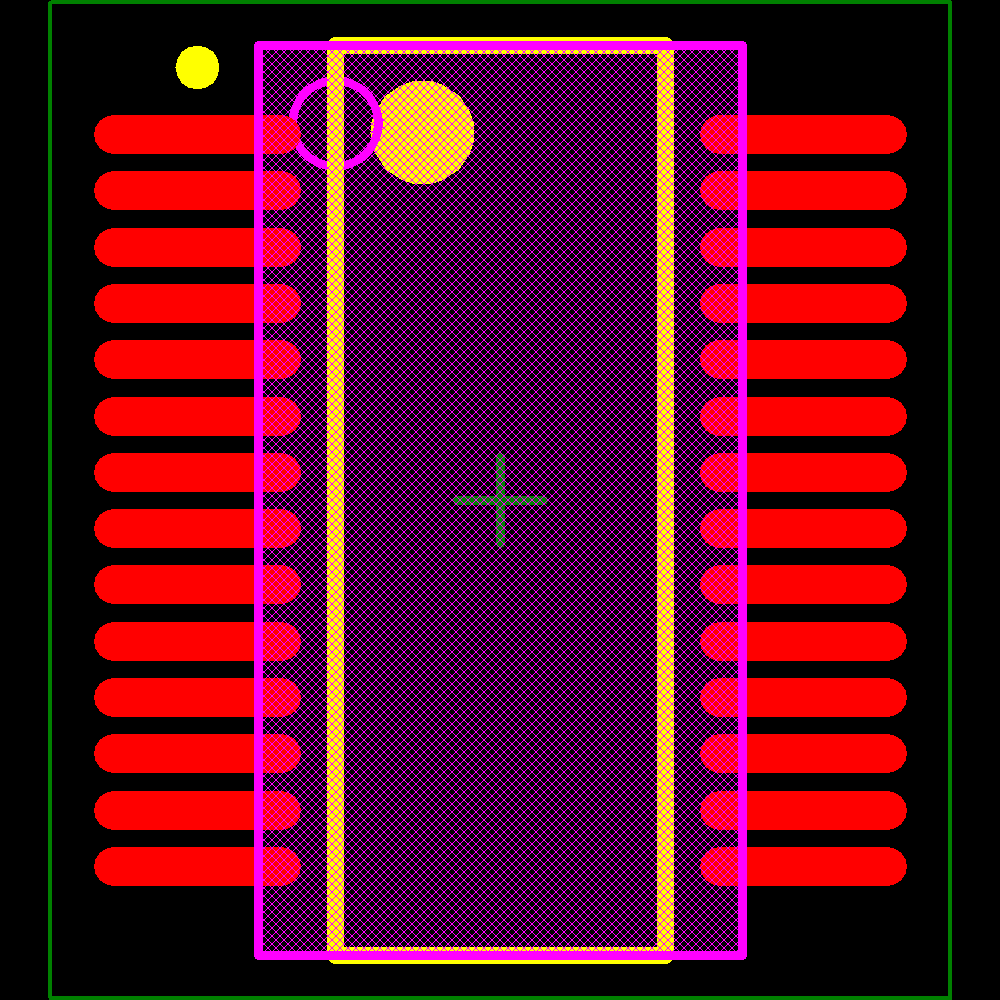

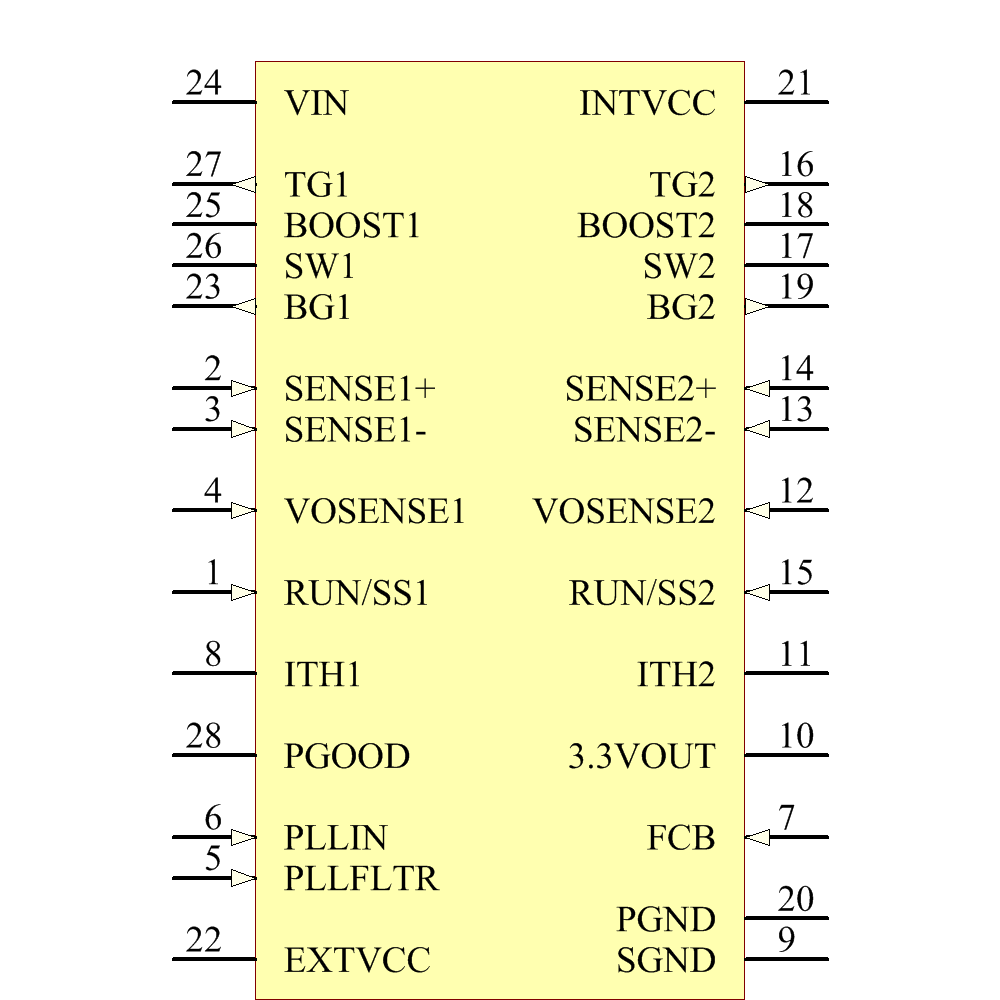

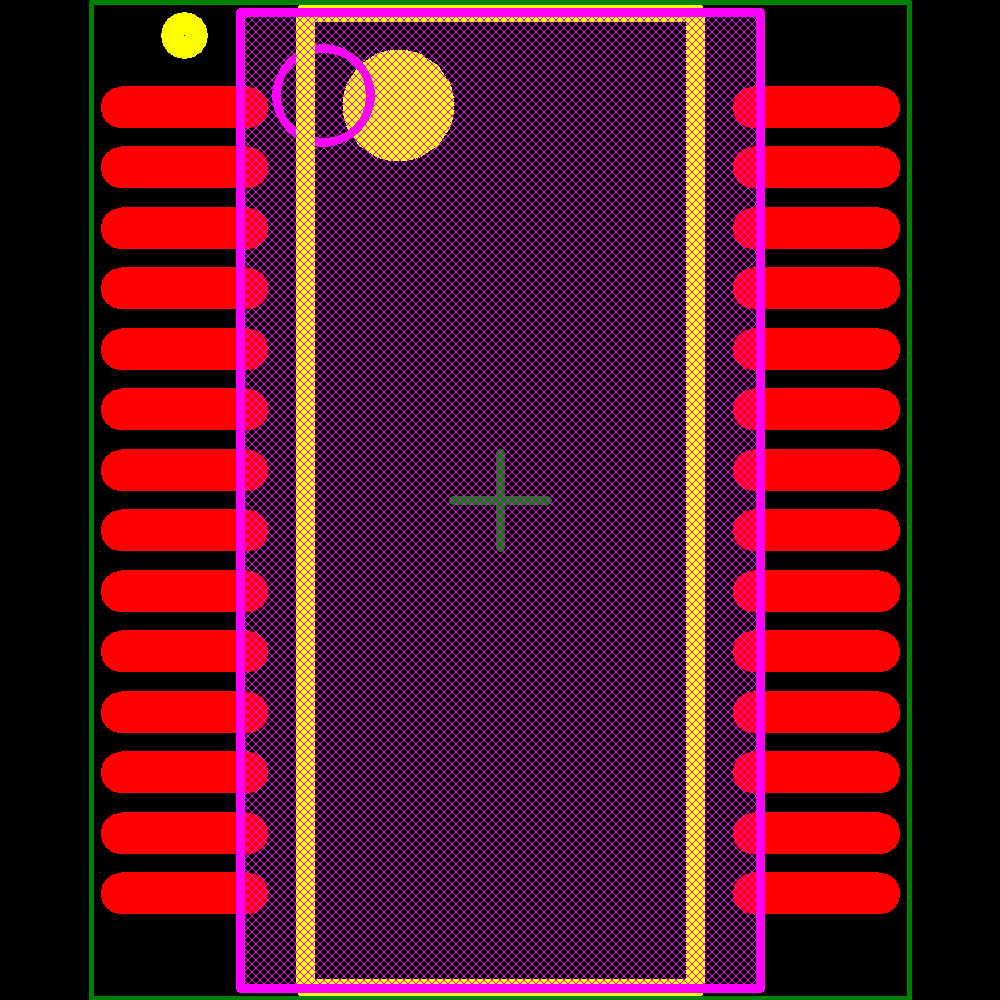

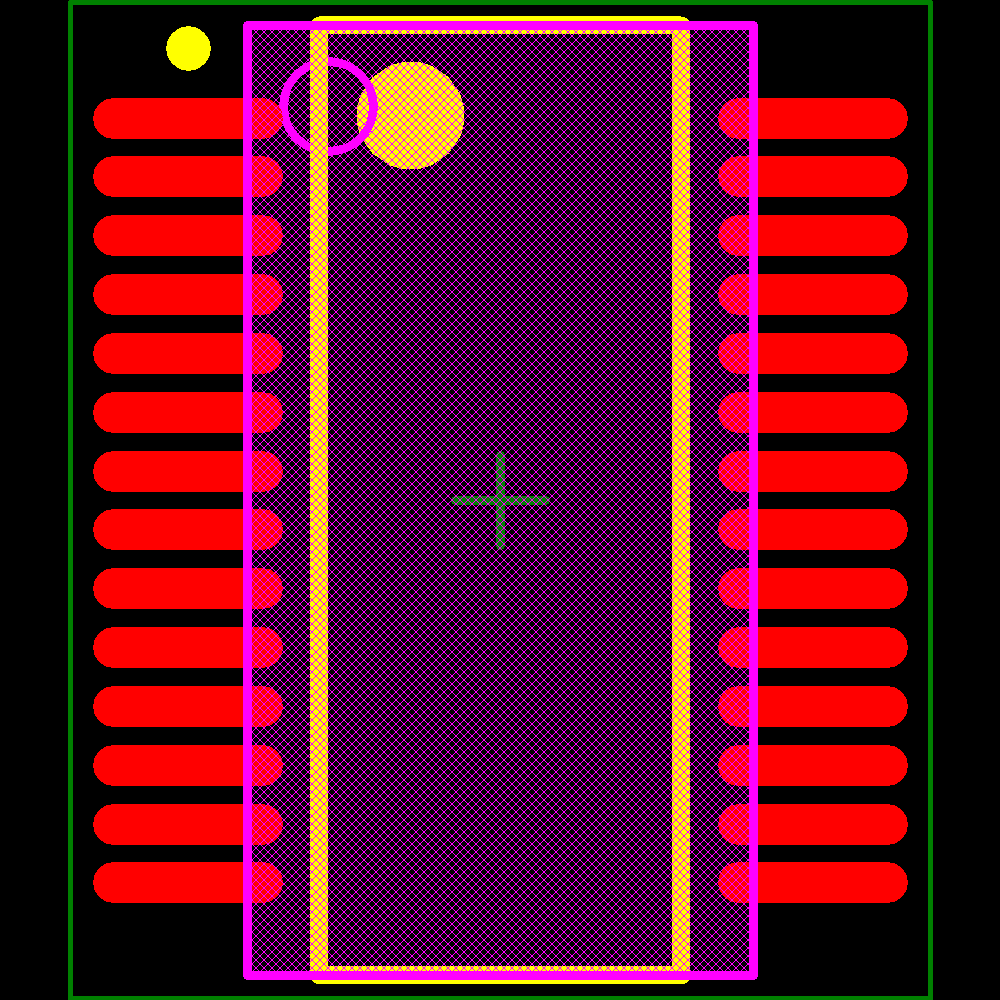

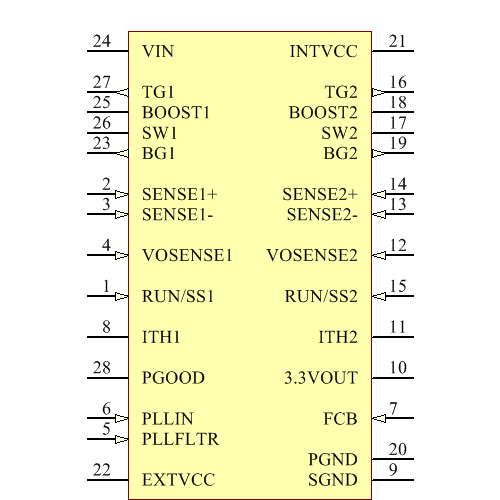

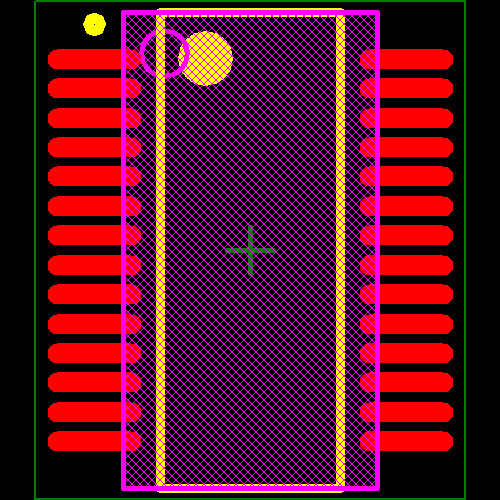

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Obsolete | ||
| Vishay | Obsolete | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Unknown | ||
| Analog Devices | EOL |
