LTC4441EMSETR - Analog Devices / Linear Technology
LTC4441 - N-Channel MOSFET Gate Driver
Technical Details
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 8ns |
| Height - Seated (Max) | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2004-11-03 |
| Length | 3mm |
| Max Operating Temperature | 70°C |
| Max Output Current | 6A |
| Max Supply Voltage | 25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 5V |
| Number of Circuits | 1 |
| Number of Drivers | 1 |
| Number of Pins | 10 |
| Number of Terminals | 10 |
| Operating Supply Voltage | 7.5V |
| Packaging | Tape and Reel |
| Propagation Delay | 36ns |
| REACH SVHC | No |
| Rise Time | 13ns |
| RoHS | Non-Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 500µm |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

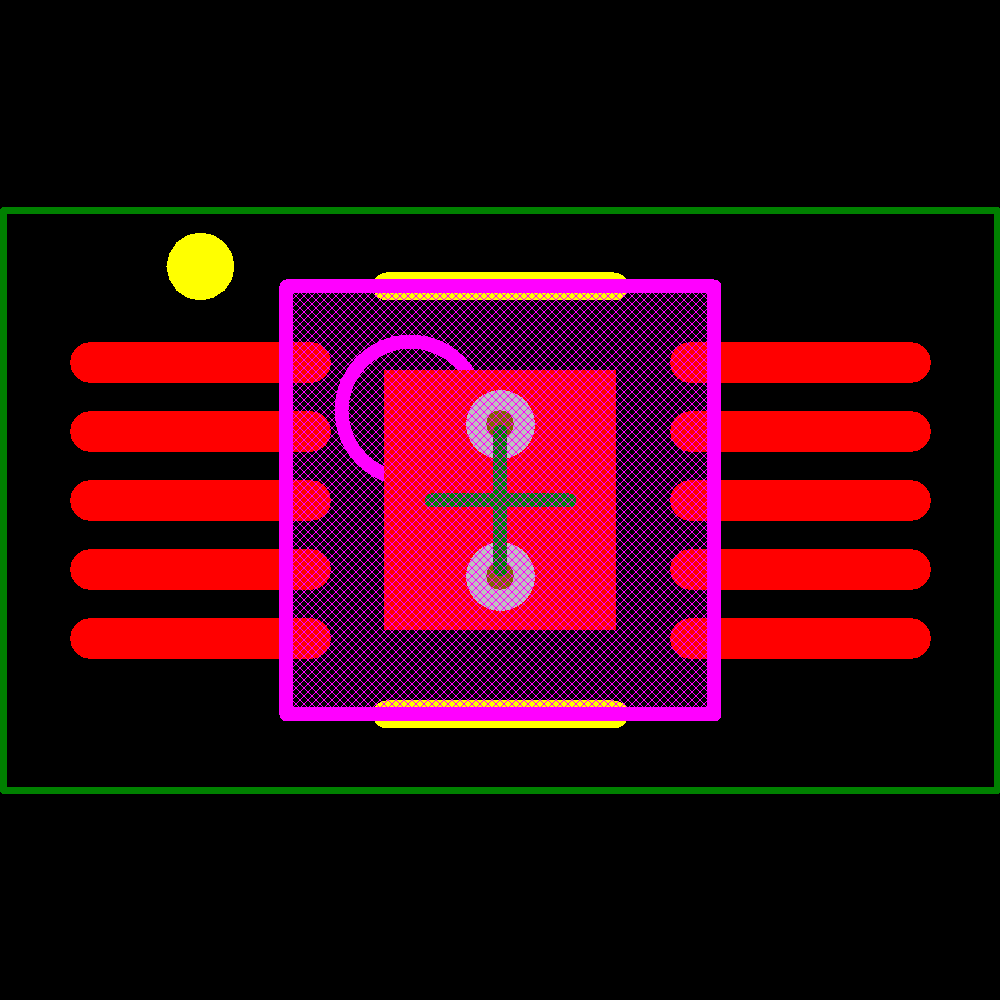

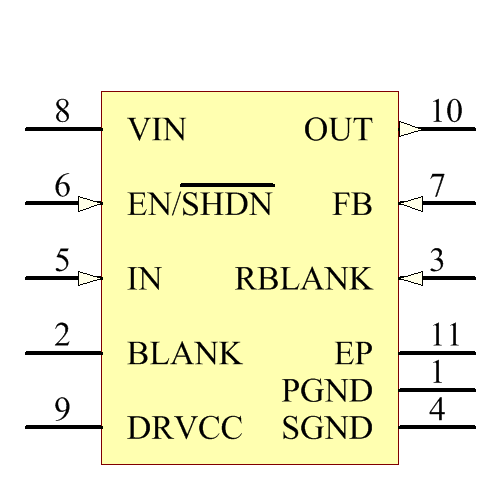

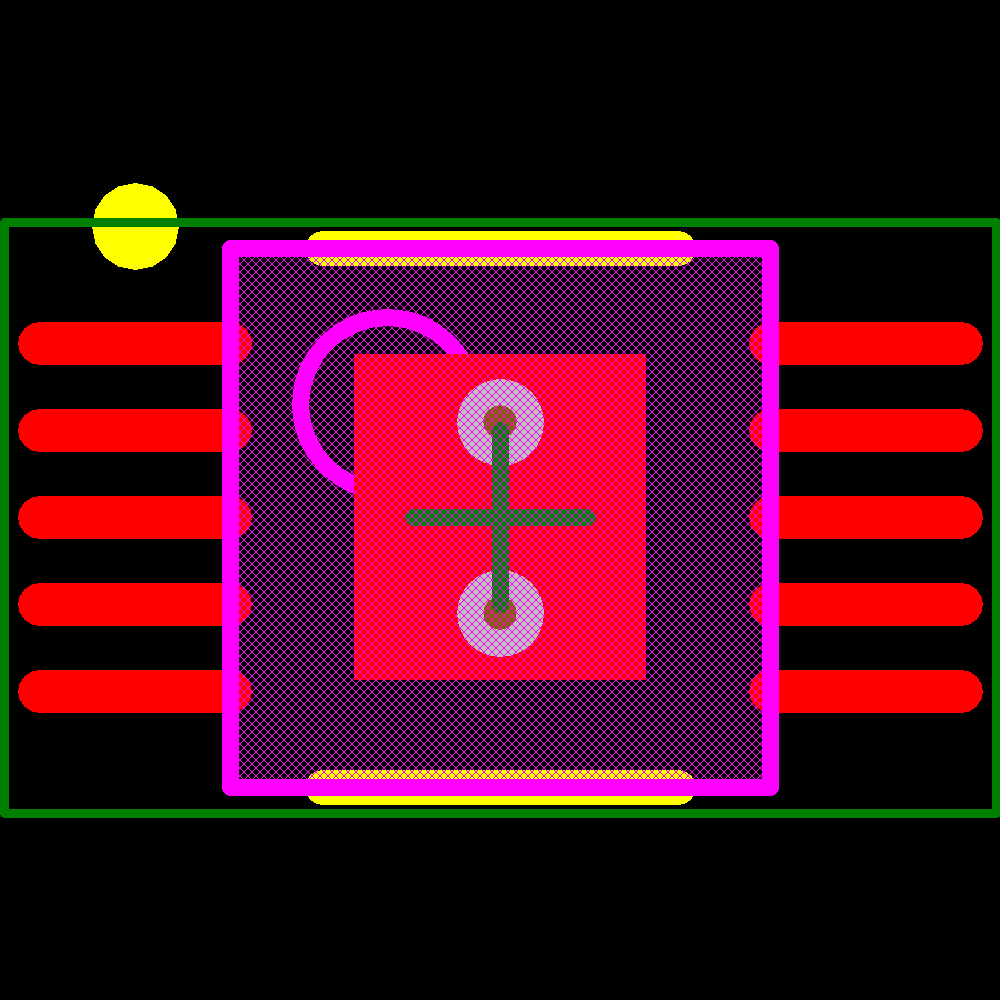

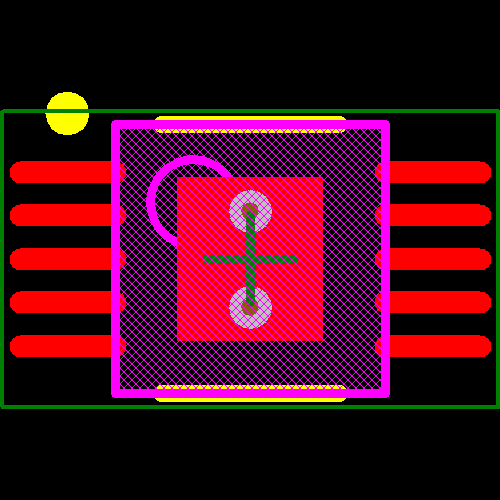

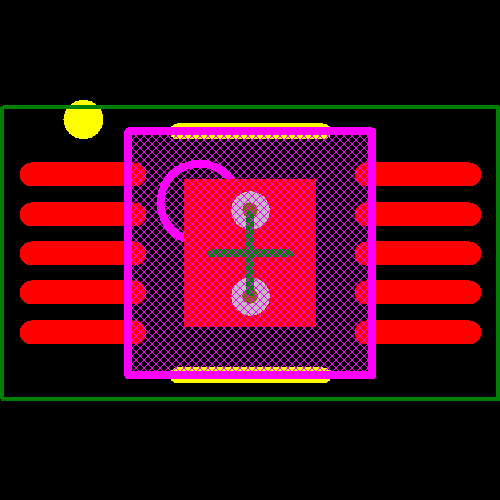

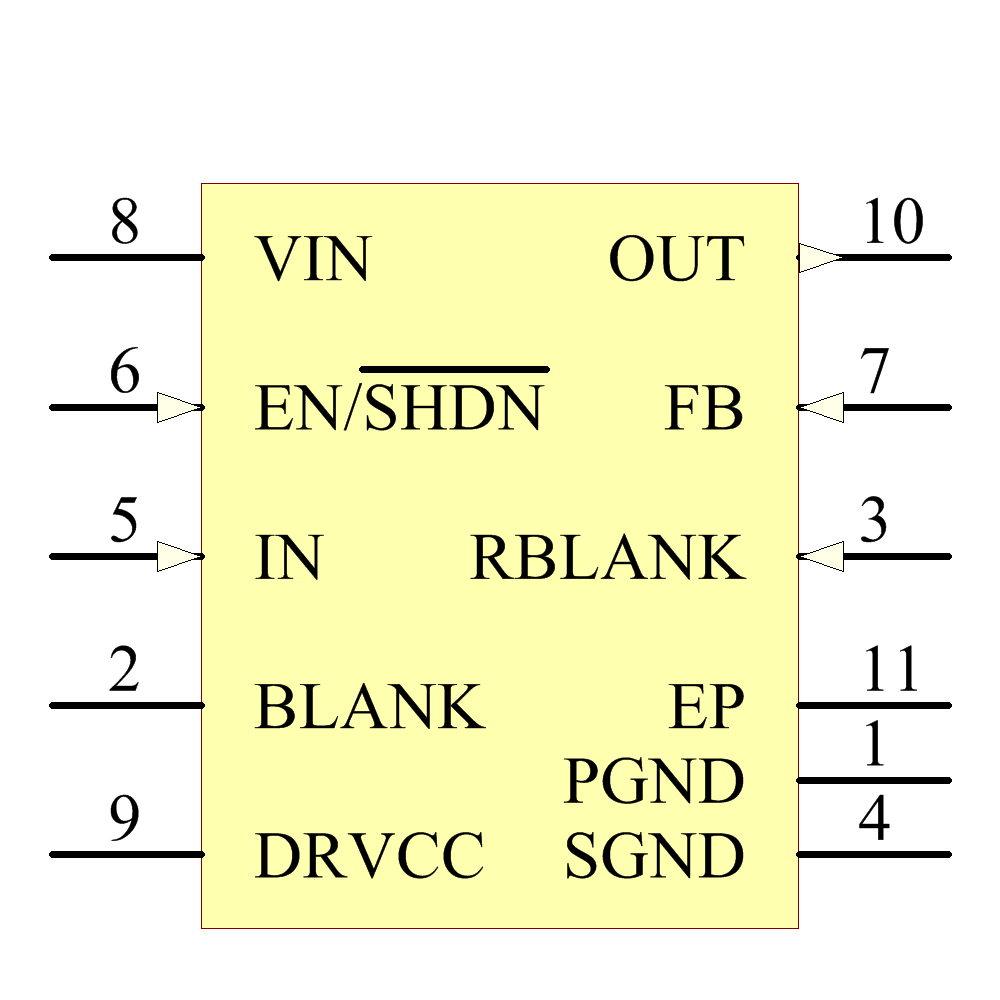

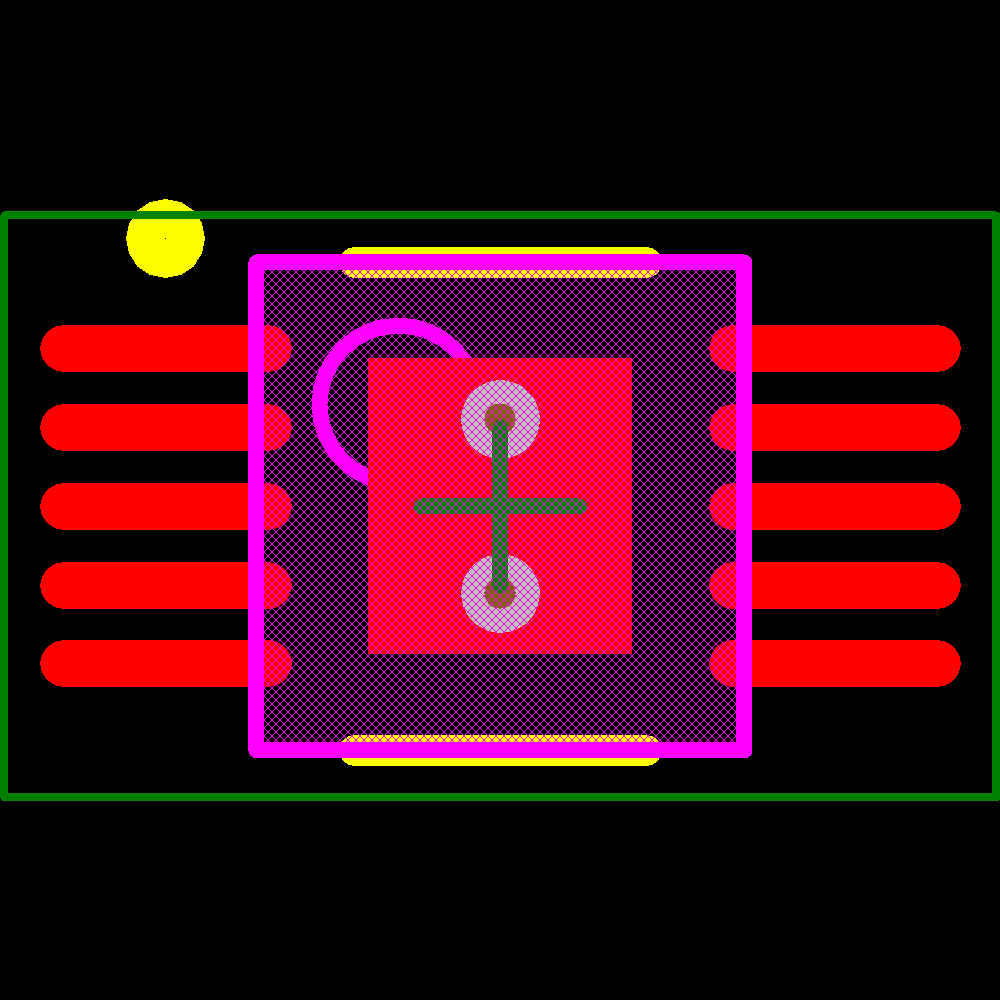

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices / Linear Technology | Unknown |
