ADG1436YCPZ-REEL7 - Analog Devices
IC SWITCH SPDTX2 1.8OHM 16LFCSP 2 Circuit IC Switch 2: 1 1.8Ohm 16-LFCSP-VQ (4x4)
Technical Details
| -3db Bandwidth | 110MHz |
| Bandwidth | 110MHz |
| Case/Package | VQFN |
| Contact Plating | Tin |
| Drain to Source Resistance | 1.8Ω |
| Dual Supply Voltage | 15V |
| High Level Output Current | 300mA |
| Insertion Loss (dB) | -0.18dB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | PRODUCTION |
| Max Dual Supply Voltage | 16.5V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 30µW |
| Max Supply Current | 285µA |
| Max Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 4.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Number of Pins | 16 |
| Operating Supply Voltage | 12V |
| Packaging | Cut Tape |
| Polarity | Non-Inverting |
| Power Dissipation | 30µW |
| Radiation Hardening | No |
| REACH SVHC | No |
| Resistance | 1.8Ω |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Supply Type | Dual, Single |
| Test Frequency | 100kHz |
| Turn-Off Delay Time | 130ns |
| Turn-On Delay Time | 120ns |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

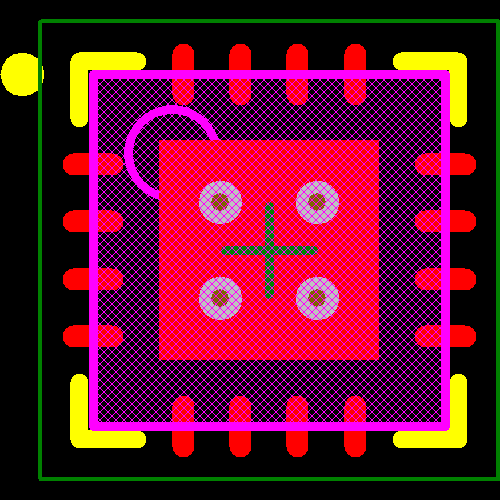

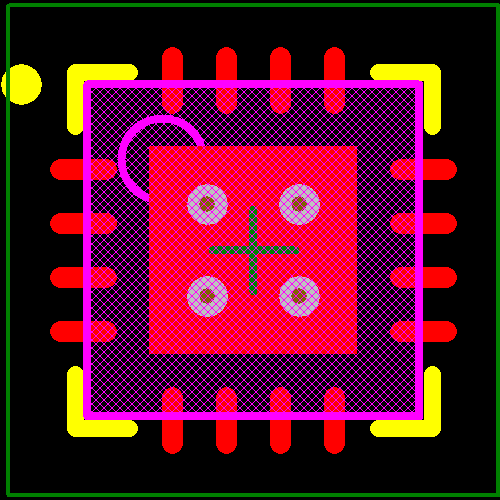

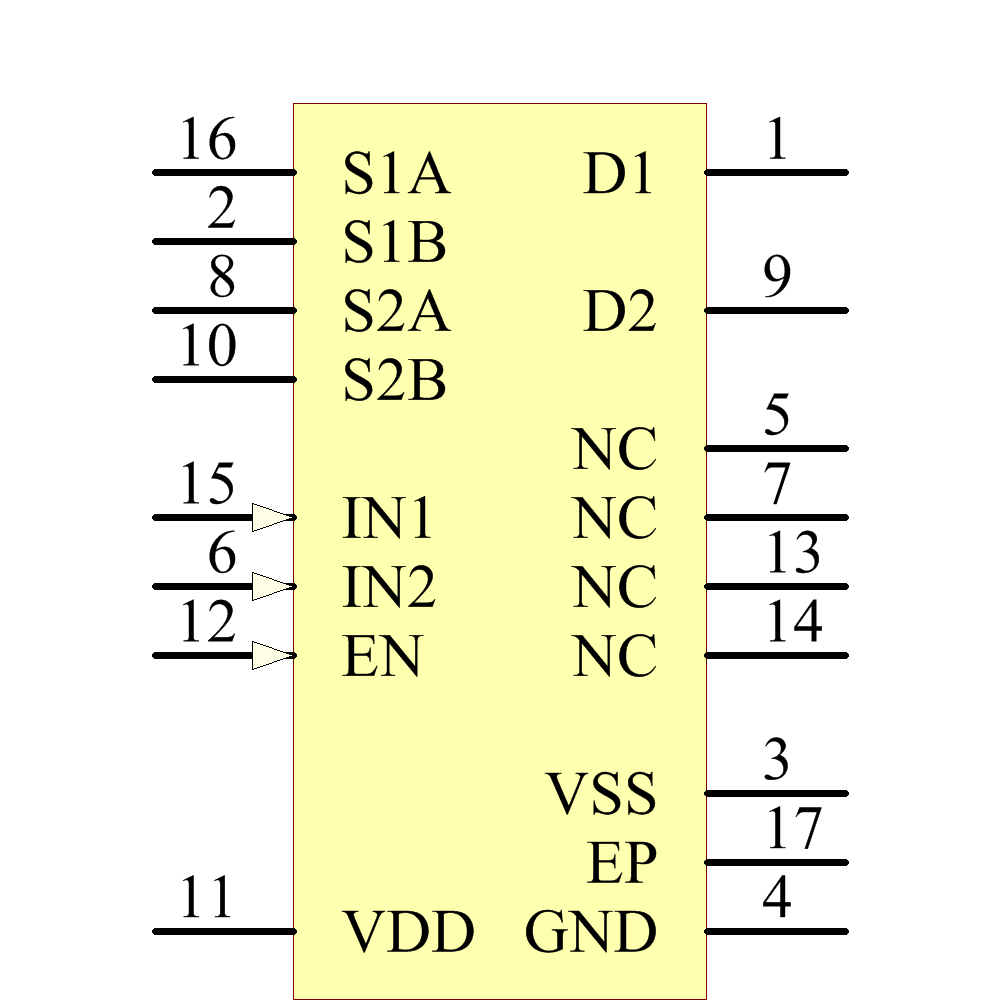

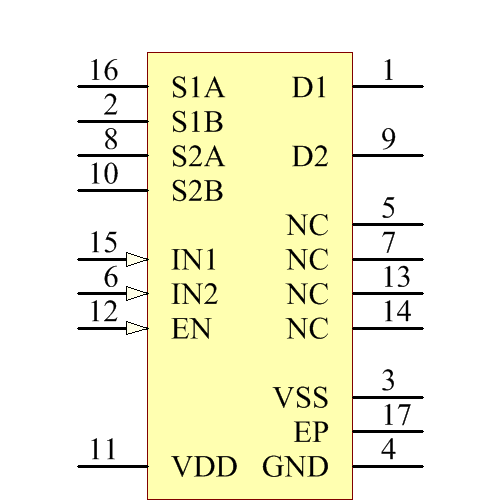

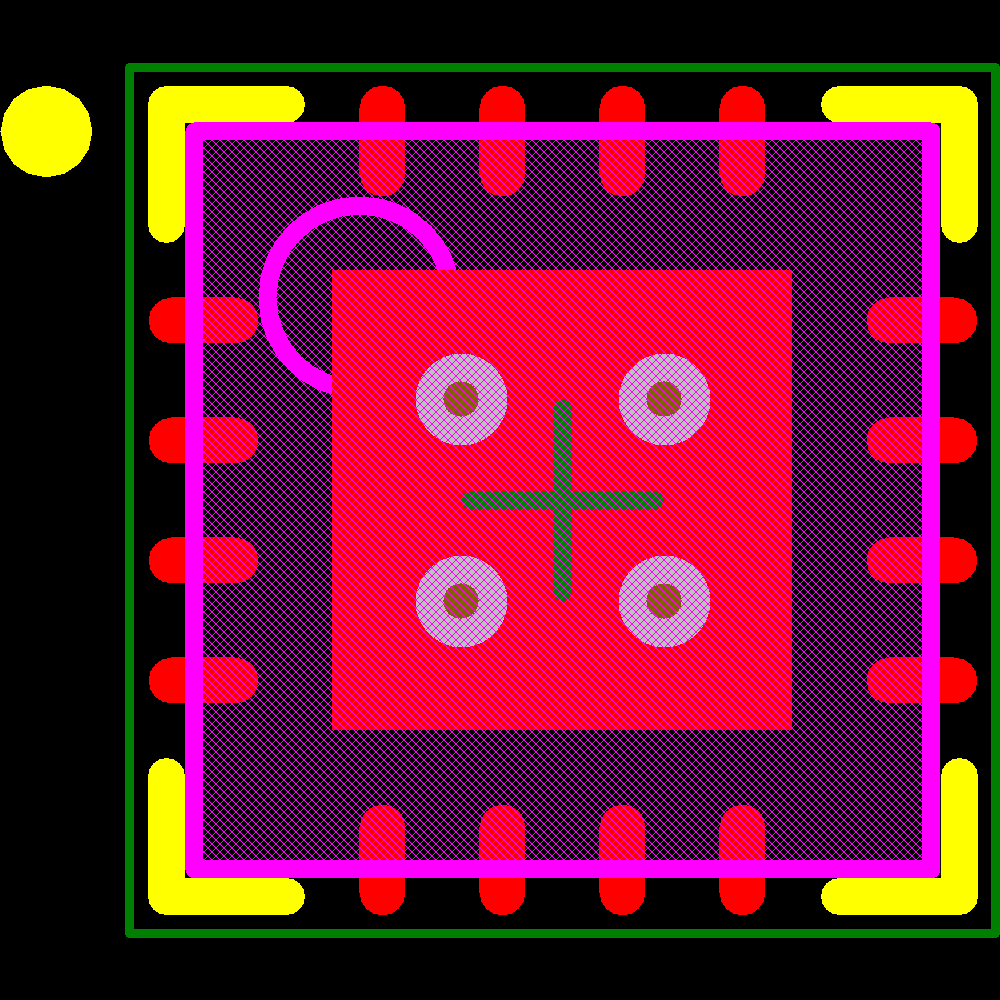

Images
