ADG407BP - Analog Devices
LC2MOS 8-/16-Channel High Performance Analog Multiplexers | IC MULTIPLEXER DUAL 8X1 28PLCC
Technical Details
| Case/Package | P |
| Dual Supply Voltage | 15V |
| Height | 3.94mm |
| High Level Output Current | 20mA |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 11.58mm |
| Max Dual Supply Voltage | 22V |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 3.1mW |
| Max Supply Current | 200µA |
| Max Supply Voltage | 25V |
| Min Operating Temperature | -40°C |
| Number of Circuits | 2 |
| Number of Inputs | 16 |
| Number of Outputs | 2 |
| Number of Pins | 28 |
| Operating Supply Current | 100µA |
| Operating Supply Voltage | 12V |
| Packaging | Bulk |
| Power Dissipation | 3.1mW |
| Propagation Delay | 150ns |
| Radiation Hardening | No |
| Resistance | 80Ω |
| Turn-Off Delay Time | 110ns |
| Turn-On Delay Time | 240ns |
| Width | 11.58mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

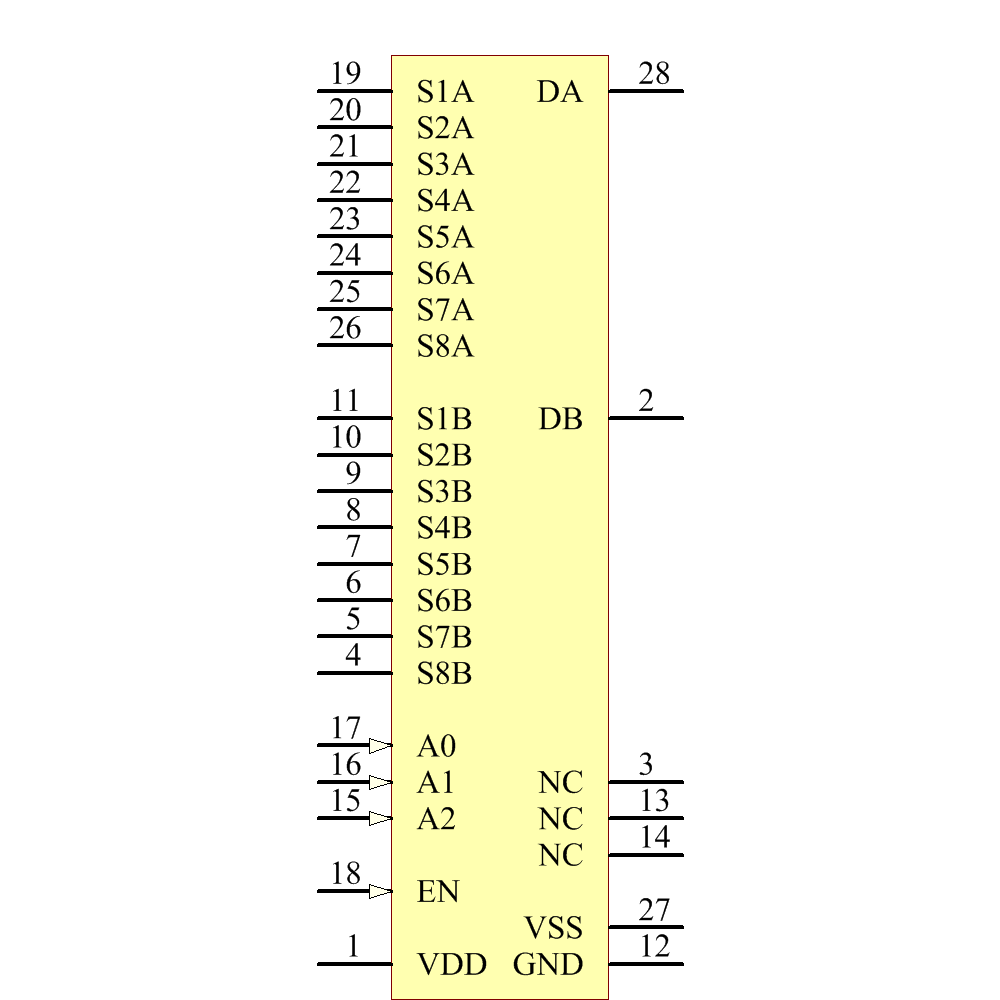

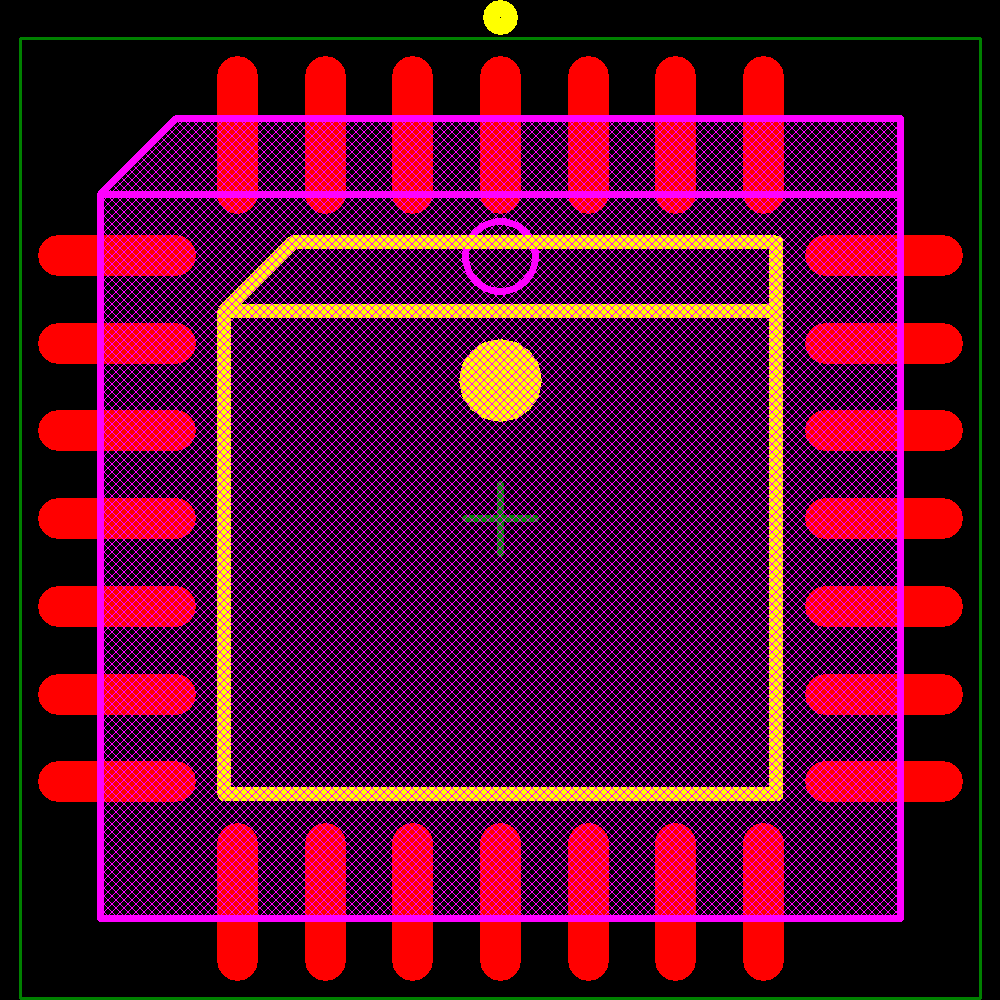

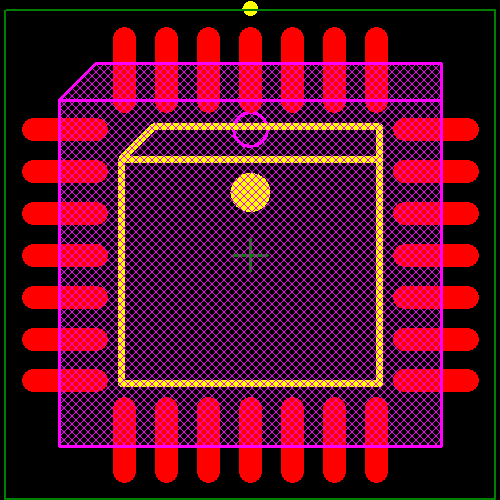

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Unknown | ||
| Analog Devices | Production | ||
| Analog Devices | Production | ||
| Renesas | Obsolete | ||
| Renesas | Obsolete | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Unknown | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 1621
|
$ | 10.43 | 9.91 | 8.87 | 8.34 | ||||
